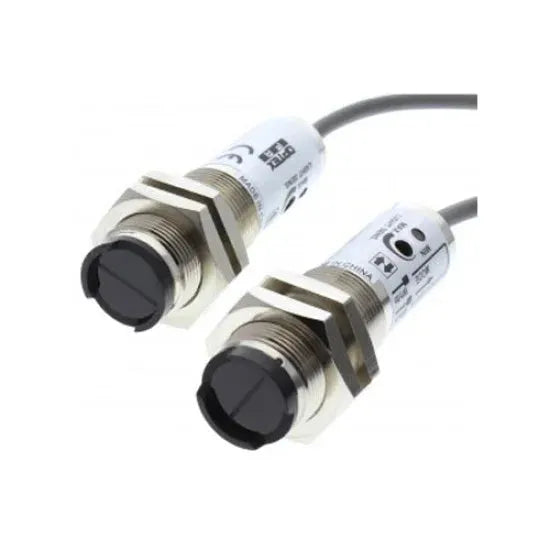

OPTEX CTD-1500N Photo Electric Sensor Price is Rs.38,880/-. The OPTEX CTD-1500N Photo Electric Sensor is a high-performance through-beam sensor designed for long-range object detection up to 15 meters. Featuring precise alignment and fast response, this sensor is ideal for industrial applications requiring reliable detection over extended distances, such as conveyor systems, automation lines, and access control. With a compact design and IP67-rated housing, the CTD-1500N ensures stable performance in harsh environments. Its NPN open collector output and robust build make it suitable for demanding automation needs.
Long sensing distance up to 15 meters (through-beam type)
Compact and lightweight design for easy installation
Excellent ambient light immunity
High accuracy and fast response for reliable object detection
IP67-rated for dust and water resistance
NPN open collector output for flexible integration
Reverse polarity and short-circuit protection
Product Specifications
Type
electric sensor
detection method
through-beam
ambient light immunity
3,000 lux (incandescent)
connection type
pre-wired cable
current consumption
= 25ma
light source
infrared led
material
polycarbonate housing
maximum output current
100ma
operating temperature
-10°c to +55°c (no condensation or freezing)
output type
npn open collector
power supply
12 to 24 vdc ±10%
protection functions
reverse polarity, surge, and output short-circuit protection
protection rating
ip67
response time
= 1ms
sensing distance
15 meters
Product Details
OPTEX CTD-1500N Photo Electric Sensor Price is Rs.38,880/-. The OPTEX CTD-1500N Photo Electric Sensor is a high-performance through-beam sensor designed for long-range object detection up to 15 meters. Featuring precise alignment and fast response, this sensor is ideal for industrial applications requiring reliable detection over extended distances, such as conveyor systems, automation lines, and access control. With a compact design and IP67-rated housing, the CTD-1500N ensures stable performance in harsh environments. Its NPN open collector output and robust build make it suitable for demanding automation needs.
