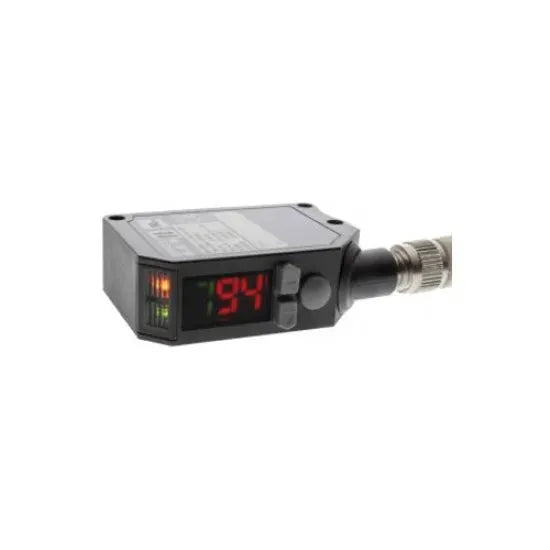

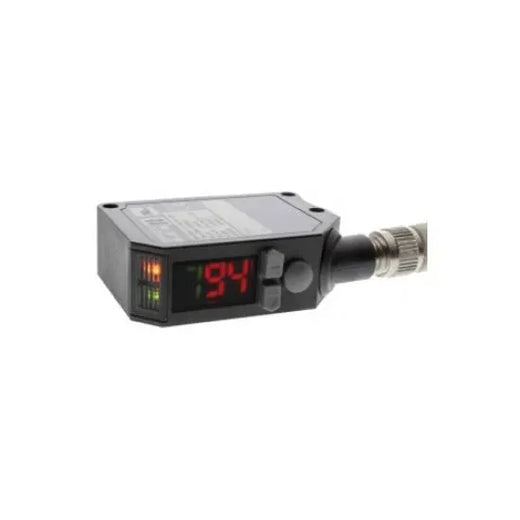

OPTEX DM-18TCN Colour Mark Sensor Price is Rs.99,000/-. The OPTEX DM-18TCN Colour Mark Sensor is a high-performance sensor designed for fast and accurate detection of color marks, register marks, and labels in high-speed packaging, printing, and labeling applications. With its RGB light source and teach-in function, the sensor offers precise color differentiation, even on glossy or reflective surfaces. The DM-18TCN features a compact design, fast response time, and NPN open collector output, making it ideal for space-constrained automation systems requiring reliable color mark detection and minimal setup.
RGB LED light source for accurate color differentiation
Compact design for easy integration into machines
High-speed detection suitable for fast-moving lines
Ideal for detecting printed marks, labels, and packaging materials
NPN open collector output for standard control compatibility
Stable operation on reflective or low-contrast surfaces
Teach-in function for quick and easy color mark setup
Product Specifications
Type
colour mark sensor
light source
rgb led
ambient light immunity
3,000 lux (incandescent)
current consumption
= 50ma
operating temperature
-10°c to +55°c
output current
max. 100ma
output type
npn open collector
power supply voltage
12 to 24 vdc ±10%
protection features
reverse polarity and short-circuit protection
response time
= 50µs
sensing distance
approx. 10mm ±2mm
target mark size
= 2mm × 2mm
teach function
yes (manual or auto-teach supported)
Product Details
OPTEX DM-18TCN Colour Mark Sensor Price is Rs.99,000/-. The OPTEX DM-18TCN Colour Mark Sensor is a high-performance sensor designed for fast and accurate detection of color marks, register marks, and labels in high-speed packaging, printing, and labeling applications. With its RGB light source and teach-in function, the sensor offers precise color differentiation, even on glossy or reflective surfaces. The DM-18TCN features a compact design, fast response time, and NPN open collector output, making it ideal for space-constrained automation systems requiring reliable color mark detection and minimal setup.
