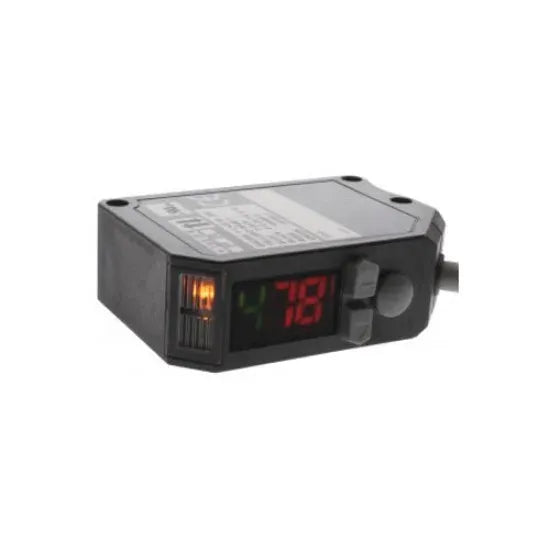

OPTEX DM-18TN Colour Mark Sensor Price is Rs.99,000/-. The OPTEX DM-18TN Colour Mark Sensor is a high-precision color mark sensor designed to detect subtle color differences on fast-moving targets with exceptional reliability. Utilizing a high-intensity RGB LED and advanced signal processing, it accurately detects registration marks, labels, and printed materials even on reflective or low-contrast surfaces. The DM-18TN features a compact body, ultra-fast 50μs response time, and a convenient teach-in function for easy setup. Its PNP output and IP66-rated enclosure make it suitable for demanding industrial automation environments, including packaging, printing, and labeling systems.
RGB LED light source for precise color mark detection
Accurate detection on glossy, reflective, or low-contrast materials
Compact design ideal for limited space applications
Easy teach-in setup (auto or manual)
IP66-rated housing for protection against dust and water
PNP open collector output for flexible integration
Ultra-fast response time of 50µs
Product Specifications
Type
colour mark sensor
sensing distance
approx. 10mm ±2mm
current consumption
= 50ma
max output current
100ma
minimum detectable mark size
2mm × 2mm
output type
pnp open collector
power supply voltage
12 to 24 vdc ±10%
response time
= 50µs
teach function
yes (auto/manual teach-in)
Product Details
OPTEX DM-18TN Colour Mark Sensor Price is Rs.99,000/-. The OPTEX DM-18TN Colour Mark Sensor is a high-precision color mark sensor designed to detect subtle color differences on fast-moving targets with exceptional reliability. Utilizing a high-intensity RGB LED and advanced signal processing, it accurately detects registration marks, labels, and printed materials even on reflective or low-contrast surfaces. The DM-18TN features a compact body, ultra-fast 50μs response time, and a convenient teach-in function for easy setup. Its PNP output and IP66-rated enclosure make it suitable for demanding industrial automation environments, including packaging, printing, and labeling systems.
