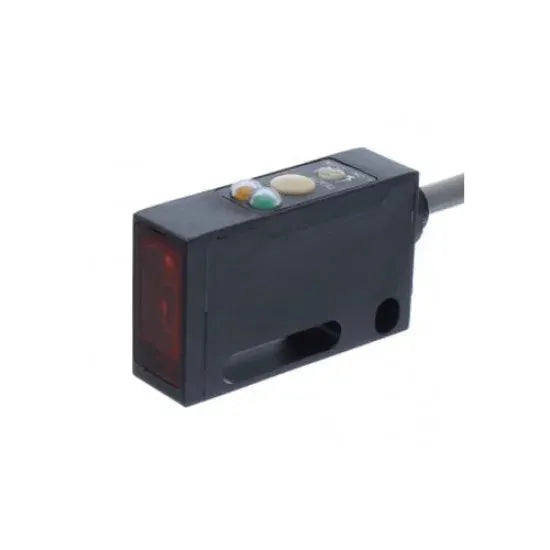

OPTEX J2D-H-70N Colour Mark Sensor Price is Rs.56,160/-. The OPTEX J2D-H-70N Colour Mark Sensor is a high-speed, high-resolution color mark sensor designed for precise detection of color differences, register marks, and printed patterns in high-speed automation environments. Featuring an RGB LED light source and a sensing distance of up to 70mm, this sensor delivers exceptional accuracy even on glossy or low-contrast surfaces. With an easy-to-use teach-in function, NPN open collector output, and a compact, robust housing, the J2D-H-70N is ideal for packaging, labeling, printing, and textile applications requiring fast and stable color mark detection.
RGB LED light source for accurate color mark detection
Compact and durable housing for industrial use
Easy teach-in setup with push-button operation
Extended sensing distance up to 70mm
High-speed detection for fast-moving production lines
NPN open collector output for flexible system integration
Reliable detection on reflective, glossy, or low-contrast surfaces
Product Specifications
Type
colour mark sensor
sensing distance
70mm ±10mm
ambient light immunity
up to 3,000 lux (incandescent)
current consumption
= 60ma
max output current
100ma
minimum detectable mark size
approx. 2mm × 2mm
operating temperature
-10°c to +55°c (non-condensing)
output type
npn open collector
power supply voltage
12 to 24 vdc ±10%
protection features
reverse polarity and short-circuit protection
response time
= 50µs
teach function
yes (manual/auto teach)
Product Details
OPTEX J2D-H-70N Colour Mark Sensor Price is Rs.56,160/-. The OPTEX J2D-H-70N Colour Mark Sensor is a high-speed, high-resolution color mark sensor designed for precise detection of color differences, register marks, and printed patterns in high-speed automation environments. Featuring an RGB LED light source and a sensing distance of up to 70mm, this sensor delivers exceptional accuracy even on glossy or low-contrast surfaces. With an easy-to-use teach-in function, NPN open collector output, and a compact, robust housing, the J2D-H-70N is ideal for packaging, labeling, printing, and textile applications requiring fast and stable color mark detection.
