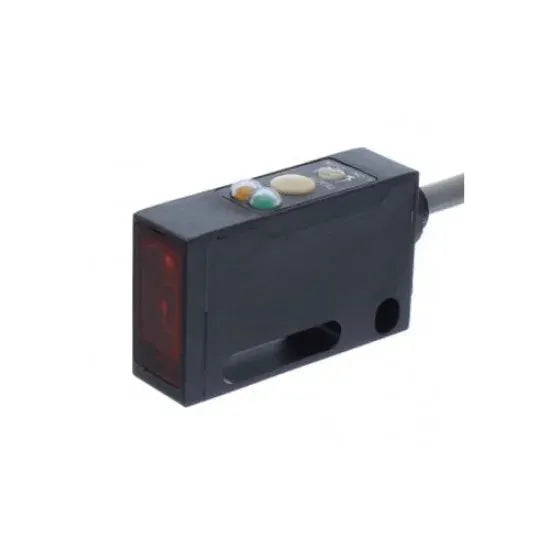

OPTEX J3M-GH-01N Colour Mark Sensor Price is Rs.64,080/-. The OPTEX J3M-GH-01N Colour Mark Sensor is an advanced RGB color mark sensor designed for ultra-precise detection of color marks, register marks, and labels in high-speed industrial environments. With a narrow beam and a high-resolution detection system, it excels in identifying even the smallest marks on glossy, metallic, or low-contrast surfaces. The sensor features a fast response time, NPN open collector output, and a user-friendly teach-in function. Its compact IP66-rated housing ensures durability and consistent performance in demanding automation applications such as packaging, printing, and labeling.
RGB LED light source for precise color recognition
Compact body with IP66-rated protection
High stability on reflective, transparent, or low-contrast surfaces
Narrow beam ideal for small or fine mark detection
NPN open collector output for seamless control integration
Teach-in function for quick and easy setup
Ultra-fast response time suitable for high-speed lines
Product Specifications
Type
colour mark sensor
light source
rgb led
beam type
narrow beam for small target detection
current consumption
= 60ma
max output current
100ma
minimum mark size
approx. 1mm × 1mm
output type
npn open collector
power supply voltage
12 to 24 vdc ±10%
response time
= 50µs
sensing distance
approx. 10mm ±2mm (narrow spot)
teach function
yes (manual/auto teach-in)
Product Details
OPTEX J3M-GH-01N Colour Mark Sensor Price is Rs.64,080/-. The OPTEX J3M-GH-01N Colour Mark Sensor is an advanced RGB color mark sensor designed for ultra-precise detection of color marks, register marks, and labels in high-speed industrial environments. With a narrow beam and a high-resolution detection system, it excels in identifying even the smallest marks on glossy, metallic, or low-contrast surfaces. The sensor features a fast response time, NPN open collector output, and a user-friendly teach-in function. Its compact IP66-rated housing ensures durability and consistent performance in demanding automation applications such as packaging, printing, and labeling.
