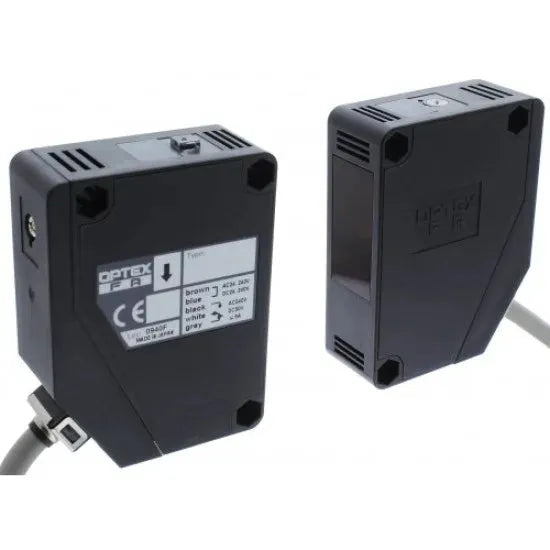

OPTEX V3T-7000 Photo-Electric Sensor Price is Rs.65,880/-. The OPTEX V3T-7000 Photo-Electric Sensor is an advanced through-beam type sensor designed for ultra long-range object detection up to 7000mm (7 meters). With separate emitter and receiver units, this sensor offers exceptional accuracy, speed, and stability in demanding industrial environments. Its visible red LED beam enables quick and easy alignment, while its compact body allows easy installation even in tight spaces. Ideal for applications like large conveyor systems, pallet detection, packaging lines, and warehouse automation, the V3T-7000 provides high-speed response and reliable performance in harsh conditions. Available with NPN or PNP open collector output, depending on the model.
Ideal for logistics, conveyors, material handling, and industrial automation
Red LED for quick visual alignment
Stable detection in dusty or light-interfered environments
Through-beam type with separate emitter and receiver
Product Specifications
Type
electric sensor
sensing type
through-beam (requires emitter and receiver)
ambient light immunity
up to 3,000 lux (incandescent)
current consumption
= 30ma
housing material
industrial-grade abs/plastic
light source
visible red led
max output current
100ma
operating temperature
-10°c to +55°c (non-condensing)
output type
npn or pnp open collector (model-specific)
power supply voltage
12 to 24 vdc ±10%
protection functions
reverse polarity and short-circuit protection
protection rating
ip64 or higher (varies by model)
response time
= 1ms
sensing distance
up to 7000mm (7 meters)
target objects
opaque materials
Product Details
OPTEX V3T-7000 Photo-Electric Sensor Price is Rs.65,880/-. The OPTEX V3T-7000 Photo-Electric Sensor is an advanced through-beam type sensor designed for ultra long-range object detection up to 7000mm (7 meters). With separate emitter and receiver units, this sensor offers exceptional accuracy, speed, and stability in demanding industrial environments. Its visible red LED beam enables quick and easy alignment, while its compact body allows easy installation even in tight spaces. Ideal for applications like large conveyor systems, pallet detection, packaging lines, and warehouse automation, the V3T-7000 provides high-speed response and reliable performance in harsh conditions. Available with NPN or PNP open collector output, depending on the model.
