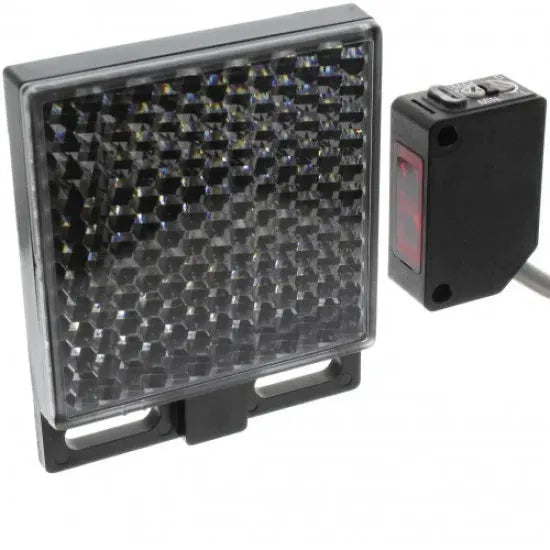

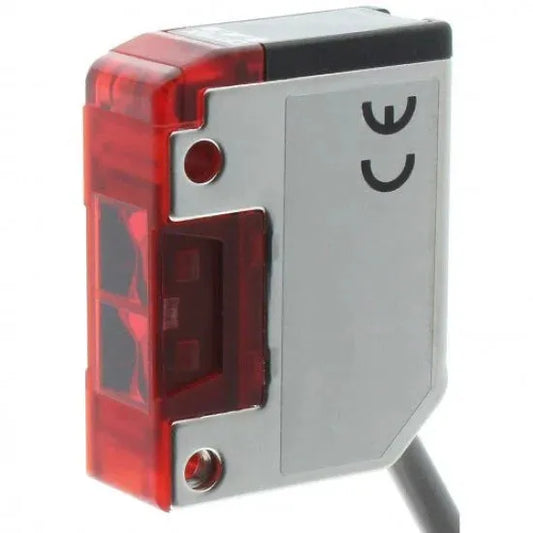

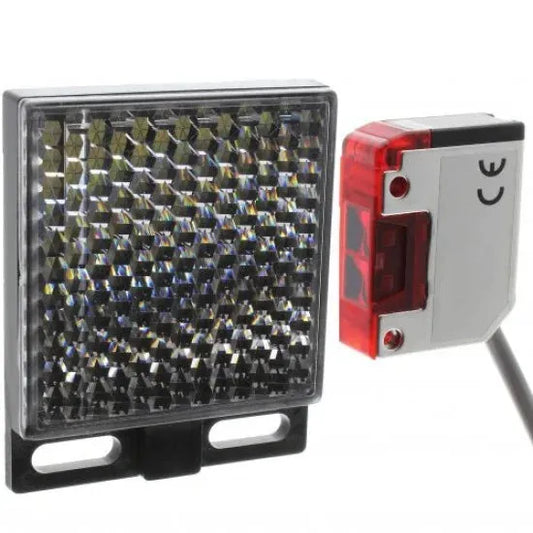

OPTEX Z2R-400N Photo Electric Sensor Price is Rs.41,760/-. The OPTEX Z2R-400N is a compact and efficient retro-reflective photo-electric sensor, designed for precise object detection up to 400mm using a reflector. With a visible red LED light source for easy alignment and a built-in NPN open collector output, this sensor delivers reliable performance in a wide range of automation and industrial applications. The Z2R-400N is ideal for detecting opaque objects across packaging lines, conveyor belts, and sorting systems where stable, long-life sensing is critical. Its durable design ensures consistent operation in dusty or vibration-prone environments.
Retro-reflective sensing with 400mm range (with reflector)
Compact body suitable for tight installations
High-speed response for real-time object detection
NPN open collector output for easy system integration
Red LED for fast and visible optical alignment
Simple installation and long operational life
Strong resistance to ambient light interference
Suitable for packaging, conveyors, and material detection systems
Product Specifications
Type
photo electric sensor
sensing method
retro-reflective (requires reflector)
ambient light immunity
up to 3,000 lux (incandescent)
current consumption
= 30ma
light source
visible red led
max output current
100ma
operating temperature
-10°c to +55°c (non-condensing)
output type
npn open collector
power supply voltage
12 to 24 vdc ±10%
protection features
reverse polarity and output short-circuit protection
protection rating
ip64 (typical)
response time
= 1ms
sensing distance
up to 400mm
target objects
opaque or colored materials
Product Details
OPTEX Z2R-400N Photo Electric Sensor Price is Rs.41,760/-. The OPTEX Z2R-400N is a compact and efficient retro-reflective photo-electric sensor, designed for precise object detection up to 400mm using a reflector. With a visible red LED light source for easy alignment and a built-in NPN open collector output, this sensor delivers reliable performance in a wide range of automation and industrial applications. The Z2R-400N is ideal for detecting opaque objects across packaging lines, conveyor belts, and sorting systems where stable, long-life sensing is critical. Its durable design ensures consistent operation in dusty or vibration-prone environments.
