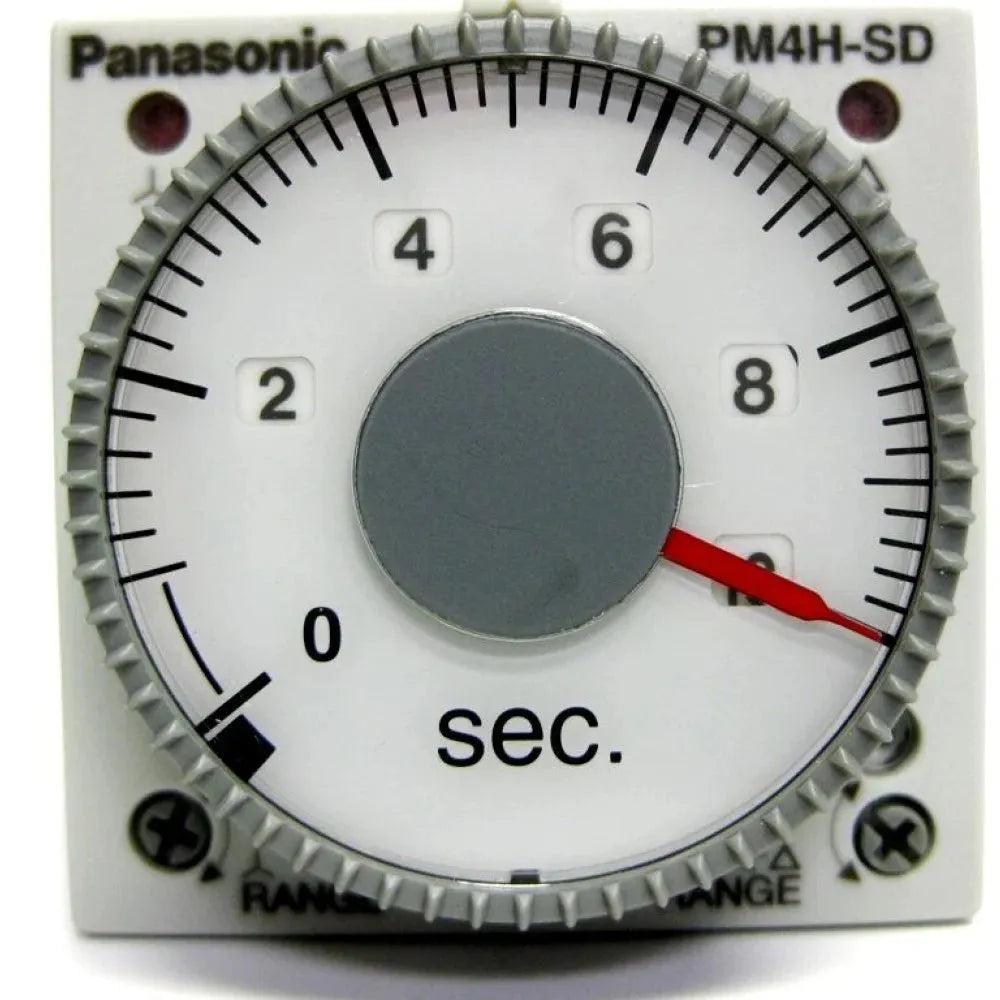

Panasonic Star-Delta Electronic Timer Price in Pakistan Rs 51,200/-. The Panasonic PM4HS-SD is a compact and reliable Star-Delta electronic timer designed specifically for motor control applications. It simplifies the transition from star to delta starting, protecting motors from high inrush currents and mechanical stress during startup. With an easy-to-use dial for time settings, a dual time range for star and delta operations, and LED indicators for status monitoring, the PM4HS-SD ensures accurate and efficient operation. Its 48 x 48 mm compact body and plug-in socket design make it ideal for integration into industrial control panels.
Designed for use with induction motors and control panels
Dual time range adjustment (star and delta)
LED indicators for power and operation status
Plug-in type with 11-pin base for easy installation
Reliable solid-state circuitry for long life
Simple dial setting for time configuration
Suitable for panel or DIN rail mounting
Product Specifications
Type
electronic timer
function
star-delta motor starting timer
base type
11-pin plug-in socket
control accuracy
±1% of full scale
delta delay time
fixed at approx. 50ms
dimensions
48 x 48 x 77 mm
indicators
led for power and output
mounting type
din rail or panel mount
operating temperature
-10°c to +55°c
output contacts
2 spdt relays (one for star, one for delta), 5a at 250v ac resistive
power supply
200–240v ac
protection rating
ip40 (front), ip20 (terminals)
star time range
0.1 – 30 seconds (adjustable)
storage temperature
-25°c to +70°c
weight
approx. 150g
Product Details
Panasonic Star-Delta Electronic Timer Price in Pakistan Rs 51,200/-. The Panasonic PM4HS-SD is a compact and reliable Star-Delta electronic timer designed specifically for motor control applications. It simplifies the transition from star to delta starting, protecting motors from high inrush currents and mechanical stress during startup. With an easy-to-use dial for time settings, a dual time range for star and delta operations, and LED indicators for status monitoring, the PM4HS-SD ensures accurate and efficient operation. Its 48 x 48 mm compact body and plug-in socket design make it ideal for integration into industrial control panels.
