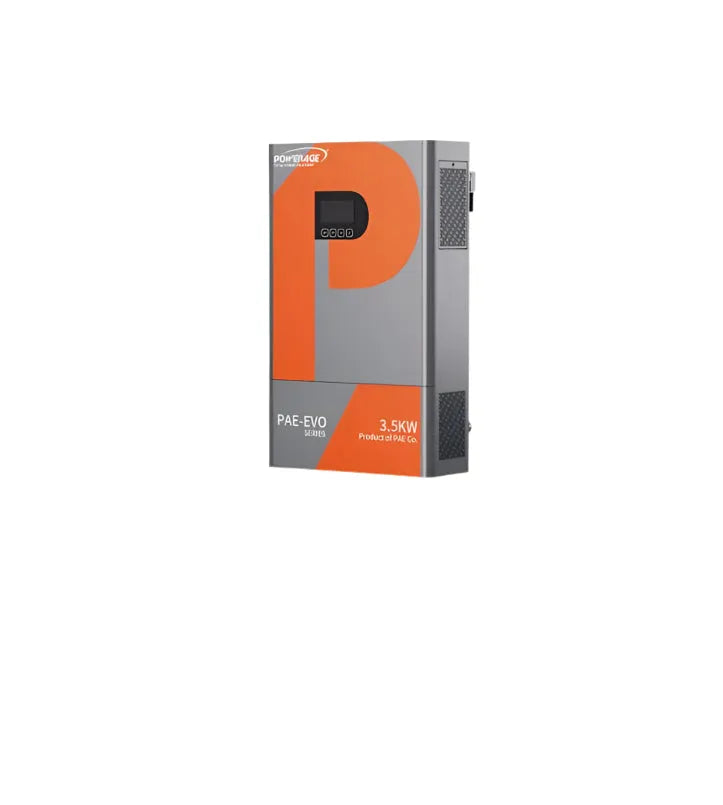

Powerage Single Phase Hybrid Solar Inverter Price in Pakistan is Rs. 89,000/-. The Powerage PAE-EVO-3500 is a single-phase hybrid solar inverter that provides reliable and efficient energy conversion for residential and commercial solar applications. With dual AC output, it offers flexible power distribution between the grid, home appliances, and other connected systems. Equipped with MPPT solar charging technology, the PAE-EVO-3500 supports lithium and lead-acid batteries while providing high charging efficiency and battery protection. This inverter also offers superior pure sine wave output, ensuring the cleanest and most compatible power for sensitive electronic equipment.
With a surge power rating of 6 kVA, the inverter supports short-term peak loads while maintaining high efficiency (up to 93% in battery mode). The system features a wide MPPT range (120V-450V DC) and can accept 500V DC at maximum input voltage, allowi...
MPPT Solar Charger for optimal solar energy conversion
Pure Sine Wave Output for compatibility with sensitive equipment
Supports Lithium and Lead-acid Batteries
High Efficiency with up to 93% in battery mode
Wide MPPT Voltage Range (120V to 450V DC)
Overload Protection with automatic load management
WiFi Monitoring (Optional) for real-time system tracking
Multiple Communication Interfaces: RS485, RS232, USB, Dry Contact
Compact Design with easy installation and lower shipping costs
High Energy Efficiency reducing overall power costs
Long Battery Lifespan with advanced battery protection features
Product Specifications
Type
single-phase hybrid solar inverter
rated capacity
3.5 kw
surge power
6 kva
input voltage
208 / 220 / 230 / 240 vac
voltage range
90280v (normal mode), 170280v (ups mode)
frequency
50 / 60hz (auto adaptive)
max efficiency
93% in battery mode
mppt voltage range
120~450v dc
max pv input power
4000w
max pv open circuit voltage
500v dc
max pv charge current
120a
max ac charge current
120a
battery voltage
24v dc
floating charge voltage
27v dc
overcharge protection
31v dc
communication ports
rs485 / rs232 / usb / dry contact
monitoring
ingress protection
ip20
operating temp
-10℃ to 50℃
weight
8.7 kg
dimensions
510 x 306 x 115 mm
max operating altitude
4000m
Product Details
Powerage Single Phase Hybrid Solar Inverter Price in Pakistan is Rs. 89,000/-. The Powerage PAE-EVO-3500 is a single-phase hybrid solar inverter that provides reliable and efficient energy conversion for residential and commercial solar applications. With dual AC output, it offers flexible power distribution between the grid, home appliances, and other connected systems. Equipped with MPPT solar charging technology, the PAE-EVO-3500 supports lithium and lead-acid batteries while providing high charging efficiency and battery protection. This inverter also offers superior pure sine wave output, ensuring the cleanest and most compatible power for sensitive electronic equipment.
With a surge power rating of 6 kVA, the inverter supports short-term peak loads while maintaining high efficiency (up to 93% in battery mode). The system features a wide MPPT range (120V-450V DC) and can accept 500V DC at maximum input voltage, allowing for optimal energy harvesting from solar panels. It also offers WiFi monitoring for remote tracking, making it ideal for both off-grid and grid-connected solar systems.
