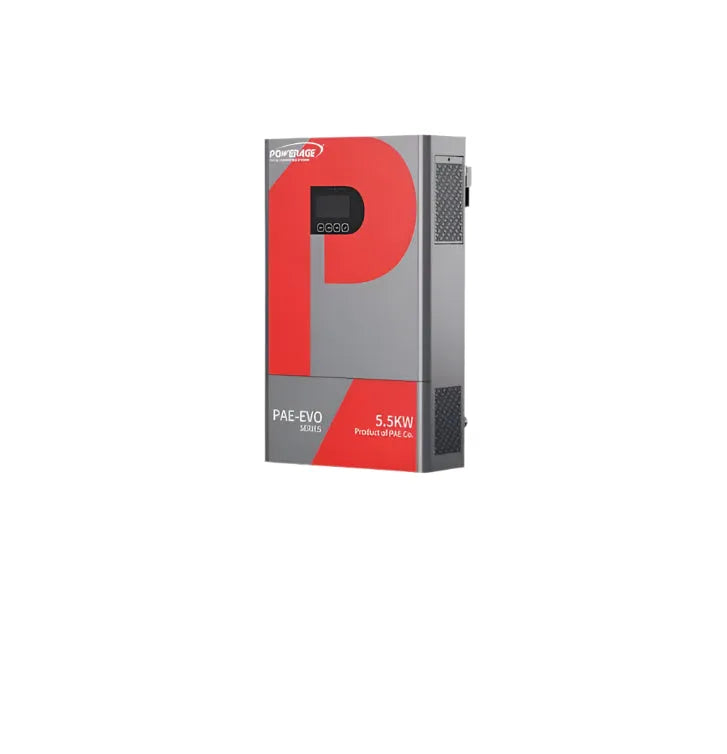

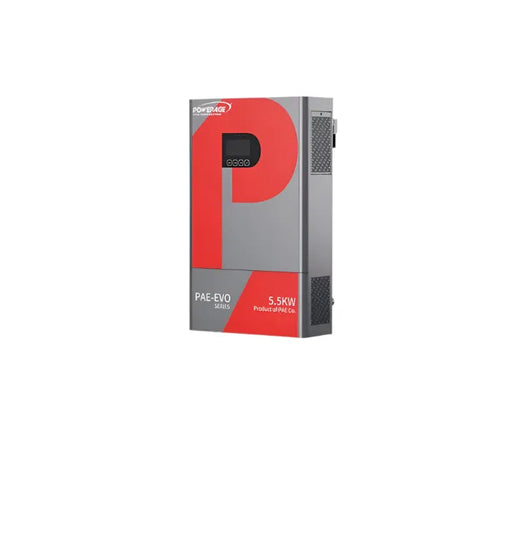

Powerage PAE-EVO-5500 Single Phase Hybrid Solar Inverter
Product SKU:
PAE-EVO-5500
Rs.160,000
Safe Delivery
Quick & safe nation wide delivery
Easy Return
Hassle free return within 7 days
100% Original Product
Only genuine products, no compromises.
Couldn't load pickup availability
Specifications
Type
Single-phase Hybrid Solar Inverter
AC Input
Rated Voltage 208/220/230/240 VAC, Voltage Range 90280V (normal), 170280V (UPS mode)
AC Output
5.5 kW, Surge Power 10 kVA, Pure Sine Wave
Frequency
50/60Hz ±0.1%
Max Efficiency
93% in battery mode
MPPT Range
120~450V DC
Max PV Input Power
6000W, Max PV Open Circuit Voltage: 500V DC
Max PV Charge Current
80A, Max AC Charge Current: 80A
Battery Voltage
48V DC, Floating Charge Voltage: 54V DC
Overcharge Protection
61V DC
Parallel Capability
Up to 9 inverters
Communication
RS485, RS232, USB, Dry Contact, Optional WiFi Monitoring
Operating Temp
-10℃ to 50℃, Storage Temp: -15℃ to 60℃
Ingress Protection
IP20
Weight
9.5 kg
Dimensions
510 x 306 x 115 mm (without bracket)
Max Operating Altitude
4000m (derating above 1000m)
Key Features
Parallel Inverter capability (up to 9 inverters)
Run without Battery for flexible operations
Wide MPPT range from 120V to 500V for improved solar energy harvesting
WiFi monitoring with app/cloud integration
Detachable dust cover for enhanced protection
Built-in 80A solar charger with Battery Management System (BMS)
Dual AC output for flexible load connection
Supports both Lithium and Lead-acid batteries
Pure sine wave output for reliable and stable power
High Efficiency with up to 93% in battery mode
Automatic adaptive frequency for 50/60Hz operation
Multiple communication interfaces (RS485, RS232, USB, Dry Contact)
Max. Operating Altitude of 4000m with derating above 1000m
IP20 Ingress Protection for safety and durability
Product Details
Reviews
Shipping & Returns
User Manual
Powerage PAE-EVO-5500 Single Phase Hybrid Solar Inverter
an integrated 80A solar charger with Battery Management System (BMS) for enhanced battery protection and efficiency. Additionally, the dual AC output provides flexible options for connecting home loads, grid, and even a generator.
This inverter ensures reliability with a pure sine wave output, adaptive voltage range, and an impressive efficiency of up to 93% in battery mode. The built-in dust cover offers additional protection, and the system can operate efficiently in a wide temperature range from -10℃ to 50℃.
