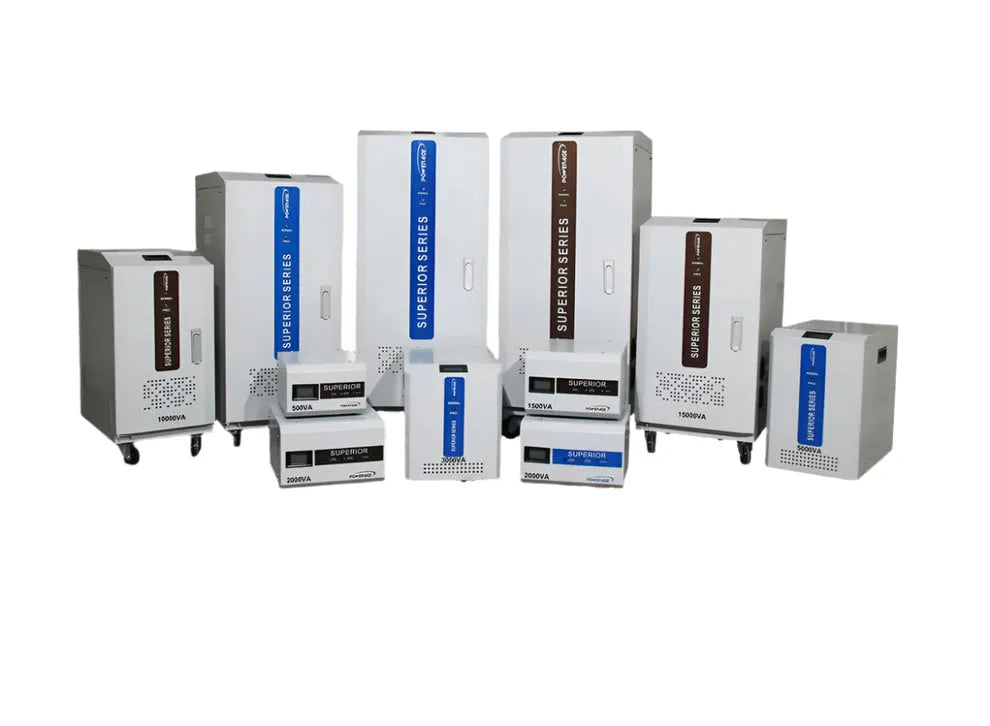

Powerage PAE-SR-3KVA Single Phase Voltage Stabilizer Price in Pakistan is on inquiry/-. The Powerage PAE-SR-3KVA Single Phase AC Voltage Stabilizer is engineered to maintain a stable power supply for electrical equipment, ensuring safety and performance in areas with voltage fluctuations. With a 3KVA capacity and servo motor-based control, it provides precise ±2.5% voltage accuracy and supports both 220V and 110V output. It features a wide input voltage range, digital monitoring, over/under-voltage protection, surge arrestor, and a manual bypass option. Housed in a compact indoor-friendly IP21 casing, it is ideal for residential, office, and commercial environments.
3KVA capacity suitable for homes and medium-sized offices
High-precision servo motor voltage control
±2.5% voltage output accuracy for stable power
Dual output support for 220V and 110V
Wide input range from 140V to 270V
Digital metering for voltage and current display
Natural cooling system with fan support
IP21 rated enclosure for indoor protection
Provides load protection from overvoltage and undervoltage
Built-in surge arrestor with manual bypass function
Product Specifications
Type
voltage stabilizer
capacity
3000va / 3kva
input voltage range
140v – 270v
output voltage
220v / 110v
output accuracy
±2.5%
frequency
50hz / 60hz
cooling
natural with fan
ambient temperature
-25°c to +45°c
storage temperature
-25°c to +60°c
max humidity
95% (non-condensing)
overload capacity
150% for 2 minutes
harmonic distortion
none introduced
color
ral 7035
protection degree
ip21
display
digital meter (input/output voltage and current)
installation
indoor use
protection features
over/under-voltage, surge arrestor, manual bypass
dimensions (w × d × h)
335 × 210 × 265 mm
Product Details
Powerage PAE-SR-3KVA Single Phase Voltage Stabilizer Price in Pakistan is on inquiry/-. The Powerage PAE-SR-3KVA Single Phase AC Voltage Stabilizer is engineered to maintain a stable power supply for electrical equipment, ensuring safety and performance in areas with voltage fluctuations. With a 3KVA capacity and servo motor-based control, it provides precise ±2.5% voltage accuracy and supports both 220V and 110V output. It features a wide input voltage range, digital monitoring, over/under-voltage protection, surge arrestor, and a manual bypass option. Housed in a compact indoor-friendly IP21 casing, it is ideal for residential, office, and commercial environments.
