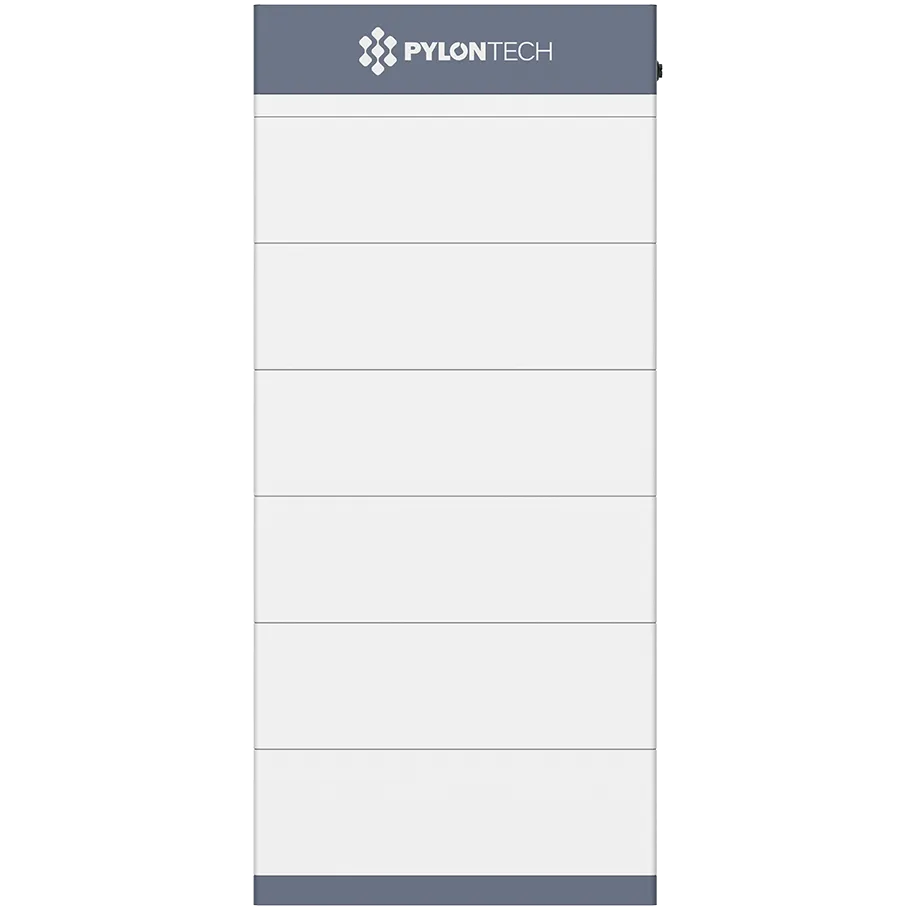

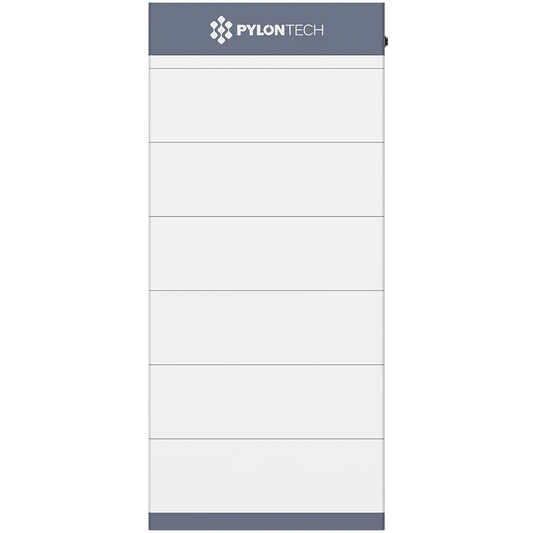

Pylontech Force H3 35.84kWh High Voltage Lithium Battery Price In Pakistan
  • Pylontech Force H3 35.84kWh High Voltage Lithium Battery Price In Pakistan
Pylontech Force H3 Lithium Battery Pack of 5.12 kWh
Availability: In Stock

Pylontech Force H3 Lithium Battery Pack of 5.12 kWh

Product SKU: Force-H3
Rs.315,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Type Lithium Battery
Battery Module FH10050
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal Voltage (Module) 102.4 VDC
Battery Module Capacity 5.12 kWh
Battery Module Quantity 7 Modules
Battery System Capacity 35.84 kWh
Usable Capacity 34.01 kWh
Battery System Voltage 716.8 VDC
Depth of Discharge (DoD) 95%
Normal Charge/Discharge Current 50 A
Maximum Charge/Discharge Current 55 A @ 15 Minutes
Communication Port Modbus RTU / CAN
Multi-Group Expansion Maximum 6 Groups in Parallel
Maximum Expandable Capacity 215.04 kWh
Protection Rating IP65
Cooling Method Natural Cooling
Working Temperature (Charge) -10°C to 55°C
Storage Temperature -20°C to 45°C
Humidity 5% – 95% RH (Non-Condensing)
Maximum Altitude < 4000 m
Dimensions (W × D × H) 540 × 350 × 1380 mm
Weight 287 kg
Installation Type Floor Standing / Stackable
Design Life 15+ Years
Cycle Life > 8,000 Cycles
Communication Protocols CAN Bus, Modbus RTU
Battery Management System Integrated Intelligent BMS
Application Residential & Commercial Energy Storage
Monitoring Smart Monitoring & System Management Support
Safety Certifications IEC62040-1, IEC62477-1, IEC62619, IEC63056, UL1973, UL9540A, UN38.3, VDE-AR-E 2510-50

Key Features

High-voltage LiFePO4 battery energy storage system
35.84kWh total capacity with 34.01kWh usable energy
95% depth of discharge (DoD)
Modular and stackable design for easy expansion
Supports up to 6 groups in parallel
Long service life exceeding 8,000 cycles
Intelligent BMS for enhanced safety and performance
CAN & Modbus RTU communication support
IP65-rated enclosure for indoor and outdoor installation
Compatible with leading inverter brands
Plug-and-play installation with minimal wiring
High efficiency and reliable energy storage performance
15+ year design life
Product Details Reviews Shipping & Returns User Manual

Pylontech Force H3 Lithium Battery Pack of 5.12 kWh

The Pylontech Force H3 is a premium high-voltage lithium battery energy storage system designed for residential and commercial solar applications. Built with advanced LiFePO4 technology, it delivers exceptional safety, long cycle life, and high energy efficiency for reliable backup and self-consumption applications.

Featuring a modular and stackable design, the Force H3 offers outstanding scalability, allowing users to expand storage capacity as energy demands grow. With a usable capacity of 34.01kWh, 95% depth of discharge, and over 8,000 life cycles, it provides dependable long-term performance and a lower cost of ownership.

The system supports intelligent battery management, remote monitoring, and seamless integration with leading inverter brands. Its IP65-rated enclosure ensures reliable operation in both indoor and outdoor environments, while the plug-and-play installation design simplifies deployment and maintenance.

Designed for modern energy storage applications, the Force H3 combines high efficiency, advanced safety, flexible installation, and strong scalability into a single premium solution.

Pylontech Force H3 35.84kWh High Voltage Lithium Battery Price In Pakistan
Pylontech Force H3 Lithium Battery Pack of 5.12 kWh
Looking to purchase Pylontech Force H3 Lithium Battery Pack of 5.12 kWh in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
