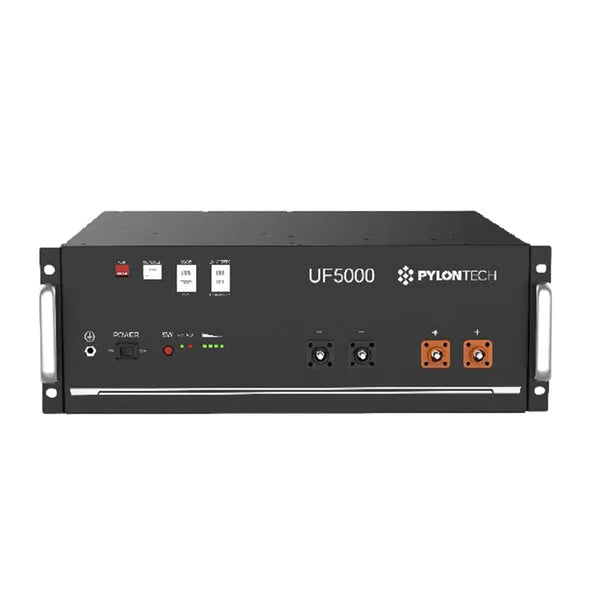

Introducing the Pylontech UF5000, a cutting-edge 5.12 kWh lithium-ion battery designed to redefine energy storage. This innovative battery features a modular design for effortless expansion, higher usable capacity, and intelligent Battery Management System (BMS) protection. Experience the future of power with Pylontech.
High Energy Density: 5.12 kWh capacity for optimal energy storage.
Modular Design: Easily expandable to meet growing energy needs.
Advanced BMS Protection: Ensures safety and efficiency.
High Usable Capacity: Maximizes available energy output.
Long Cycle Life: Durable and reliable performance over time.
Compact and Lightweight: Easy to install and integrate.
Product Specifications
Nominal voltage (vdc)
51.2
nominal capacity (kwh)
5.12
usable capacity (kwh)
4.864
dimension (mm)
442x452.6x161
weight (kg)
42
discharge voltage (vdc)
45.6-56.8
charge voltage (vdc)
56-56.8
recommended charge/discharge current (a)
100
max, continuous charge/discharge current (a)
100
peak charge/discharge current (a)
105-109@15 min / 120-200@15 sec
communication port
rs485,can
configuration (max in 1 battery group)
20 pcs
working temperature
-10å¡c->55å¡c
storage temperature
-20å¡c->60å¡c
short current/ duration time
<2000a/1ms
cooling type
natural
ip rating
ip20
humidity
5%-95% (rh) no condensation
altitude (m)
<4000
design life
15 years 25 å¡c
cycle life
>6,000 25 å¡c
Product Details
Introducing the Pylontech UF5000, a cutting-edge 5.12 kWh lithium-ion battery designed to redefine energy storage. This innovative battery features a modular design for effortless expansion, higher usable capacity, and intelligent Battery Management System (BMS) protection. Experience the future of power with Pylontech.
