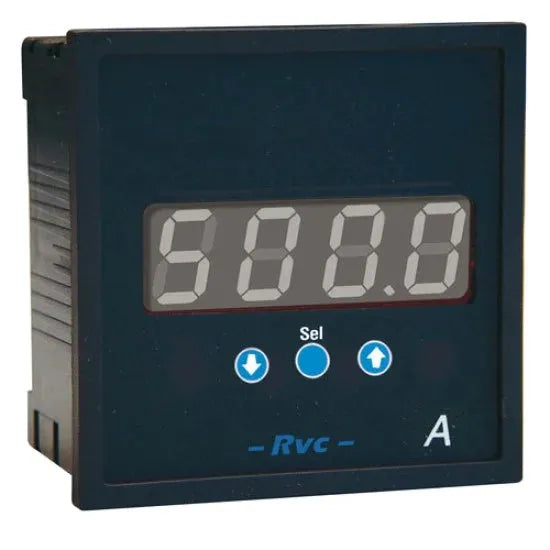

The Revalco 2ERID48.4A is a compact digital panel ammeter designed for precise AC current measurement in electrical panels and industrial systems. With its clear 3-digit LED display and 48x48 mm DIN standard casing, it provides real-time current monitoring for single-phase circuits. It supports external current transformer (CT) input and offers high accuracy, quick installation, and durable performance, making it ideal for control panels, machinery, and energy management systems.
Ideal for electrical distribution, automation, and industrial control
Measures AC current up to 5A (via CT ratio scaling)
Supports external CT (current transformer) input
Product Specifications
Display range
typically 0.0 to 5.0a (scaled based on ct ratio)
accuracy
±1% of full scale
housing material
flame-retardant abs
input
ac current via external ct (1a or 5a secondary)
mounting
panel flush mounting with rear clamp
operating temperature
-10°c to +55°c
panel cut-out
45 x 45 mm
power supply
230v ac or 24v ac/dc (model dependent)
protection rating
ip54 (front panel), ip20 (rear)
Product Details
The Revalco 2ERID48.4A is a compact digital panel ammeter designed for precise AC current measurement in electrical panels and industrial systems. With its clear 3-digit LED display and 48x48 mm DIN standard casing, it provides real-time current monitoring for single-phase circuits. It supports external current transformer (CT) input and offers high accuracy, quick installation, and durable performance, making it ideal for control panels, machinery, and energy management systems.
