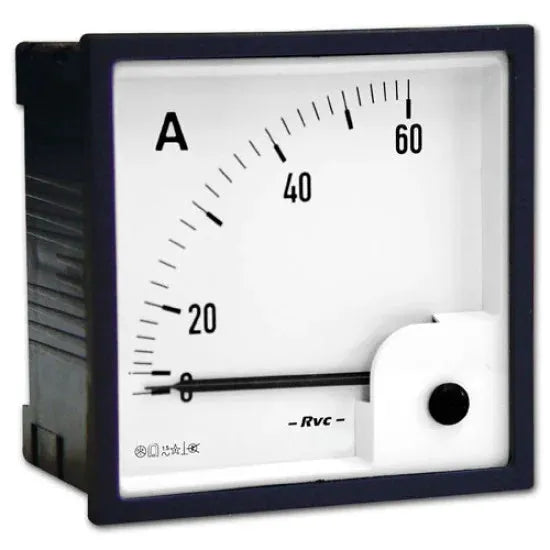

The Revalco ERI-96 is a precision analog panel ammeter designed for accurate measurement of AC or DC current in industrial and commercial electrical systems. Featuring a classic moving coil mechanism and a clear 96x96mm front dial, it provides real-time current readings with excellent reliability and long-term stability. The ERI-96 is ideal for switchboards, control panels, generators, and other power monitoring applications where a clear, analog readout is preferred.
Analog ammeter with 96x96mm DIN-standard panel design
Clear scale with easy-to-read pointer indicator
Compatible with external current transformers (CTs)
Flush panel mounting with rear terminal connections
Long service life and maintenance-free operation
Moving coil mechanism with high accuracy and low power consumption
Rugged construction for industrial environments
Suitable for AC or DC current measurement (model dependent)
Product Specifications
Type
panel ammeter
display type
analog scale with moving coil needle
accuracy class
class 1.5
body material
flame-retardant plastic casing
direct
0–5a
frequency (ac models)
50/60 hz
front cover
clear glass or anti-glare acrylic
mounting
flush panel mount with rear terminals
operating temperature
-10°c to +55°c
panel size
96 x 96 mm
protection rating
ip52 (front), ip20 (rear)
scale type
linear
via ct
0–1a or 0–5a secondary (scalable up to 10ka)
Product Details
The Revalco ERI-96 is a precision analog panel ammeter designed for accurate measurement of AC or DC current in industrial and commercial electrical systems. Featuring a classic moving coil mechanism and a clear 96x96mm front dial, it provides real-time current readings with excellent reliability and long-term stability. The ERI-96 is ideal for switchboards, control panels, generators, and other power monitoring applications where a clear, analog readout is preferred.
