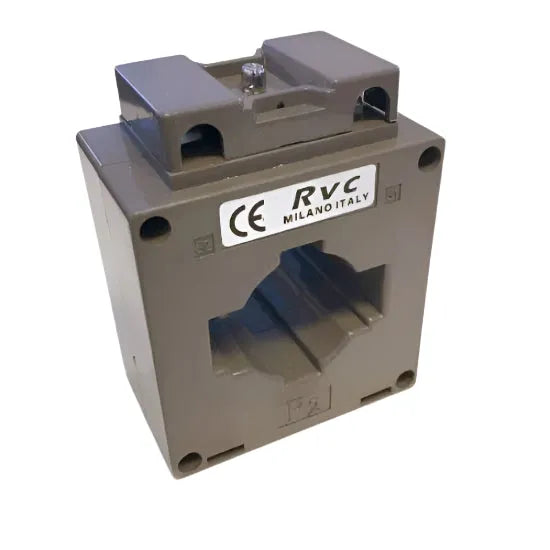

The Revalco TAR-5E Current Transformer is a high-precision ring-type CT designed for converting primary currents into standard secondary outputs of 5A or 1A for monitoring and protection purposes. Ideal for use in electrical panels, switchboards, and metering systems, this compact and reliable CT supports a wide primary current range and is suitable for both commercial and industrial environments. Its pass-through design allows easy installation around existing conductors without system interruption.
Converts high primary current to 5A or 1A secondary output
Easy installation through cable pass-through
Flame-retardant thermoplastic housing
High accuracy and long-term operational stability
Maintenance-free design
Suitable for metering, monitoring, and protection systems
Supports wide primary current range (model-dependent)
Product Specifications
Type
current transformer
primary current range
50a to 200a (based on variant)
accuracy class
class 1 or class 0.5
burden
2.5 va / 5 va / 10 va
frequency
50/60 hz
housing material
self-extinguishing, flame-retardant thermoplastic
insulation class
class e or b
mounting type
cable pass-through or base-mounted
operating temperature
-10°c to +55°c
secondary output
5a or 1a
window (aperture) size
suitable for single cable or small busbar
Product Details
The Revalco TAR-5E Current Transformer is a high-precision ring-type CT designed for converting primary currents into standard secondary outputs of 5A or 1A for monitoring and protection purposes. Ideal for use in electrical panels, switchboards, and metering systems, this compact and reliable CT supports a wide primary current range and is suitable for both commercial and industrial environments. Its pass-through design allows easy installation around existing conductors without system interruption.
