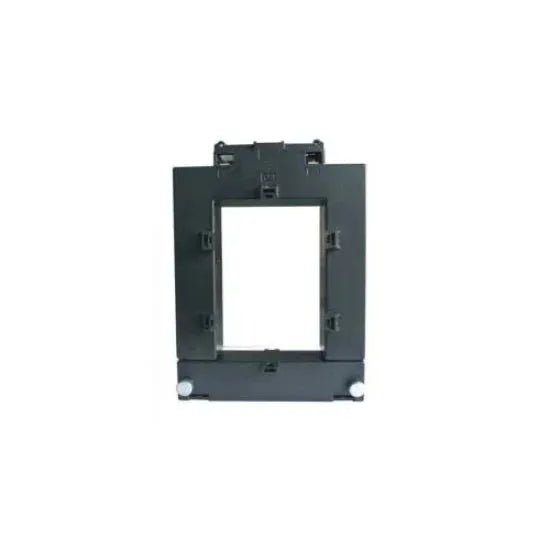

The Revalco TARA-120E Split Core Current Transformer is a high-accuracy, easy-to-install CT designed for retrofitting in existing electrical installations without the need to disconnect cables. Ideal for energy monitoring, metering, and protection applications, it features a hinged, openable core for convenient installation around live conductors. With a wide primary current range and standard 5A or 1A secondary output, the TARA-120E ensures safe, reliable, and maintenance-free operation in both commercial and industrial settings.
Split-core design for non-intrusive, tool-free installation
Converts high primary current to standard 5A or 1A output
Flame-retardant, robust thermoplastic housing
High accuracy and consistent performance
Ideal for retrofitting around live conductors without disconnection
Maintenance-free, long-lasting design
Suitable for energy monitoring, metering, and protection
Wide primary current range options (model-dependent)
Product Specifications
Type
current transformer
core type
split-core (hinged)
accuracy class
class 1 or class 0.5
burden
2.5 va / 5 va / 10 va
frequency range
50/60 hz
insulation class
class e
mounting
snap-on/surface mount with integrated clamp
operating temperature
-10°c to +55°c
primary current range
100a to 600a (model-dependent)
secondary output
5a or 1a
window (aperture) size
approx. 30 x 50 mm
Product Details
The Revalco TARA-120E Split Core Current Transformer is a high-accuracy, easy-to-install CT designed for retrofitting in existing electrical installations without the need to disconnect cables. Ideal for energy monitoring, metering, and protection applications, it features a hinged, openable core for convenient installation around live conductors. With a wide primary current range and standard 5A or 1A secondary output, the TARA-120E ensures safe, reliable, and maintenance-free operation in both commercial and industrial settings.
