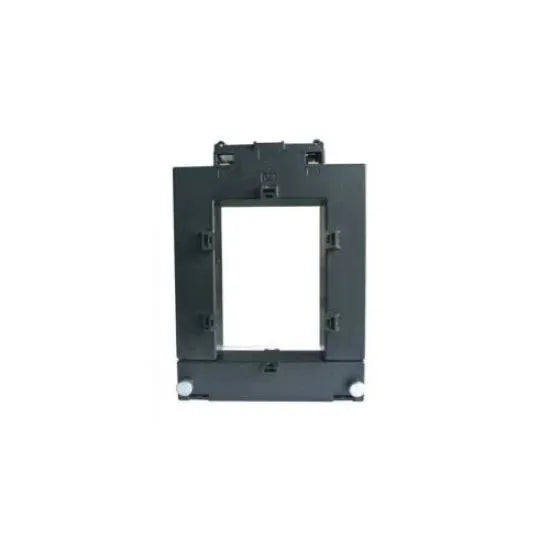

The Revalco TARA-160E is a high-precision split core current transformer designed for simple and safe installation in existing electrical systems without disconnecting conductors. With its robust, hinged design and wide current measurement range, it is ideal for energy monitoring, power metering, and protective relay applications. The TARA-160E offers reliable performance, long-term stability, and compliance with IEC standards, making it suitable for both industrial and commercial panel installations.
Hinged housing allows retrofitting without cable disconnection
Ideal for energy audits, load analysis, and protection circuits
Maintenance-free and long-lasting performance
Wide primary current range supported (model dependent)
Product Specifications
Type
current transformer
core type
split-core (hinged, openable design)
accuracy class
class 1 or 0.5
burden
2.5 va / 5 va / 10 va
frequency range
50/60 hz
insulation class
class e
mounting method
clip-on or surface mount
operating temperature
-10°c to +55°c
primary current range
200a to 1000a (depending on variant)
secondary output
5a or 1a
window (aperture) size
approx. 40 × 60 mm
Product Details
The Revalco TARA-160E is a high-precision split core current transformer designed for simple and safe installation in existing electrical systems without disconnecting conductors. With its robust, hinged design and wide current measurement range, it is ideal for energy monitoring, power metering, and protective relay applications. The TARA-160E offers reliable performance, long-term stability, and compliance with IEC standards, making it suitable for both industrial and commercial panel installations.
