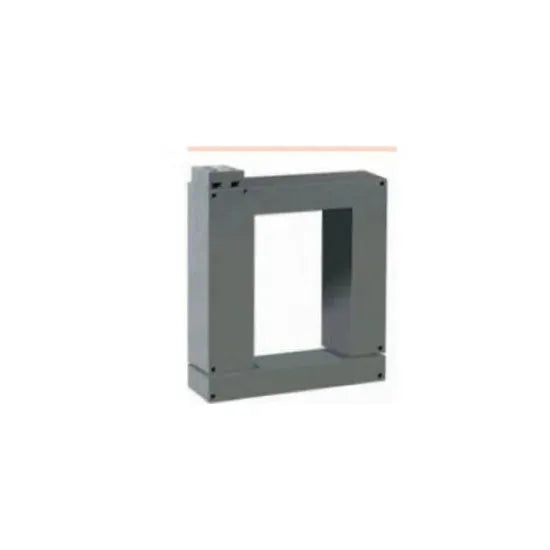

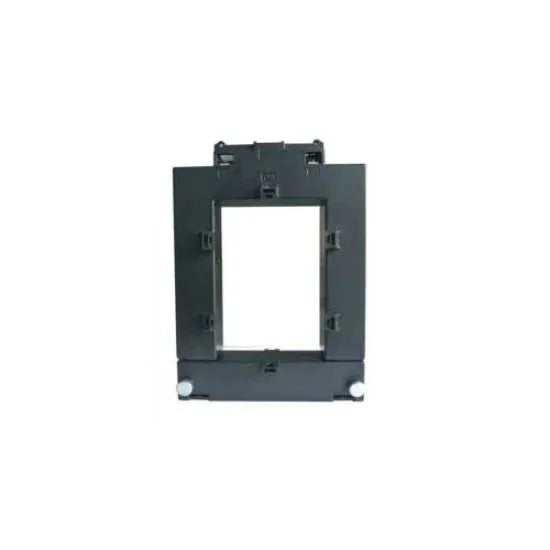

The Revalco TARA-200 Split Core Current Transformer is a professional-grade measuring device designed for easy integration into existing electrical systems without the need to disconnect cables. With a large internal window and robust hinged housing, it is ideal for high-current applications such as energy metering, load analysis, and protection circuits in industrial and commercial environments. It converts high primary currents into standardized 5A or 1A secondary outputs with excellent accuracy and long-term stability, making it a reliable choice for retrofitting and continuous monitoring.
Ideal for energy metering, protection, and monitoring
Large aperture suitable for thick cables or busbars
Maintenance-free operation with long service life
Suitable for retrofit installations in active systems
Product Specifications
Type
current transformer
core type
split-core (openable/hinged design)
accuracy class
class 1 / class 0.5
burden
2.5 va / 5 va / 10 va
frequency
50/60 hz
housing material
flame-retardant thermoplastic
insulation class
class e
mounting method
clip-on / surface mount
operating temperature
-10°c to +55°c
primary current range
400a to 1500a (model dependent)
secondary output
5a or 1a
window (aperture) size
approx. 50 × 80 mm
Product Details
The Revalco TARA-200 Split Core Current Transformer is a professional-grade measuring device designed for easy integration into existing electrical systems without the need to disconnect cables. With a large internal window and robust hinged housing, it is ideal for high-current applications such as energy metering, load analysis, and protection circuits in industrial and commercial environments. It converts high primary currents into standardized 5A or 1A secondary outputs with excellent accuracy and long-term stability, making it a reliable choice for retrofitting and continuous monitoring.
