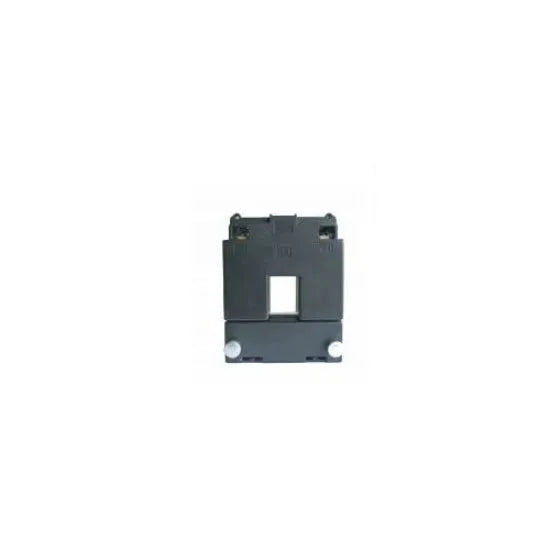

The Revalco TARA-50E Split Core Current Transformer is a compact, high-precision measuring device designed for easy installation without disconnecting existing wiring. Ideal for retrofit projects, energy audits, and ongoing electrical monitoring, its hinged split-core design allows fast, tool-free installation around live conductors. With a wide primary current range and reliable 5A or 1A secondary output, the TARA-50E ensures safe, accurate performance in commercial and industrial electrical systems. Its durable, flame-retardant construction and compliance with IEC standards make it a dependable choice for metering and protection applications.
Split-core (hinged) design for fast, non-intrusive installation
Compact size suitable for tight panel spaces
Converts high primary current to standard 5A or 1A secondary output
Flame-retardant thermoplastic housing for enhanced safety
High accuracy for energy metering and monitoring systems
Ideal for retrofitting without disconnecting cables
Maintenance-free, long-lasting design
Product Specifications
Type
current transformer
core type
split-core, hinged
accuracy class
class 1 / class 0.5
aperture size
approx. 20 × 30 mm
burden
2.5 va / 5 va / 10 va
frequency
50/60 hz
housing material
self-extinguishing, flame-retardant thermoplastic
insulation class
class e
mounting type
clip-on or surface mount
operating temperature
-10°c to +55°c
primary current range
50a to 300a (model dependent)
secondary output
5a or 1a
Product Details
The Revalco TARA-50E Split Core Current Transformer is a compact, high-precision measuring device designed for easy installation without disconnecting existing wiring. Ideal for retrofit projects, energy audits, and ongoing electrical monitoring, its hinged split-core design allows fast, tool-free installation around live conductors. With a wide primary current range and reliable 5A or 1A secondary output, the TARA-50E ensures safe, accurate performance in commercial and industrial electrical systems. Its durable, flame-retardant construction and compliance with IEC standards make it a dependable choice for metering and protection applications.
