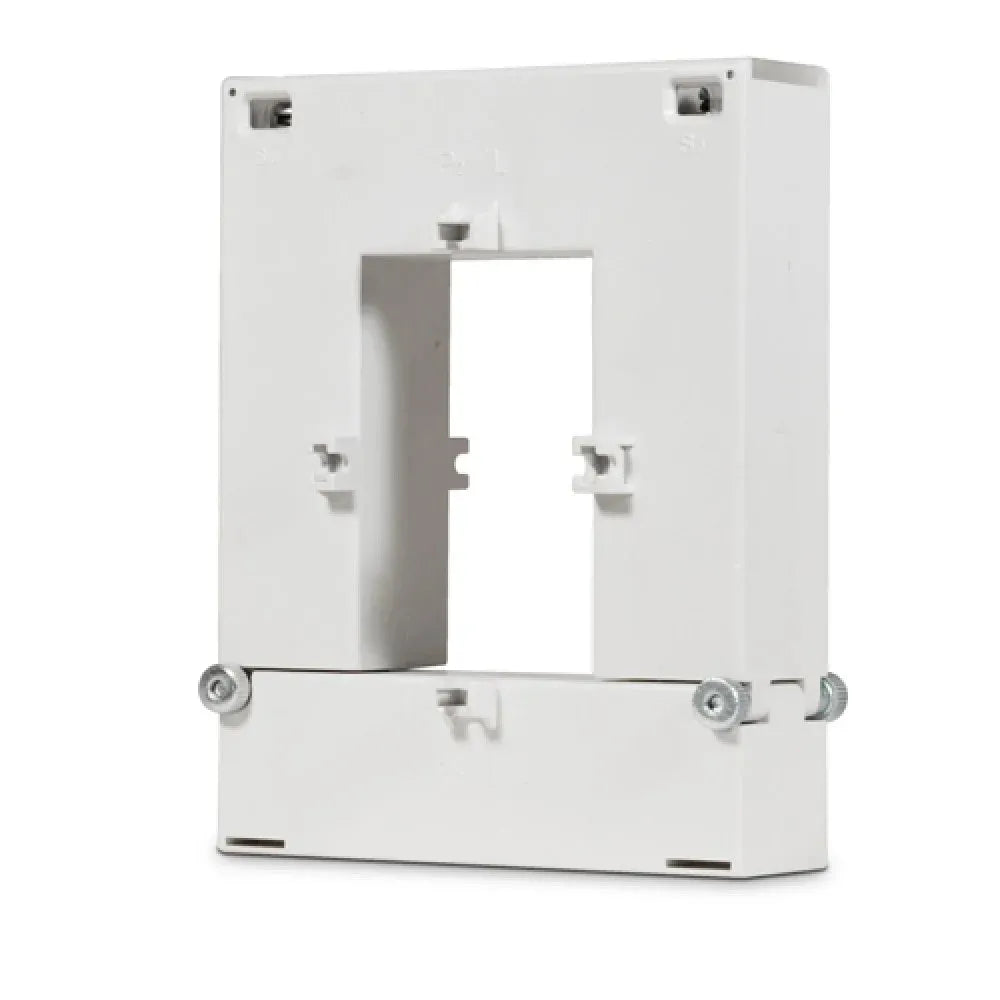

SACI Current Transformer Cable Type Price in Pakistan Rs 85,000/-. The SACI TA125P is a high-quality split-core current transformer designed for easy installation on existing cables without disconnecting them. Specifically built for measuring AC current in power monitoring and energy management systems, it offers reliable performance with high accuracy. Its compact design and split-core construction make it ideal for retrofit applications, allowing quick clamping around cables in confined spaces. Perfect for industrial panels, switchgear, and building automation systems.
Split-core design allows easy installation without disconnecting cables
Available in multiple primary current ratings
Durable, compact, and lightweight housing
High accuracy for reliable current measurement
Ideal for energy monitoring, load analysis, and control systems
Large 125mm inner diameter for thick cables or busbars
Suitable for retrofit and new installations
Product Specifications
Type
current transformer
model
ta125p
accuracy class
class 1 or class 0.5 (depending on model)
core type
split-core (openable)
dielectric strength
3 kv/1min
frequency range
50/60 hz
housing material
flame-retardant thermoplastic
inner window size
ø 125 mm (suitable for large cables or busbars)
insulation class
e
mounting
clamp-on (tool-free installation)
operating temperature
-10°c to +50°c
primary current range
100a to 1000a ac (model-specific)
secondary output
5a or 1a ac
storage temperature
-20°c to +70°c
Product Details
SACI Current Transformer Cable Type Price in Pakistan Rs 85,000/-. The SACI TA125P is a high-quality split-core current transformer designed for easy installation on existing cables without disconnecting them. Specifically built for measuring AC current in power monitoring and energy management systems, it offers reliable performance with high accuracy. Its compact design and split-core construction make it ideal for retrofit applications, allowing quick clamping around cables in confined spaces. Perfect for industrial panels, switchgear, and building automation systems.
