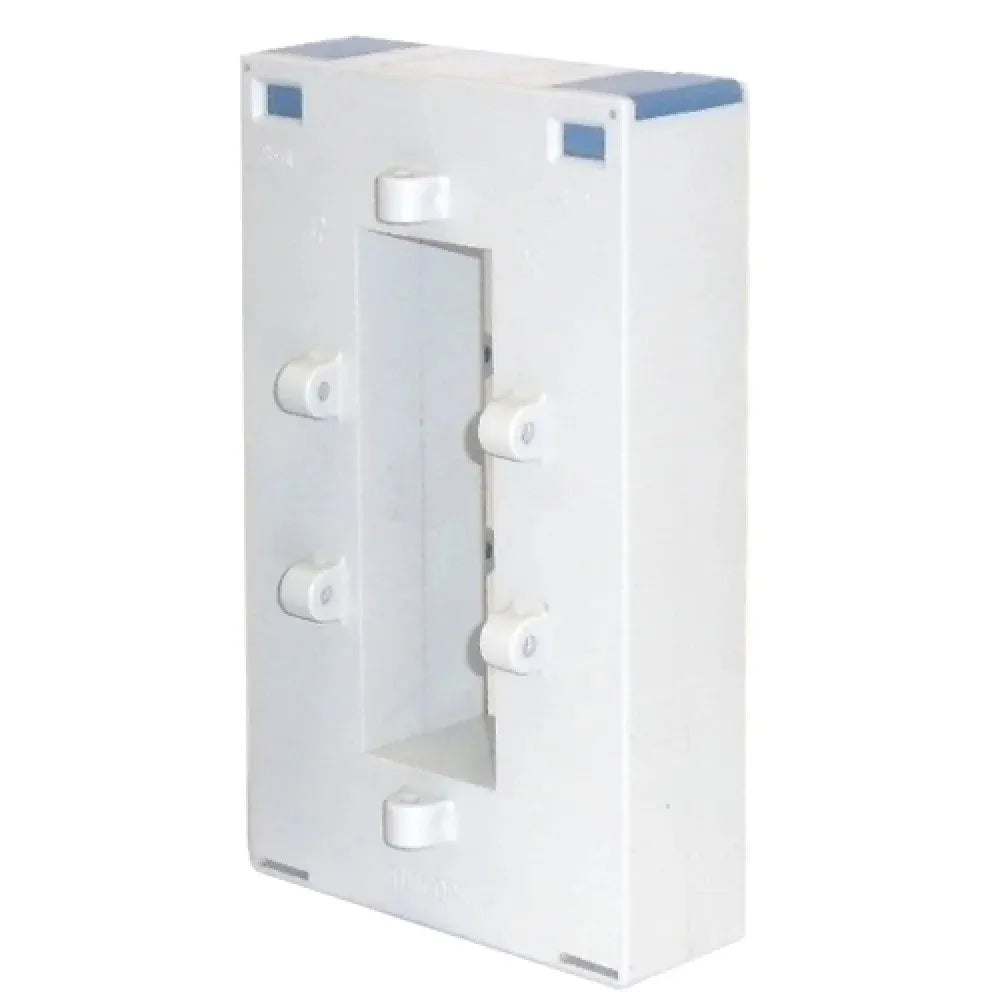

SACI Current Transformer Cable/Bus-Bar Type Price in Pakistan Rs 34,000/-. The SACI TU125PS is a high-performance, closed-core current transformer designed for accurate measurement of AC currents in both cable and bus-bar configurations. Featuring a large 125 mm inner window, it is ideal for high-capacity electrical installations in industrial, commercial, and energy management systems. With excellent electrical insulation and precise output, the TU125PS ensures reliable performance in switchgear, control panels, and metering applications.
Large 125 mm diameter for thick cables and wide bus-bars
Closed-core design for secure fixed installation
Compatible with standard measuring and protection devices
Flame-retardant and durable thermoplastic housing
High measurement accuracy and stable output
Ideal for energy monitoring, load analysis, and industrial metering
Suitable for high-current installations up to 2500A
Product Specifications
Type
current transformer
model
tu125ps
accuracy class
class 1 or class 0.5 (depending on model)
core type
closed-core (solid ring)
dielectric strength
3 kv/1 minute
frequency
50/60 hz
housing material
flame-retardant thermoplastic
inner window size
ø 125 mm
insulation class
e
mounting type
fixed mount (panel or base)
operating temperature
-10°c to +50°c
primary current range
300a to 2500a ac (model-specific)
secondary output
5a or 1a ac
storage temperature
-20°c to +70°c
Product Details
SACI Current Transformer Cable/Bus-Bar Type Price in Pakistan Rs 34,000/-. The SACI TU125PS is a high-performance, closed-core current transformer designed for accurate measurement of AC currents in both cable and bus-bar configurations. Featuring a large 125 mm inner window, it is ideal for high-capacity electrical installations in industrial, commercial, and energy management systems. With excellent electrical insulation and precise output, the TU125PS ensures reliable performance in switchgear, control panels, and metering applications.
