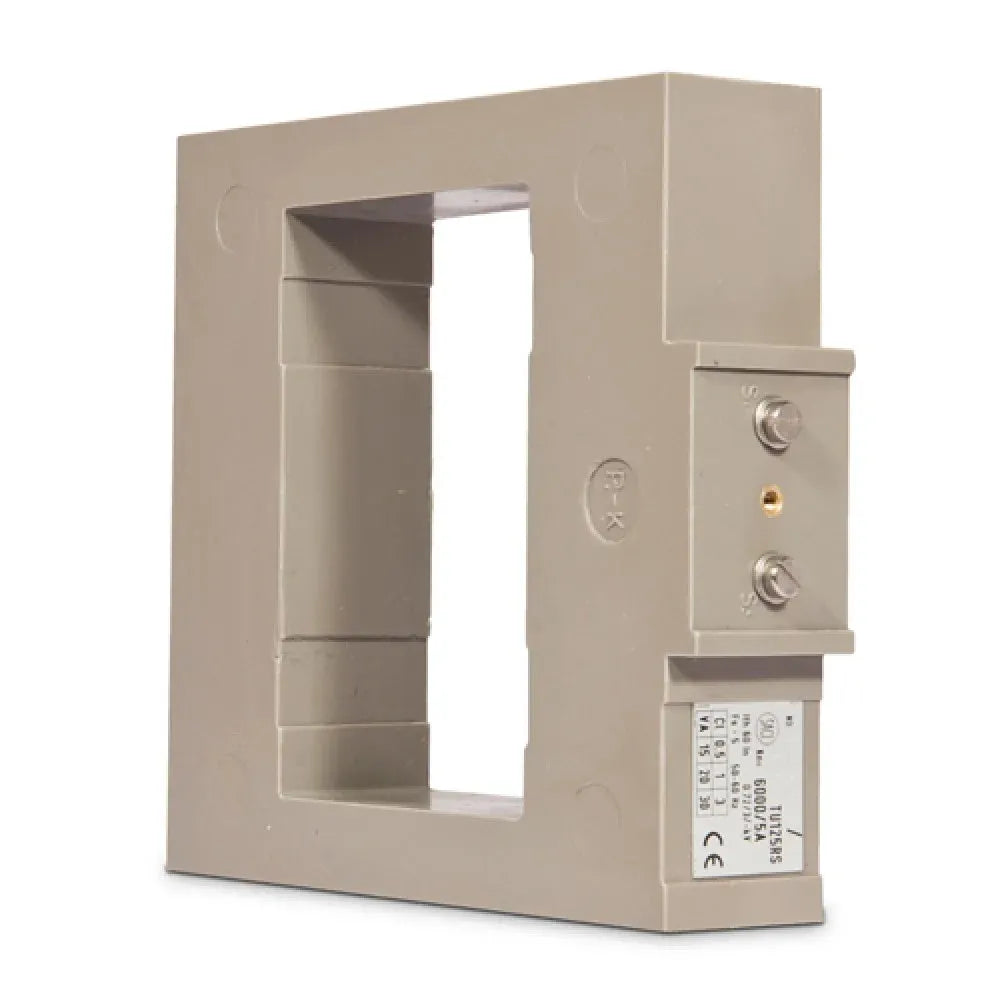

SACI Current Transformer Price in Pakistan Rs 146,500/-. The SACI TU125RS is a precision closed-core current transformer designed for reliable and accurate AC current measurement in cable and bus-bar applications. Featuring a robust construction with a 125 mm internal window, it supports high-current installations in industrial control systems, energy metering setups, and electrical switchgear. Its durable thermoplastic body, high dielectric strength, and multiple primary current options make it ideal for both protection and measurement in fixed installations.
Closed-core design for stable, permanent installations
Compatible with standard metering and protection devices
Flame-retardant body with strong dielectric insulation
High accuracy for energy metering and load monitoring
Ideal for industrial switchboards, control panels, and power monitoring systems
Large 125 mm aperture supports thick cables and bus-bars
Supports a wide range of primary current values
Product Specifications
Type
current transformer
model
tu125rs
accuracy class
class 0.5 or class 1
core type
closed-core (solid ring)
dielectric strength
3 kv for 1 minute
frequency
50/60 hz
housing material
flame-retardant thermoplastic
inner window size
ø 125 mm
insulation class
e
mounting type
base or panel mount (fixed installation)
operating temperature
-10°c to +50°c
primary current range
300a to 2500a ac (depending on model)
secondary output
5a or 1a ac
storage temperature
-20°c to +70°c
Product Details
SACI Current Transformer Price in Pakistan Rs 146,500/-. The SACI TU125RS is a precision closed-core current transformer designed for reliable and accurate AC current measurement in cable and bus-bar applications. Featuring a robust construction with a 125 mm internal window, it supports high-current installations in industrial control systems, energy metering setups, and electrical switchgear. Its durable thermoplastic body, high dielectric strength, and multiple primary current options make it ideal for both protection and measurement in fixed installations.
