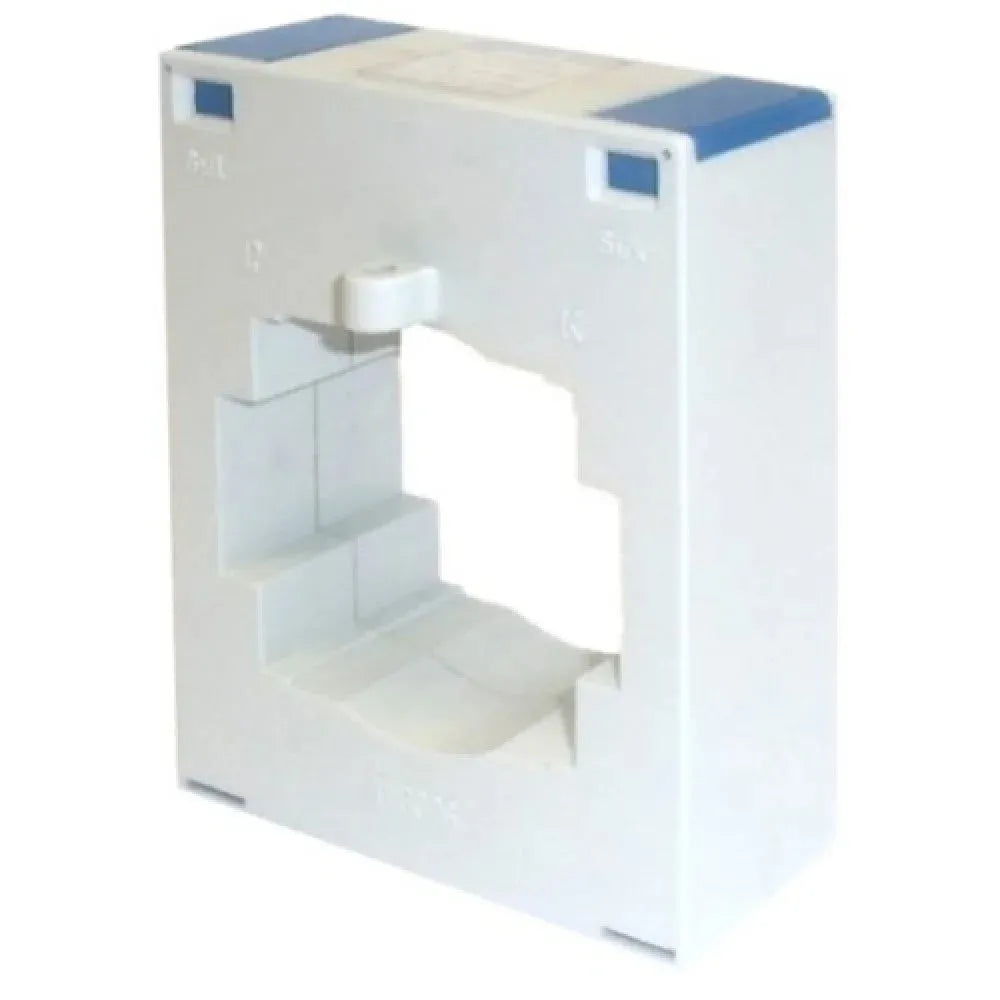

SACI Current Transformer Price in Pakistan Rs 21,500/-. The SACI TU80PS is a high-performance closed-core current transformer engineered for precise AC current measurement in cable and bus-bar applications. With a generous 80 mm internal window, it is ideal for medium to high current installations in energy management systems, switchgear, and industrial automation panels. Built for durability and accuracy, the TU80PS offers excellent insulation, robust flame-retardant housing, and compatibility with standard metering equipment, making it a reliable solution for permanent installations.
High insulation and flame-retardant casing for added safety
Ideal for high-capacity power distribution and monitoring
Suitable for industrial panels, energy metering, and automation systems
Supports both 1A and 5A standard secondary outputs
Product Specifications
Type
current transformer
model
tu80ps
accuracy class
class 1 or class 0.5
core type
closed-core (solid ring)
dielectric strength
3 kv for 1 minute
frequency
50/60 hz
housing material
flame-retardant thermoplastic
inner window size
ø 80 mm
insulation class
e
mounting type
fixed (base or panel mount)
operating temperature
-10°c to +50°c
primary current range
100a to 1000a ac (depending on model)
secondary output
5a or 1a ac
storage temperature
-20°c to +70°c
Product Details
SACI Current Transformer Price in Pakistan Rs 21,500/-. The SACI TU80PS is a high-performance closed-core current transformer engineered for precise AC current measurement in cable and bus-bar applications. With a generous 80 mm internal window, it is ideal for medium to high current installations in energy management systems, switchgear, and industrial automation panels. Built for durability and accuracy, the TU80PS offers excellent insulation, robust flame-retardant housing, and compatibility with standard metering equipment, making it a reliable solution for permanent installations.
