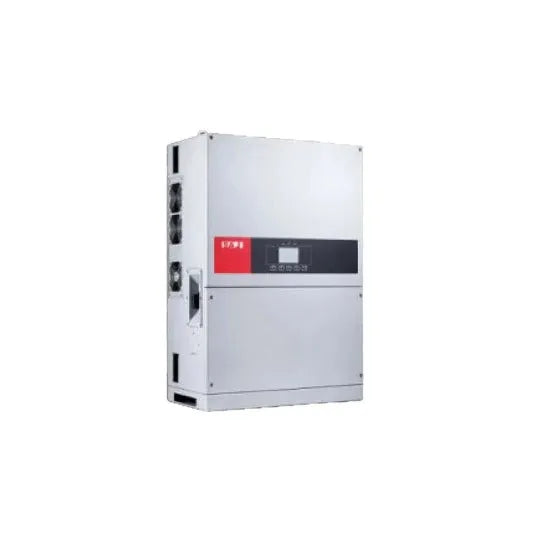

Saj 20kw 2 MPPT Grid Tied Inverter Price in Pakistan is Rs. /-.
The Saj 20kw 2 MPPT 3 Phase Grid Tied Inverter offers optimized MPPT efficiency, wide input voltage range, and convenient installation features. With multiple communication interfaces and remote monitoring capabilities, it ensures easy maintenance and efficient energy management. Its durable design, including IP65 protection and aluminum casing, enhances reliability and longevity, making it an ideal choice for solar power systems.
IP65 protection for indoor and outdoor installation
Aluminum case design to enhance heat dissipation and
prevent rust corrosion, prolong the lifetime
Built-in high voltage DC switch for safer maintenance and application
Built-in convective fans to lower the temperature of core components, prolong the lifetime
Natural convection for longer life
Product Specifications
Certification
ce, iso9001, tuv/g59
type
dc/ac inverters
circuit topologies
full-bridge type
max. dc voltage [v]
1000
min. dc voltage[v]
180v
power factor,adjustable(cosφ)
0.8 leading~0.8 lagging
max. efficiency
98.5%
specification
640*450*232 (mm)
nature of source flow
active inverter
output power
20000w
power source
solar power
nature of wave string
sine wave inverter
mppt voltage range [v]
180-900
number of mppt
3
total harmonic distortion (thdi)
< 3% (at nominal power)
mppt accuracy
>99.5%
datalogger & communication
2*rs485/1*rs232
Product Details
Saj 20kw 2 MPPT Grid Tied Inverter Price in Pakistan is Rs. /-.
The Saj 20kw 2 MPPT 3 Phase Grid Tied Inverter offers optimized MPPT efficiency, wide input voltage range, and convenient installation features. With multiple communication interfaces and remote monitoring capabilities, it ensures easy maintenance and efficient energy management. Its durable design, including IP65 protection and aluminum casing, enhances reliability and longevity, making it an ideal choice for solar power systems.
