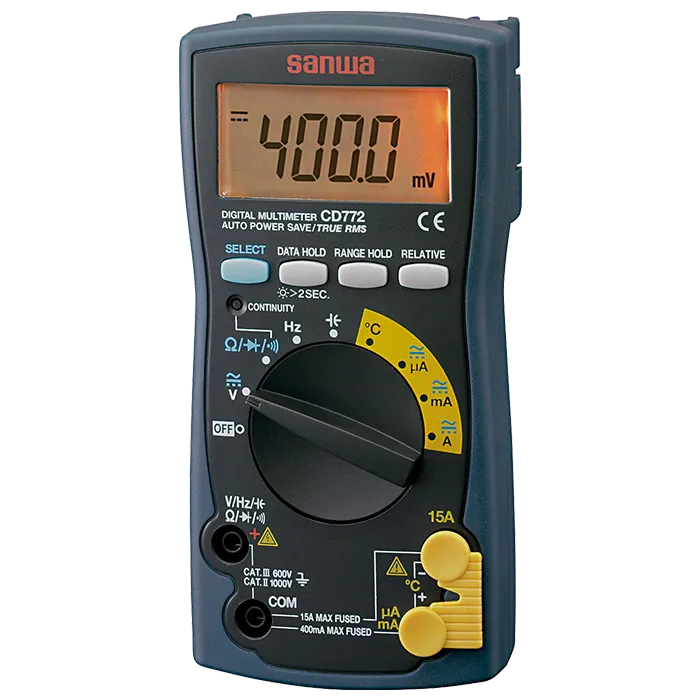

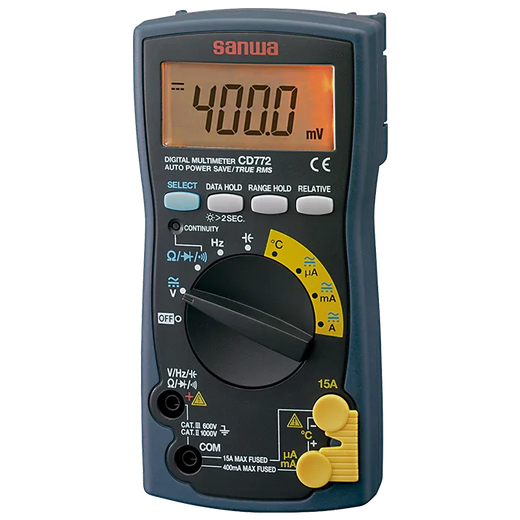

Sanwa CD772 True RMS Digital Multimeter In Pakistan Rs 57,000/-. The Sanwa CD772 is a standard-type digital multimeter equipped with True RMS capability, making it an essential tool for precise AC measurements even in non-sinusoidal waveforms. Designed for professionals, technicians, and advanced users, the CD772 supports a broad range of functions including voltage, current, resistance, frequency, capacitance, diode testing, and continuity. With a high-visibility 6000-count backlit LCD, data hold, and auto power-off features, it ensures convenience, accuracy, and efficiency in both field and bench applications. Its robust build and CAT III 600V rating provide dependable safety and performance.
Measures AC/DC voltage and current, resistance, frequency, and capacitance
Protective case included
Relative measurement mode
Product Specifications
Type
digital multimeter
display count
6000 counts with backlight
ac current (true rms)
600µa to 10a
ac voltage (true rms)
6v to 600v
auto power off
yes (after approx. 30 minutes)
capacitance
6nf to 1000µf
continuity test
yes (with buzzer)
data hold
yes
dc current
600µa to 10a
dc voltage
600mv to 600v
dimensions
approx. 166 × 82 × 44 mm
diode test
yes
frequency
10hz to 10mhz
power supply
2 × aaa batteries
range hold
yes
relative measurement
yes
resistance
600o to 60mo
safety standard
iec61010 cat iii 600v
weight
approx. 340g (with battery)
Product Details
Sanwa CD772 True RMS Digital Multimeter In Pakistan Rs 57,000/-. The Sanwa CD772 is a standard-type digital multimeter equipped with True RMS capability, making it an essential tool for precise AC measurements even in non-sinusoidal waveforms. Designed for professionals, technicians, and advanced users, the CD772 supports a broad range of functions including voltage, current, resistance, frequency, capacitance, diode testing, and continuity. With a high-visibility 6000-count backlit LCD, data hold, and auto power-off features, it ensures convenience, accuracy, and efficiency in both field and bench applications. Its robust build and CAT III 600V rating provide dependable safety and performance.
