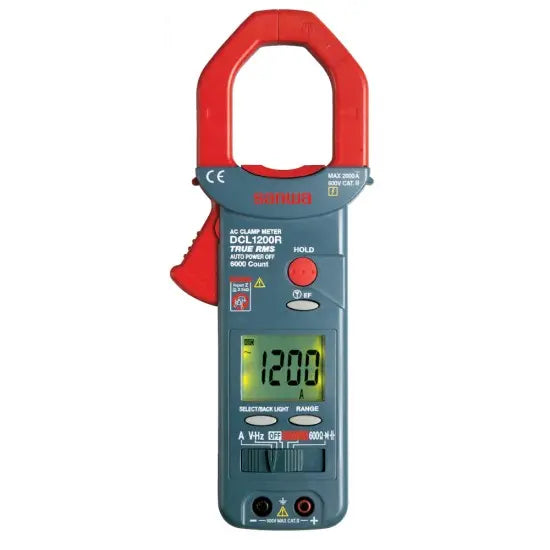

Sanwa DCL1200R Digital Clamp Meter In Pakistan Rs 40,000/-. The Sanwa DCL1200R is a robust and reliable True RMS clamp meter designed for professional electricians and maintenance engineers. Capable of measuring up to 1200A AC current, this versatile tool also supports AC/DC voltage, resistance, continuity, frequency, and diode testing. It features a large 6000-count LCD display with backlight for clear visibility, even in dim environments. Built with safety and convenience in mind, the DCL1200R offers auto-ranging, a non-contact voltage (NCV) detector, and a data hold function. With its compact build, precision, and durable design, it's ideal for industrial and high-power electrical system diagnostics.
True RMS for accurate AC current and voltage readings
Auto power-off for extended battery life
Auto-ranging for ease of use
CAT IV 300V / CAT III 600V safety ratings
Data hold and MAX/MIN recording functions
Diode check functionality
Large 6000-count backlit LCD display
Measures up to 1200A AC current
Measures voltage, resistance, frequency, and continuity
Non-contact voltage (NCV) detection
Product Specifications
Type
clamp meter
ac current
0.1a to 1200a (true rms)
ac voltage
0.1v to 600v (true rms)
auto power off
after approx. 30 minutes
continuity check
yes (with buzzer)
data hold / max / min
yes
dc voltage
0.1v to 600v
dimensions
approx. 204 × 70 × 38 mm
diode test
yes
display count
6000 counts
frequency
10hz to 10khz
jaw opening
approx. 33mm
ncv detection
yes
power supply
2 × aaa batteries
resistance
0.1o to 60mo
safety standards
iec61010-1 cat iv 300v / cat iii 600v
weight
approx. 270g (including batteries)
Product Details
Sanwa DCL1200R Digital Clamp Meter In Pakistan Rs 40,000/-. The Sanwa DCL1200R is a robust and reliable True RMS clamp meter designed for professional electricians and maintenance engineers. Capable of measuring up to 1200A AC current, this versatile tool also supports AC/DC voltage, resistance, continuity, frequency, and diode testing. It features a large 6000-count LCD display with backlight for clear visibility, even in dim environments. Built with safety and convenience in mind, the DCL1200R offers auto-ranging, a non-contact voltage (NCV) detector, and a data hold function. With its compact build, precision, and durable design, it's ideal for industrial and high-power electrical system diagnostics.
