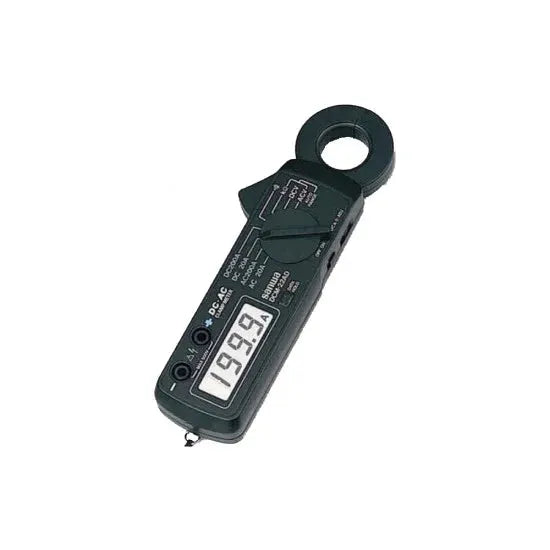

Sanwa DCM-22AD Digital Clamp Meter In Pakistan Rs 75,000/-. The Sanwa DCM-22AD is a high-precision AC/DC clamp meter equipped with True RMS functionality, making it ideal for accurate measurements in industrial, commercial, and residential electrical applications. It supports a wide range of measurements including AC/DC current, voltage, resistance, frequency, and continuity. Its compact body and wide jaw opening allow for convenient testing of thick conductors, while the data hold, max/min, and backlit LCD features enhance usability in various working environments. Designed for safety and reliability, the DCM-22AD is an excellent tool for technicians, electricians, and maintenance professionals.
Measures voltage, resistance, frequency, and continuity
Product Specifications
Type
clamp meter
ac current (true rms)
0.1a to 400a
ac voltage (true rms)
0.1v to 600v
auto power off
after approx. 15 minutes
clamp jaw opening
max. approx. 30mm
continuity test
yes (with buzzer)
data hold / max / min
yes
dc current
0.1a to 400a
dc voltage
0.1v to 600v
dimensions
approx. 193 × 60 × 33 mm
diode test
yes
display count
4000 counts
frequency
10hz to 1khz
ncv detection
not included
power supply
2 × aaa batteries
resistance
0.1o to 40mo
safety standard
iec61010 cat iii 600v
weight
approx. 230g (including batteries)
Product Details
Sanwa DCM-22AD Digital Clamp Meter In Pakistan Rs 75,000/-. The Sanwa DCM-22AD is a high-precision AC/DC clamp meter equipped with True RMS functionality, making it ideal for accurate measurements in industrial, commercial, and residential electrical applications. It supports a wide range of measurements including AC/DC current, voltage, resistance, frequency, and continuity. Its compact body and wide jaw opening allow for convenient testing of thick conductors, while the data hold, max/min, and backlit LCD features enhance usability in various working environments. Designed for safety and reliability, the DCM-22AD is an excellent tool for technicians, electricians, and maintenance professionals.
