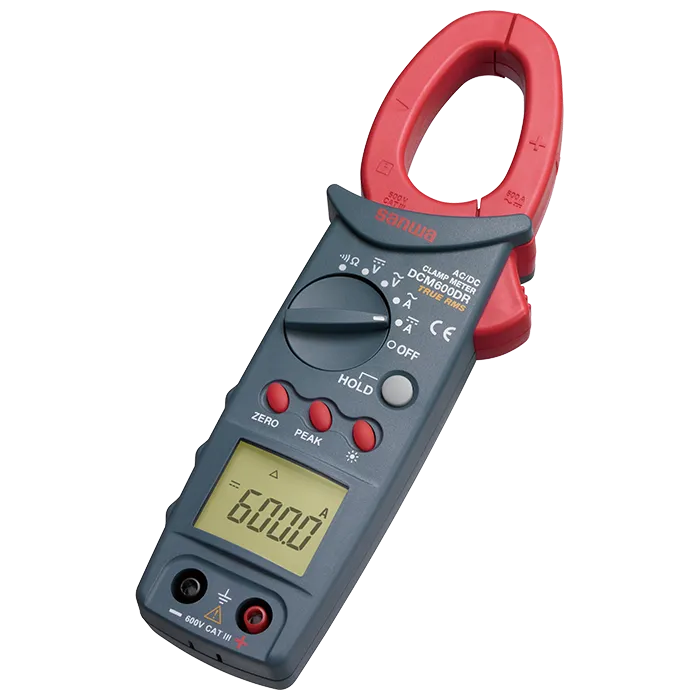

Sanwa DCM600DR Digital Clamp Meter In Pakistan Rs 48,000/-. The Sanwa DCM600DR Clamp Meter is a compact, reliable, and high-precision digital clamp meter designed for accurate AC/DC current measurement up to 600A. Engineered with True RMS technology, it ensures precise readings even in environments with non-linear loads. The meter features a dual display, backlight, and essential functions like data hold, peak hold, and continuity testing. Built for safety and durability, the DCM600DR is ideal for professional electricians, technicians, and maintenance engineers working in residential, commercial, or industrial settings.
True RMS for accurate readings under all load types
Auto power-off to conserve battery
Compact, lightweight, and ergonomic design
Continuity check with buzzer
Dual display with backlight for clear data visibility
Durable construction for professional environments
Frequency and resistance measurement capability
Measures AC/DC current up to 600A
Peak hold and data hold functions
Safety-rated for industrial-grade applications
Product Specifications
Type
clamp meter
display
dual digital display with backlight
ac current range
0.01a to 600a (true rms)
ac voltage range
0.01v to 1000v (true rms)
clamp jaw size
up to 33mm diameter
continuity test
with buzzer
dc current range
0.01a to 600a
dc voltage range
0.01v to 1000v
dimensions
approx. 243 × 80 × 35mm
frequency range
10hz to 10mhz
power supply
2 x aa batteries
resistance range
up to 60mo
safety rating
cat iv 600v / cat iii 1000v
weight
approx. 400g
Product Details
Sanwa DCM600DR Digital Clamp Meter In Pakistan Rs 48,000/-. The Sanwa DCM600DR Clamp Meter is a compact, reliable, and high-precision digital clamp meter designed for accurate AC/DC current measurement up to 600A. Engineered with True RMS technology, it ensures precise readings even in environments with non-linear loads. The meter features a dual display, backlight, and essential functions like data hold, peak hold, and continuity testing. Built for safety and durability, the DCM600DR is ideal for professional electricians, technicians, and maintenance engineers working in residential, commercial, or industrial settings.
