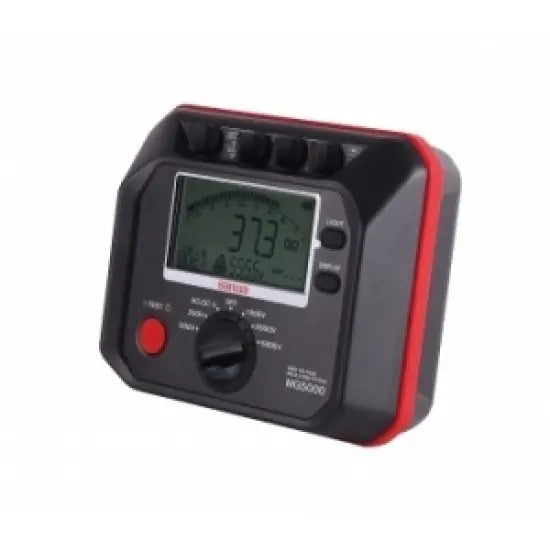

Sanwa MG5000 Insulation Resistance Tester In Pakistan Rs 135,000/-. The Sanwa MG5000 is a professional-grade digital insulation resistance tester built for high-voltage testing environments. With test voltages ranging from 250V to 1000V and an insulation resistance measuring range of up to 5000 MΩ, this advanced device delivers precise and stable performance for industrial, commercial, and electrical maintenance applications. Its rugged design, large backlit LCD, and safety features such as auto discharge and over-range indication make it an ideal tool for engineers and electricians who demand accuracy, reliability, and safety in the field.
Test voltage options of 125V, 250V, 500V, and 1000V
Auto discharge function for user safety
Auto power off to conserve battery life
Built-in voltage measurement up to 600V AC/DC
CAT IV 600V safety rating for high protection
Data hold and memory function
Durable, portable design for field use
Large backlit LCD with analog bar graph display
Live circuit warning with automatic blocking
Measures insulation resistance up to 5000MO
Product Specifications
Type
insulation tester
insulation resistance ranges
0.0 to 5000mo
accessories
test leads, carrying case, user manual, batteries
auto discharge
yes
continuity test
yes, with buzzer
data hold
yes
dimensions
approx. 175 × 120 × 65 mm
display
digital lcd with analog bar graph
live circuit detection
yes
power supply
aa x 6 (r6) batteries
safety rating
cat iv 600v
test voltages
125v / 250v / 500v / 1000v
voltage measurement range
0 to 600v ac/dc
weight
approx. 600g (including batteries)
Product Details
Sanwa MG5000 Insulation Resistance Tester In Pakistan Rs 135,000/-. The Sanwa MG5000 is a professional-grade digital insulation resistance tester built for high-voltage testing environments. With test voltages ranging from 250V to 1000V and an insulation resistance measuring range of up to 5000 MΩ, this advanced device delivers precise and stable performance for industrial, commercial, and electrical maintenance applications. Its rugged design, large backlit LCD, and safety features such as auto discharge and over-range indication make it an ideal tool for engineers and electricians who demand accuracy, reliability, and safety in the field.
