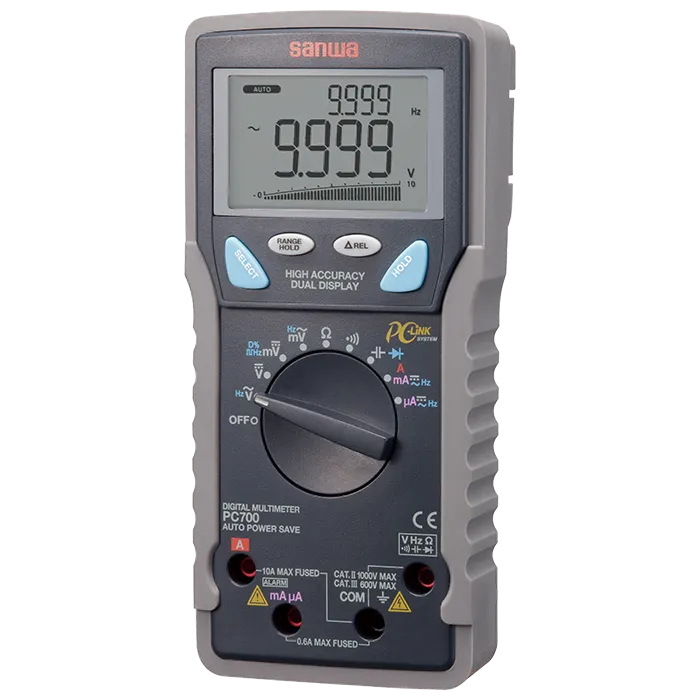

Sanwa PC700 Multimeter In Pakistan Rs 48,000/-. The Sanwa PC700 Digital Multimeter is a high-performance True RMS multimeter engineered for precision, safety, and durability. Designed for professional electricians, engineers, and technicians, the PC700 delivers accurate readings of AC/DC voltage, current, resistance, frequency, capacitance, temperature, and more. With a robust body, large backlit display, and versatile measurement functions, it excels in demanding industrial, laboratory, and field environments. Its advanced features, such as data hold, relative mode, and auto/manual ranging, make it a reliable tool for complex troubleshooting and diagnostics.
True RMS for precise AC measurement under all waveforms
6000-count large LCD with backlight for clear visibility
Auto and manual ranging for flexible use
Data hold, max/min memory, and relative value function
Diode check and continuity test with buzzer
Ideal for professionals in electrical, electronic, and industrial sectors
Measures AC/DC voltage & current, resistance, frequency, and capacitance
Rugged and ergonomic design for field and lab use
Safety rated CAT IV 600V / CAT III 1000V for industrial-grade protection
Temperature measurement with included K-type thermocouple
Product Specifications
Type
digital multimeter
display
6000 count lcd with backlight
ac current
600µa / 6000µa / 60ma / 600ma / 6a / 10a
ac voltage
6v / 60v / 600v / 1000v (true rms)
auto/manual range selection
yes
capacitance
up to 60mf
data hold / max/min / relative mode
yes
dc current
600µa / 6000µa / 60ma / 600ma / 6a / 10a
dc voltage
600mv / 6v / 60v / 600v / 1000v
dimensions
174 × 85 × 52mm
diode test & continuity
yes (with buzzer)
frequency
10hz – 1mhz
input protection
yes (fused & overload protection)
power supply
1 x 9v battery
resistance
up to 60mo
safety rating
cat iv 600v / cat iii 1000v
temperature measurement
-50°c to +1000°c (with k-type thermocouple)
weight
approx. 430g
Product Details
Sanwa PC700 Multimeter In Pakistan Rs 48,000/-. The Sanwa PC700 Digital Multimeter is a high-performance True RMS multimeter engineered for precision, safety, and durability. Designed for professional electricians, engineers, and technicians, the PC700 delivers accurate readings of AC/DC voltage, current, resistance, frequency, capacitance, temperature, and more. With a robust body, large backlit display, and versatile measurement functions, it excels in demanding industrial, laboratory, and field environments. Its advanced features, such as data hold, relative mode, and auto/manual ranging, make it a reliable tool for complex troubleshooting and diagnostics.
