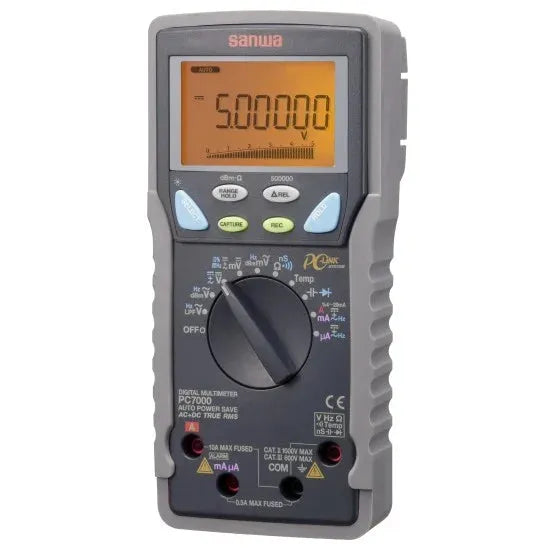

Sanwa PC7000 Multimeters In Pakistan Rs 125,000/-. The Sanwa PC7000 is a high-accuracy, high-resolution digital multimeter designed for advanced users and professionals who demand precision and reliability. Featuring a 50,000-count dual display, True RMS measurements, and an ultra-low burden voltage on current ranges, the PC7000 delivers superior accuracy for sensitive and complex electronics work. It supports a wide range of functions including voltage, current, resistance, frequency, capacitance, temperature, and continuity, with advanced features like data logging, peak hold, and dual display. Rugged, intelligent, and compliant with CAT IV 600V safety standards, it’s perfect for R&D labs, industrial applications, and high-end diagnostics.
Data logging capability with optional PC connection
Dual display for simultaneous reading of two parameters
Industrial-grade safety: CAT IV 600V / CAT III 1000V
Robust design with overload protection and auto power off
Temperature measurement support with included thermocouple
Ultra-low burden voltage for precision current measurements
Wide voltage and current range for advanced diagnostics
Product Specifications
Type
digital multimeter
display
dual display, 50,000 count lcd with backlight
ac current
0.5µa to 10a (true rms)
ac voltage
0.05v to 1000v (true rms)
capacitance
up to 100mf
data hold / relative / peak hold
yes
dc current
0.01µa to 10a
dc voltage
0.01mv to 1000v
dimensions
192 × 95 × 55mm
diode test / continuity
yes (with buzzer)
frequency
0.01hz to 1mhz
input protection
overload and fuse protection
logging function
yes (up to 10,000 data points with optional pc interface)
power supply
6 x aaa batteries or ac adapter (optional)
resistance
up to 50mo
safety rating
cat iv 600v / cat iii 1000v
temperature
-50°c to +1000°c (with k-type thermocouple)
weight
approx. 550g
Product Details
Sanwa PC7000 Multimeters In Pakistan Rs 125,000/-. The Sanwa PC7000 is a high-accuracy, high-resolution digital multimeter designed for advanced users and professionals who demand precision and reliability. Featuring a 50,000-count dual display, True RMS measurements, and an ultra-low burden voltage on current ranges, the PC7000 delivers superior accuracy for sensitive and complex electronics work. It supports a wide range of functions including voltage, current, resistance, frequency, capacitance, temperature, and continuity, with advanced features like data logging, peak hold, and dual display. Rugged, intelligent, and compliant with CAT IV 600V safety standards, it’s perfect for R&D labs, industrial applications, and high-end diagnostics.
