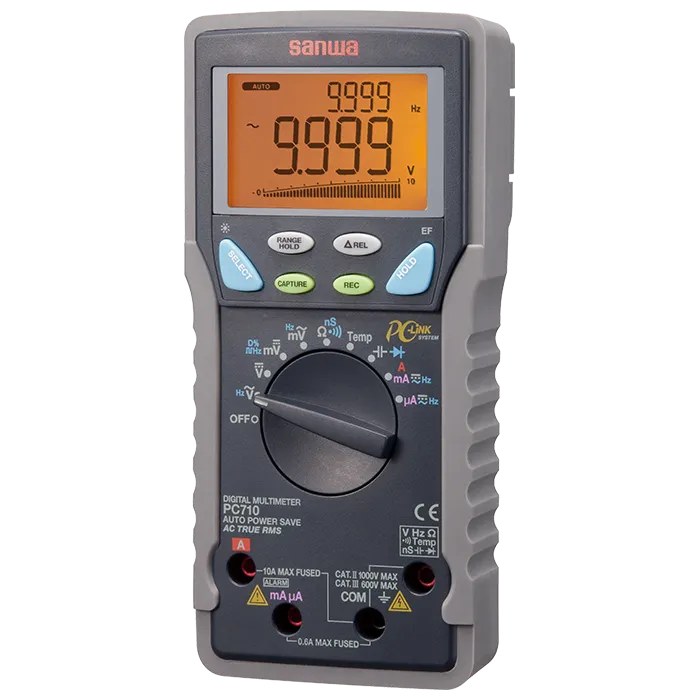

Sanwa PC710 Multimeters Price In Pakistan Rs 75,000/-. The Sanwa PC710 is a high-accuracy, True RMS digital multimeter built for demanding electrical and electronic measurements. It features a 6,000-count backlit LCD, True RMS for precise AC measurements, and a wide range of functions including AC/DC voltage, current, resistance, frequency, capacitance, and temperature. Designed for professional electricians, engineers, and technicians, the PC710 offers enhanced reliability, safety, and convenience with features like data hold, relative measurement, auto/manual range selection, and a robust, ergonomic design. Its CAT III 1000V / CAT IV 600V rating makes it suitable for both field and laboratory use.
True RMS for accurate AC voltage and current readings
6000-count backlit LCD for clear, easy-to-read values
Auto/manual range selection for user flexibility
CAT IV 600V / CAT III 1000V rated for industrial safety compliance
Compact and durable design for field or bench work
Continuity buzzer and diode test for circuit troubleshooting
Data hold, relative mode, and max/min recording for efficient diagnostics
High accuracy across all measurement functions
Measures AC/DC voltage and current, resistance, frequency, capacitance, and temperature
Overload and input protection for safety
Product Specifications
Type
digital multimeter
display
6000-count lcd with backlight
ac current (true rms)
600µa / 6000µa / 60ma / 600ma / 6a / 10a
ac voltage (true rms)
6v / 60v / 600v / 1000v
auto/manual ranging
yes
capacitance
up to 100µf
data hold / relative / max-min
yes
dc current
600µa / 6000µa / 60ma / 600ma / 6a / 10a
dc voltage
600mv / 6v / 60v / 600v / 1000v
dimensions
185 × 85 × 50mm
diode test / continuity
yes (with buzzer)
frequency
10hz to 10mhz
input protection
fuse & overload protected
power supply
1 x 9v battery
resistance
up to 60mo
safety rating
cat iv 600v / cat iii 1000v
temperature
-50°c to +1000°c (k-type thermocouple)
weight
approx. 400g
Product Details
Sanwa PC710 Multimeters Price In Pakistan Rs 75,000/-. The Sanwa PC710 is a high-accuracy, True RMS digital multimeter built for demanding electrical and electronic measurements. It features a 6,000-count backlit LCD, True RMS for precise AC measurements, and a wide range of functions including AC/DC voltage, current, resistance, frequency, capacitance, and temperature. Designed for professional electricians, engineers, and technicians, the PC710 offers enhanced reliability, safety, and convenience with features like data hold, relative measurement, auto/manual range selection, and a robust, ergonomic design. Its CAT III 1000V / CAT IV 600V rating makes it suitable for both field and laboratory use.
