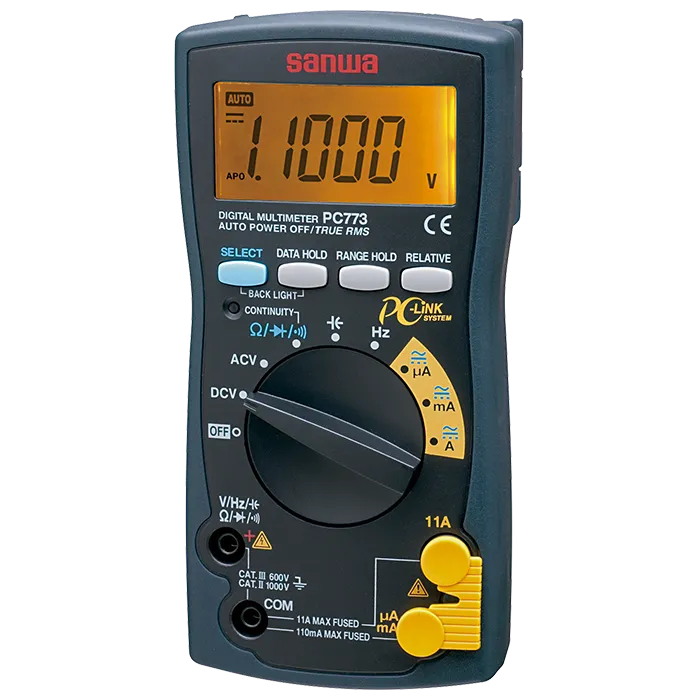

Sanwa PC773 Multimeter Price In Pakistan Rs 34,500/-. The Sanwa PC773 is a high-performance True RMS digital multimeter designed for professional engineers and technicians who need accuracy, durability, and versatility in one device. With its 6000-count backlit display, this multimeter provides precise readings of voltage, current, resistance, frequency, capacitance, and temperature. It also includes continuity and diode testing functions. Engineered with robust safety features and a user-friendly interface, the PC773 is ideal for fieldwork, industrial environments, and precision electronics applications. It meets the latest safety standards (CAT IV 600V / CAT III 1000V), offering reliable operation even in high-energy settings.
True RMS for accurate AC voltage and current measurement
6000-count LCD with backlight for clear readability
Auto and manual range modes
Continuity buzzer and diode test functionality
Data hold, max/min, and relative value functions
High accuracy and reliability for critical applications
Measures voltage, current, resistance, frequency, capacitance, and temperature
Meets CAT IV 600V / CAT III 1000V safety standards
Rugged construction with overload protection
Suitable for industrial, laboratory, and field use
Product Specifications
Type
digital multimeter
display
6000-count lcd with backlight
ac current (true rms)
600µa / 6000µa / 60ma / 600ma / 6a / 10a
ac voltage (true rms)
6v / 60v / 600v / 1000v
capacitance
up to 100µf
dc current
600µa / 6000µa / 60ma / 600ma / 6a / 10a
dc voltage
600mv / 6v / 60v / 600v / 1000v
dimensions
approx. 185 × 85 × 50 mm
diode/continuity test
yes (audible buzzer)
frequency
10hz to 10mhz
functions
data hold, max/min, relative measurement
input protection
internal fuse and overload protection
power supply
9v battery
range selection
auto and manual
resistance
up to 60mo
safety rating
cat iv 600v / cat iii 1000v
temperature
-50°c to +1000°c (k-type thermocouple supported)
weight
approx. 400g
Product Details
Sanwa PC773 Multimeter Price In Pakistan Rs 34,500/-. The Sanwa PC773 is a high-performance True RMS digital multimeter designed for professional engineers and technicians who need accuracy, durability, and versatility in one device. With its 6000-count backlit display, this multimeter provides precise readings of voltage, current, resistance, frequency, capacitance, and temperature. It also includes continuity and diode testing functions. Engineered with robust safety features and a user-friendly interface, the PC773 is ideal for fieldwork, industrial environments, and precision electronics applications. It meets the latest safety standards (CAT IV 600V / CAT III 1000V), offering reliable operation even in high-energy settings.
