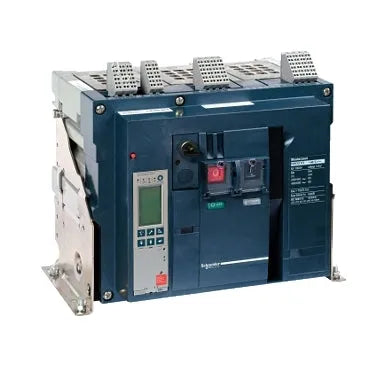

Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA
  • Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA
Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA
Availability: In Stock

Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA

Product SKU: NW08H1-2-0E-800A-3P
Rs.950,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range MasterPacT
Product Name MasterPact NW
Circuit Breaker Name MasterPact NW08H1
Product Type Circuit Breaker
Application Power Distribution Protection
Poles 3P
Control Unit Without Control Unit
Rated Current 800A at 40°C
Performance Type H1 65kA 440V AC
Operational Voltage 690V AC 50/60Hz
Isolation Suitability Yes (EN/IEC 60947-2)
Selectivity Category Category B
Control Type Push-Button
Mounting Mode Fixed
Electrical Specifications Ultimate Short-Circuit Breaking Capacity (Icu)
Service Breaking Capacity (Ics) 65kA at 220/415V AC 50/60Hz 65kA at 440V AC 50/60Hz 65kA at 525V AC 50/60Hz 65kA at 690V AC 50/60Hz
Short-Time Withstand Current (Icw) 65kA for 1s 36kA for 3s
Short-Circuit Making Capacity (Icm) 143kA at 220/415V AC 50/60Hz 143kA at 440V AC 50/60Hz 143kA at 525V AC 50/60Hz 143kA at 690V AC 50/60Hz Sensor Rating: 400A, 800A
Insulation Voltage (Ui) 1000V AC 50/60Hz
Impulse Withstand Voltage (Uimp) 12kV
Power Dissipation 42W
Breaking Time Max. 25ms
Closing Response Time Max. 70ms
Mounting & Connections Mounting Support: Backplate, Rails Upside Connection: Front, Rear
Downside Connection Front, Rear
Connection Pitch 115mm
Durability & Performance Mechanical Durability: 12,500 cycles without maintenance 25,000 cycles with maintenance
Electrical Durability 10,000 cycles at 440V AC 50/60Hz (IEC 60947-2) 10,000 cycles at 690V AC 50/60Hz (IEC 60947-2) 10,000 cycles at 440V AC 50/60Hz (IEC 60947-3, AC-23A) 10,000 cycles at 690V AC 50/60Hz (IEC 60947-3, AC-23A) 6,000 cycles at 440/690V AC 50/60Hz (IEC 60947-3, AC-3)
Physical Specifications Height: 352mm Width: 422mm Depth: 297mm Net Weight: 50kg
Standards & Certifications Standards: EN/IEC 60947-1, EN/IEC 60947-2 Certifications: CE, CCC, EAC
Environmental Ratings IP Rating: IP30 (IEC 60529) Pollution Degree: 4 (IEC 60664-1) Operating Temperature: -25°C to 70°C Storage Temperature: -40°C to 85°C
Operating Altitude 0 to 2000m without derating 2000m to 5000m with derating

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA

The Schneider 4 Pole Adjustable Thermal Trip MCCB is a high-performance molded case circuit breaker designed for superior electrical protection in commercial and industrial applications. With a breaking capacity ranging from 36kA to 50kA, this MCCB ensures effective protection against short circuits and overloads, reducing the risk of electrical hazards. The adjustable thermal trip unit allows for precise tuning of the breaker to suit specific load requirements, ensuring enhanced safety and operational efficiency. Its 4-pole configuration provides full protection, including neutral, making it ideal for balanced and unbalanced loads. Built with robust materials and an advanced design, this MCCB offers high durability, long service life, and reliable performance under demanding conditions.

Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA
Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA
Looking to purchase Schneider 3 & 4 Pole Air Circuit Breaker 65KA to 100KA in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
