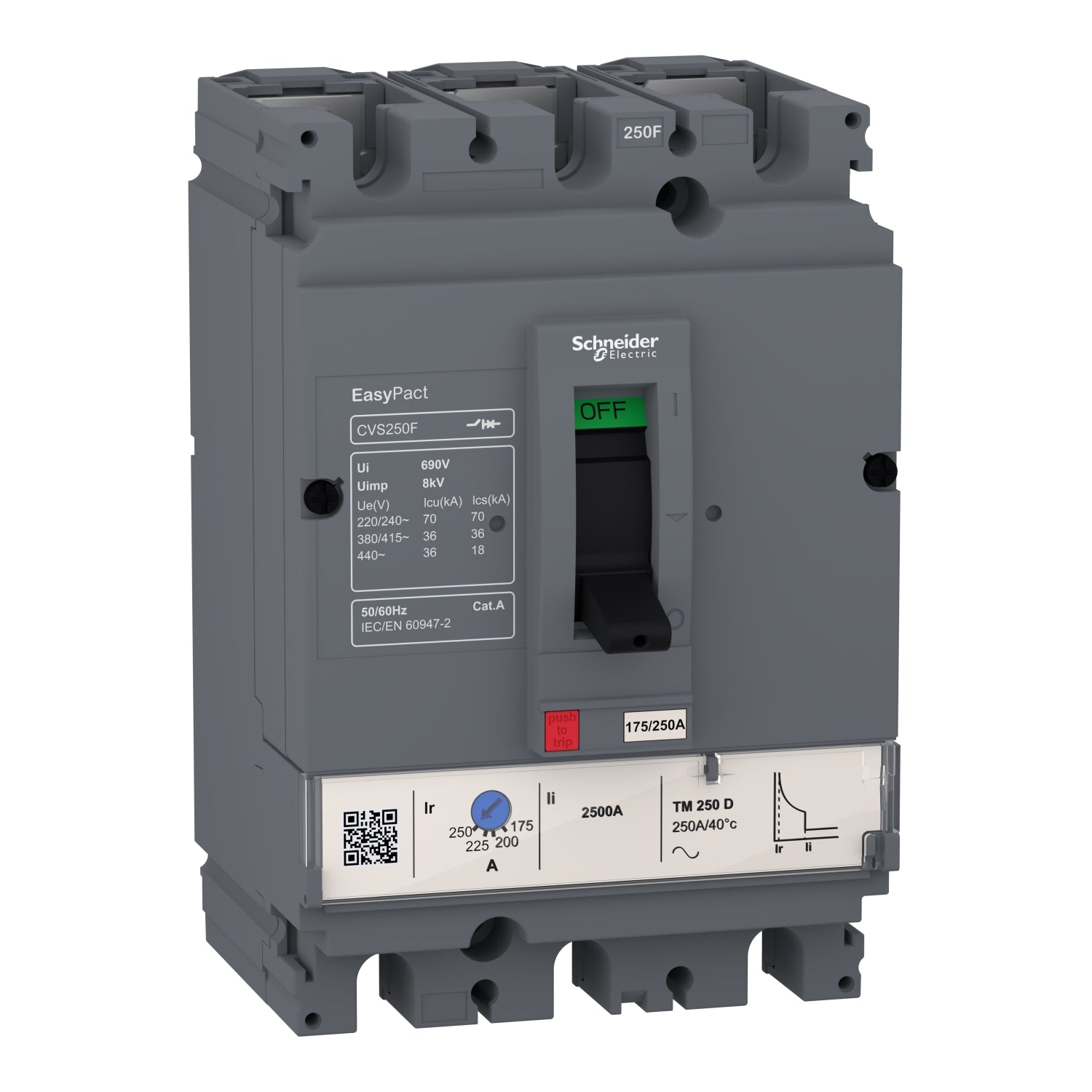

Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA
  • Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA
Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA
Availability: In Stock

Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA

Product SKU: CVS100F-16A
Rs.36,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range EasyPact
Range of Product EasyPact CVS100...250
Product Name EasyPact CVS
Device Short Name CVS250F
Product Type Circuit Breaker
Device Application Distribution
Poles Description 3P
Protected Poles Description 3D
Earth Leakage Protection Without
Rated Current 200A at 40°C
Network Type AC
Utilisation Category Category A
Breaking Capacity 36kA at 440V AC : 36kA at 380/415V
AC 70kA at 220/240V AC
Trip Unit Name TM-D
Trip Unit Technology Thermal-Magnetic
Trip Unit Rating 200A at 40°C
Protection Type Short-Circuit (Magnetic) : Overload (Thermal)
Impulse Withstand Voltage 8kV
Network Frequency 50/60 Hz
Breaking Capacity Code F
Rated Service Breaking Capacity 18kA at 440V AC : 36kA at 380/415V AC : 70kA at 220/240V AC Neutral Position : Left
Mechanical Durability 20000 Cycles
Electrical Durability 10000 Cycles at 415V
Control Type Toggle
Thermal Protection Adjustment Range 140-200A
Neutral Protection Setting No Protection (3D)
Long Time Pick-Up Adjustment Type Adjustable
Long Time Pick-Up Adjustment Range 0.7-1 x In
Long Time Delay Adjustment Type Fixed
Instantaneous Pick-Up Adjustment Type Fixed
Instantaneous Pick-Up Adjustment Range 2000A
Contact Position Indicator Yes
Mounting Support Backplate
Mounting Mode Fixed
Upside Connection Front
Downside Connection Front
Connections - Terminals Screw Connection
Connection Pitch 35mm
Compatibility Code CVS250
Width 140mm
Depth 86mm
Height 161mm
Net Weight 2.2kg
Environmental Specifications Standards EN 60947-2 : IEC 60947-2
Product Certifications IEC : GOST
Electrical Shock Protection Class Class II
Pollution Degree 3
IP Degree of Protection IP40
Ambient Air Temperature for Operation -25 to 70°C
Ambient Air Temperature for Storage -50 to 85°C

Key Features

Adjustable thermal trip for precise overload protection.
36kA breaking capacity for high fault current handling.
Three-pole design for balanced power distribution.
Compact and durable molded case construction.
Reliable short circuit and overload protection.
Versatile applications in industrial and commercial setups.
Easy installation and maintenance-friendly design.Available in multiple current ratings to suit different requirements.
Product Details Reviews Shipping & Returns User Manual

Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA

EasyPact CVS100F is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 100A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS100F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).

Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA
Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA
Looking to purchase Schneider 3–POLE ADJUSTABLE THERMAL TRIP MCCB 36KA in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
