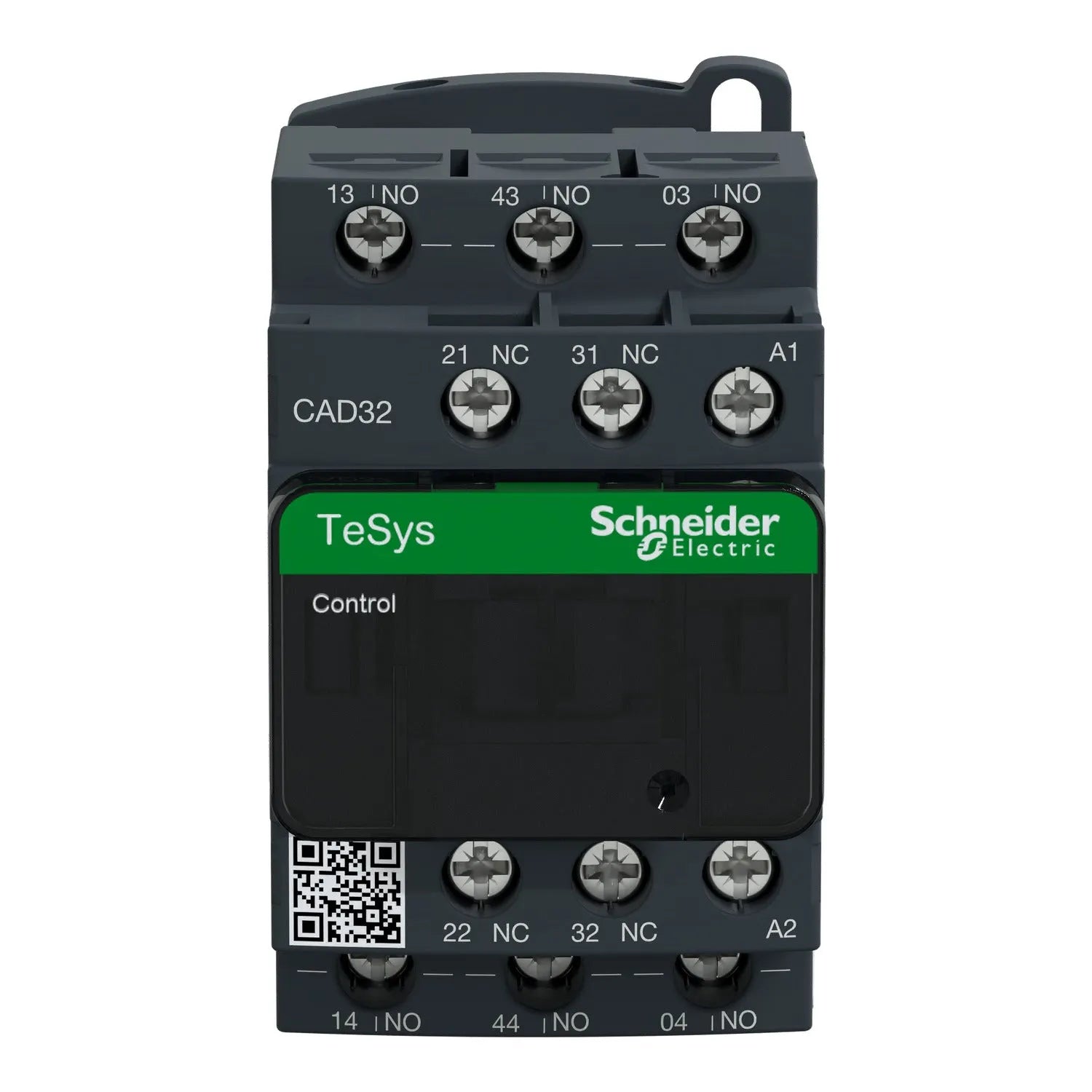

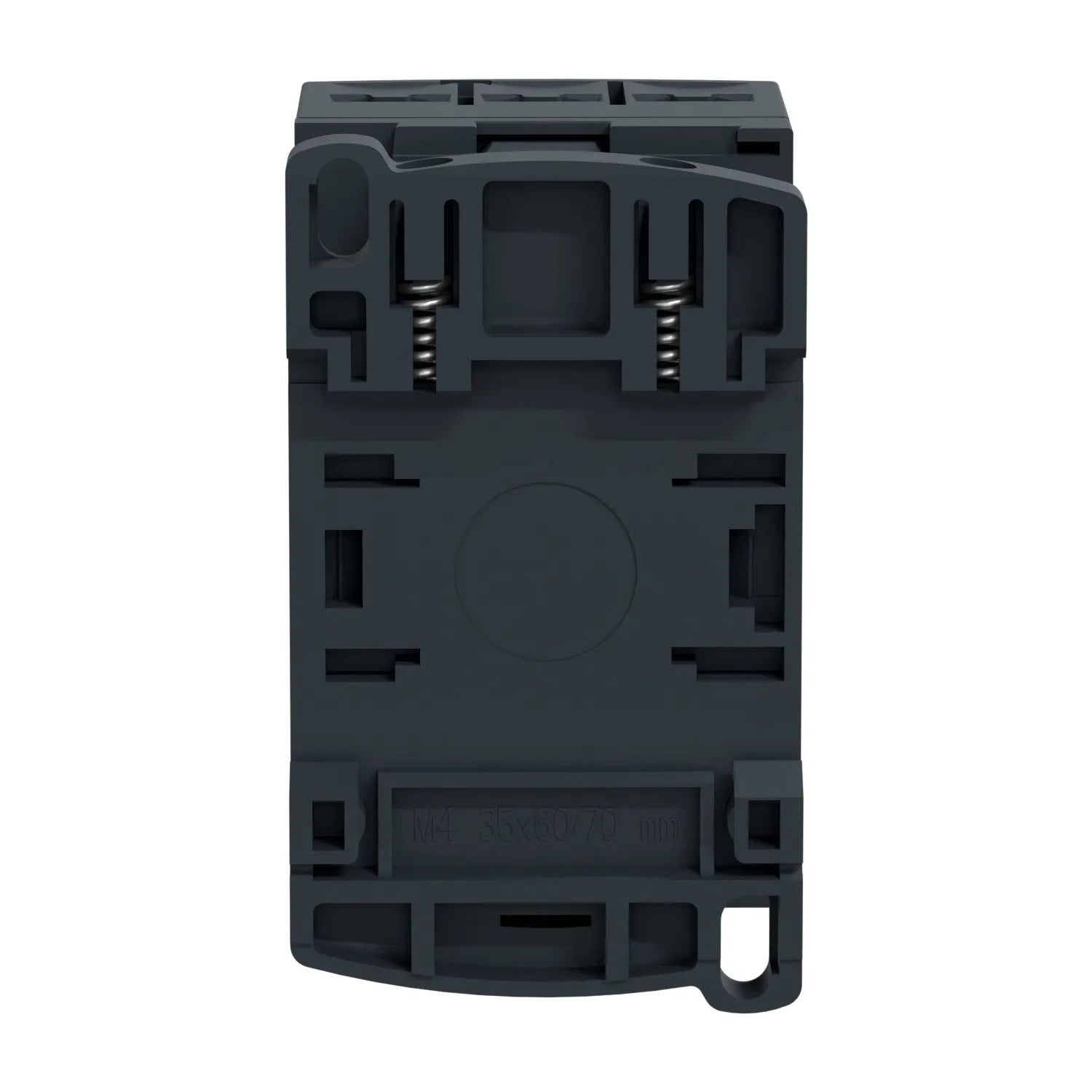

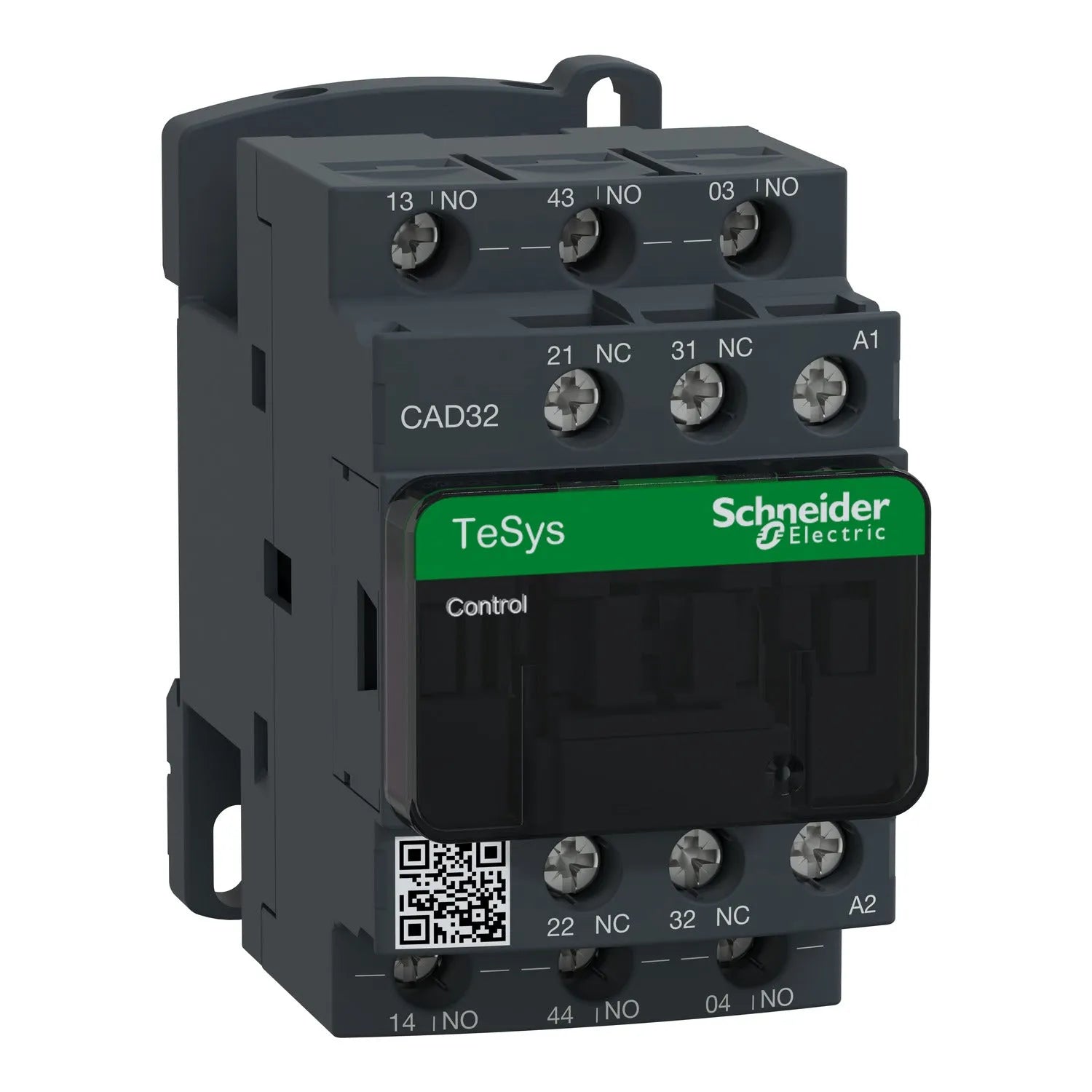

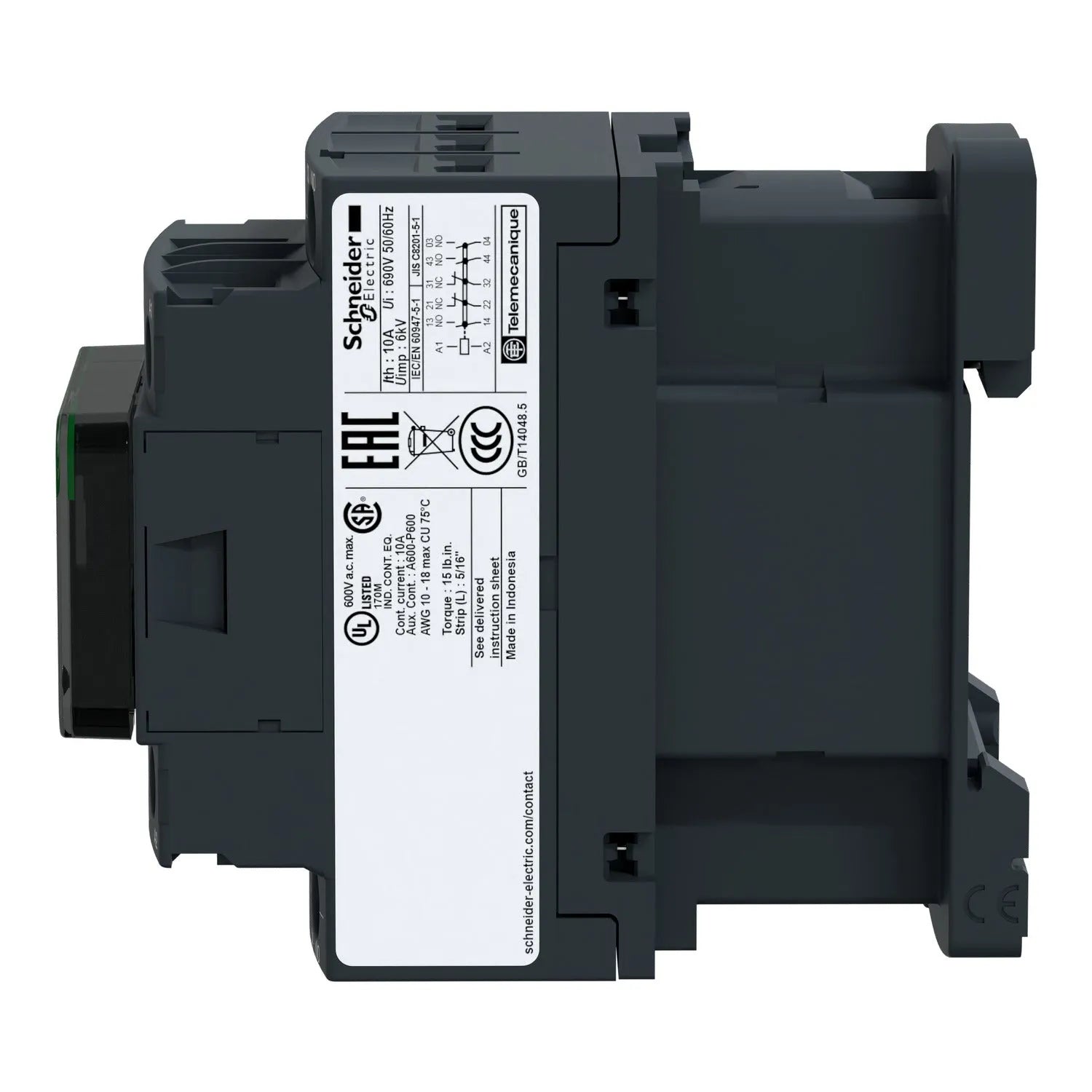

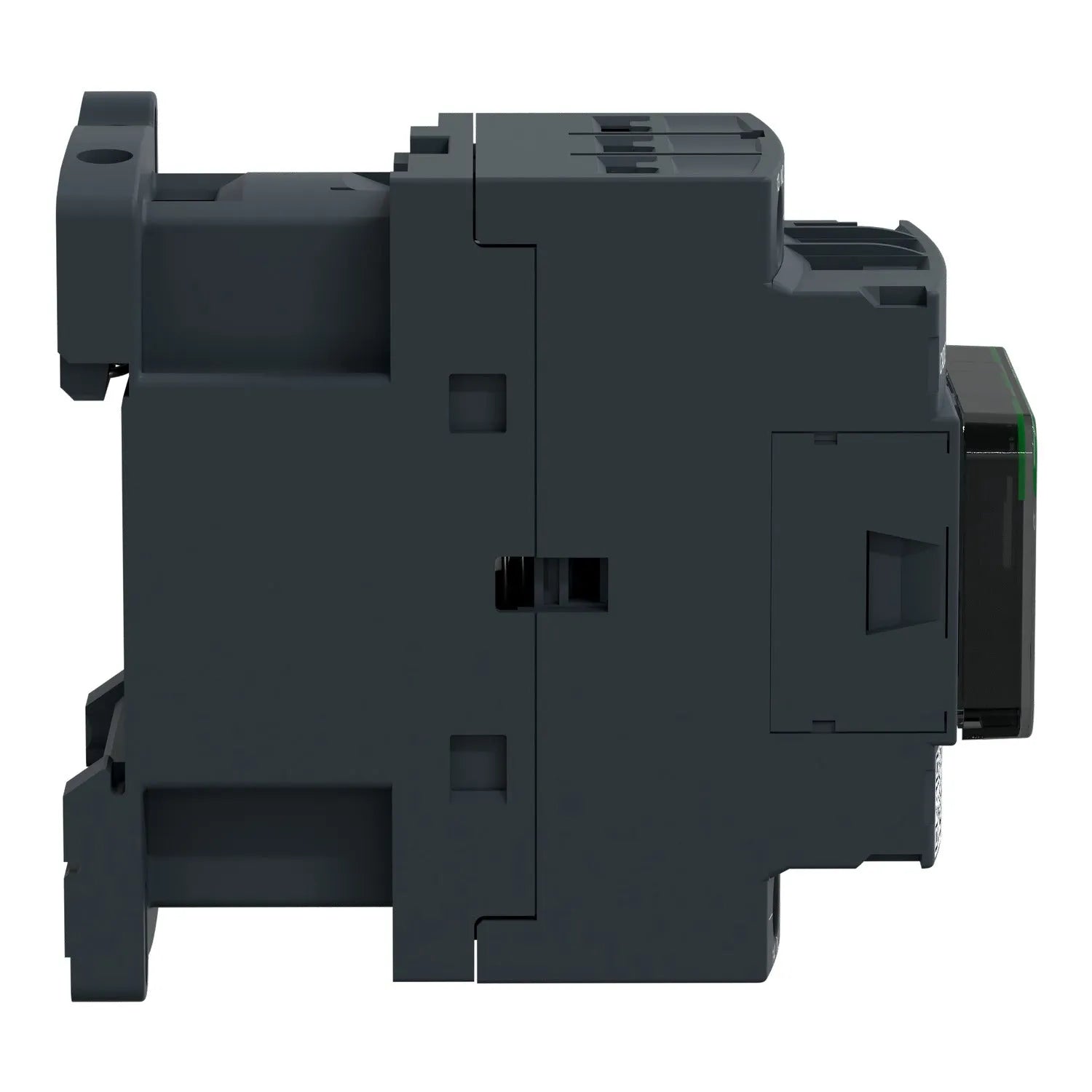

Schneider 3 NO + 2 NC TeSys D Contactor Price In Pakistan Is 2000/-
The Schneider TeSys D control relay is a high-performance solution designed for industrial automation, motor control, and signaling applications. With 3 normally open (NO) and 2 normally closed (NC) contacts, this relay provides flexible and efficient switching for various control circuits. Its compact design allows easy integration into control panels, while its high electrical durability ensures long-lasting performance in demanding environments. Built to meet international safety standards, the TeSys D control relay delivers reliable operation, making it ideal for applications requiring secure and precise control. Whether used for interlocking, signaling, or automation processes, this relay offers seamless functionality with quick installation and secure connections.
Provides versatile control and switching capabilities.
Ideal for industrial automation and motor control applications.
Designed for efficient panel integration.
Ensures long service life and consistent operation.
Simple mounting and wiring for quick setup.
Meets IEC and international safety certifications.
Suitable for control circuits, signaling, and interlocking.
Guarantees safe and stable switching.
Product Specifications
Range
tesys
tesys deca
tesys cad
product or component type
control relay
device short name
cad
contactor application
control circuit
utilisation category
dc-13
ac-14
ac-15
pole contact composition
3 no + 2 nc
[ue] rated operational voltage
<= 690 v ac 25...400 hz
control circuit type
ac at 50/60 hz
[uc] control circuit voltage
220 v ac 50/60 hz
[uimp] rated impulse withstand voltage
6 kv conforming to iec 60947
[ith] conventional free air thermal current
10 a (at 60 °c)
irms rated making capacity
140 a ac conforming to iec 60947-5-1
250 a dc conforming to iec 60947-5-1
[icw] rated short-time withstand current
100 a - 1 s
120 a - 500 ms
140 a - 100 ms
associated fuse rating
10 a gg conforming to iec 60947-5-1
[ui] rated insulation voltage
600 v ul certified
600 v csa certified
690 v conforming to iec 60947-5-1
mounting support
plate
rail
connections - terminals
screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
tightening torque
1.2 n.m - on screw clamp terminals - with screwdriver philips no 2
1.2 n.m - on screw clamp terminals - with screwdriver flat ø 6 mm
1.2 n.m - on screw clamp terminals - with screwdriver pozidriv no 2
control circuit voltage limits
0.3...0.6 uc (-40…70 °c)
operating time
12...22 ms coil energisation and no closing
4...12 ms coil de-energisation and no opening
4...19 ms coil energisation and nc opening
6...17 ms coil de-energisation and nc closing
mechanical durability
30 mcycles
maximum operating rate
180 cyc/mn
inrush power in va
70 va 50 hz (at 20 °c)
hold-in power consumption in va
8 va 50 hz (at 20 °c)
minimum switching voltage
17 v
minimum switching current
5 ma
non-overlap time
1.5 ms on energisation between nc and no contact
1.5 ms on de-energisation between nc and no contact
insulation resistance
> 10 mohm
mechanical robustness
shocks control relay open
height
77 mm
width
45 mm
depth
84 mm
net weight
0.58 kg
Product Details
Schneider 3 NO + 2 NC TeSys D Contactor Price In Pakistan Is 2000/-
The Schneider TeSys D control relay is a high-performance solution designed for industrial automation, motor control, and signaling applications. With 3 normally open (NO) and 2 normally closed (NC) contacts, this relay provides flexible and efficient switching for various control circuits. Its compact design allows easy integration into control panels, while its high electrical durability ensures long-lasting performance in demanding environments. Built to meet international safety standards, the TeSys D control relay delivers reliable operation, making it ideal for applications requiring secure and precise control. Whether used for interlocking, signaling, or automation processes, this relay offers seamless functionality with quick installation and secure connections.
