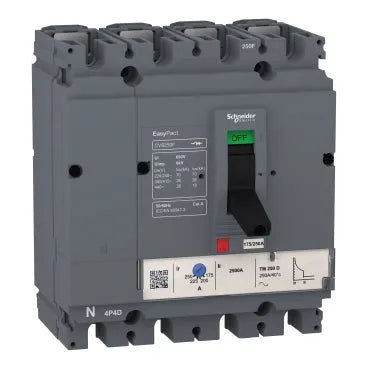

Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA
  • Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA
Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA
Availability: In Stock

Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA

Product SKU: CVS100F-4P-16A
Rs.55,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range EasyPact
Product Name EasyPact CVS
Device Short Name CVS100F
Product Type Circuit Breaker
Application Distribution
Poles 4P
Protected Poles 3D
Earth Leakage Protection Without
Rated Current (A) 100A at 40°C
Network Type AC
Utilization Category Category A
Breaking Capacity (kA) 36kA at 440V AC, 36kA at
Trip Unit TM-D
Trip Technology Thermal-Magnetic
Trip Unit Rating 100A at 40°C
Protection Type Short-Circuit (Magnetic), Overload (Thermal)
Impulse Withstand Voltage (kV) 8kV (IEC 60947-2)
Network Frequency 50/60Hz
Breaking Capacity Code F
Service Breaking Capacity (kA) 18kA at 440V AC, 36kA at 380/415V AC, 70kA at 220/240V AC (IEC 60947-2)
Neutral Position Left
Mechanical Durability 30,000 Cycles
Electrical Durability 12,000 Cycles at 415V (IEC 60947-2)
Control Type Toggle
Thermal Protection Adjustment Range 70A – 100A
Neutral Protection No Protection (3D)
Long Time Pick-Up Adjustment 0.7 – 1 x In (Adjustable)
Long Time Delay Adjustment Fixed
Instantaneous Pick-Up Adjustment 800A (Fixed)
Contact Position Indicator Yes
Mounting Support Backplate
Mounting Mode Fixed
Connections Screw Connection
Upside Connection Front
Downside Connection Front
Connection Pitch 35mm
Compatibility Code CVS100
Width 140mm
Depth 86mm
Height 161mm
Net Weight 1.9kg
Standards IEC 60947-2, EN 60947-2
Certifications GOST, IEC
Electrical Shock Protection Class Class II
Pollution Degree 3 (IEC 60664-1)
IP Protection IP40
Operating Temperature -25°C to 70°C
Storage Temperature -50°C to 85°C

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA

The Schneider 4 Pole Adjustable Thermal Trip MCCB is a high-performance molded case circuit breaker designed for superior electrical protection in commercial and industrial applications. With a breaking capacity ranging from 36kA to 50kA, this MCCB ensures effective protection against short circuits and overloads, reducing the risk of electrical hazards. The adjustable thermal trip unit allows for precise tuning of the breaker to suit specific load requirements, ensuring enhanced safety and operational efficiency. Its 4-pole configuration provides full protection, including neutral, making it ideal for balanced and unbalanced loads. Built with robust materials and an advanced design, this MCCB offers high durability, long service life, and reliable performance under demanding conditions.

Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA
Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA
Looking to purchase Schneider 4 Pole Adjustable Thermar Trip 36KA to 50KA in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
