Range
|
easypact
|
|
product name
|
easypact cvs
|
|
device short name
|
cvs250f
|
|
product or component type
|
circuit breaker
|
Schneider CVS250F 4P MCCB Breaker price in Pakistan is Rs 96,000/-.

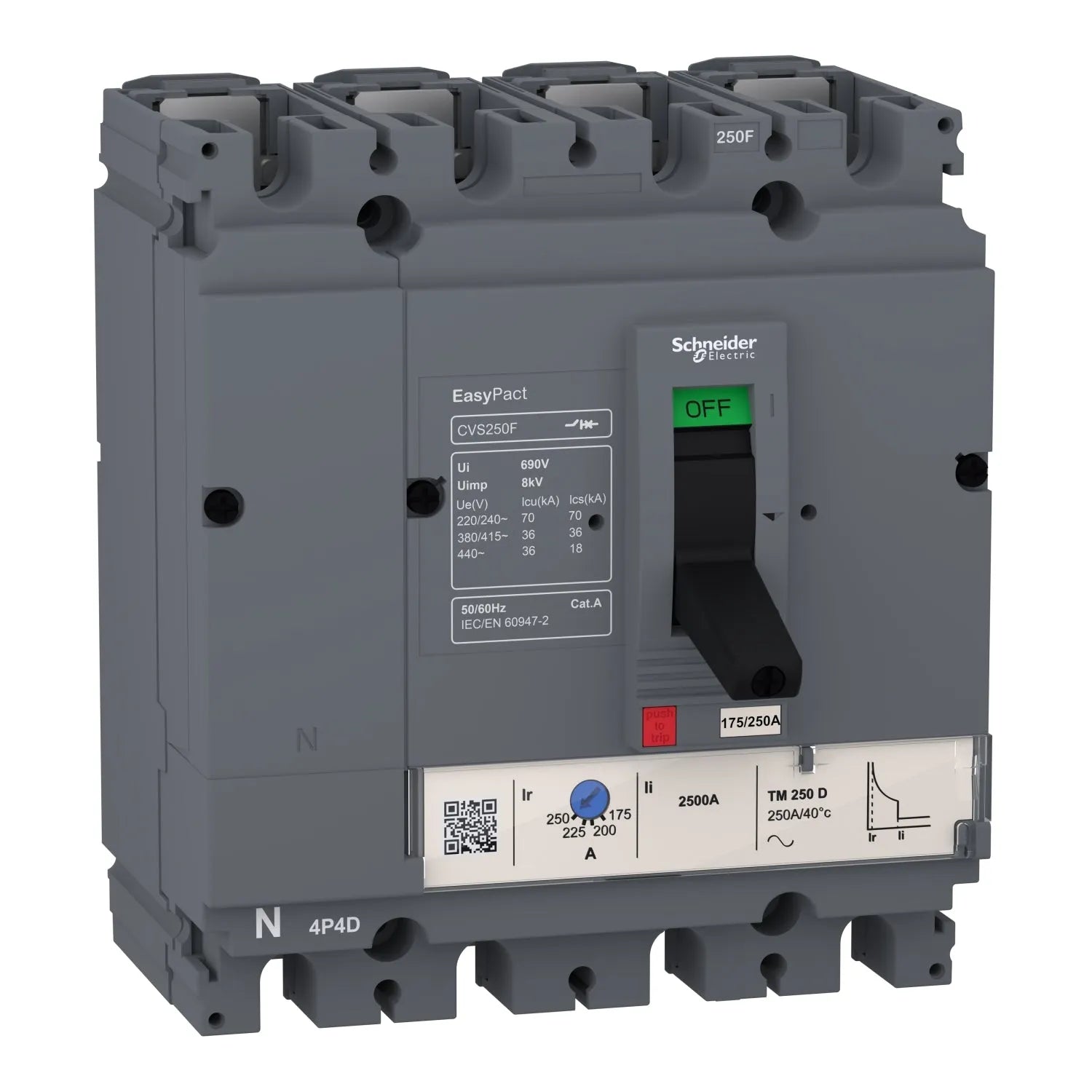

EasyPact CVS250F is a 4-pole 4D fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized building protection applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 200A rating thermal-magnetic trip unit (TMD). TMD trip unit provides adjustable thermal overload protection and fixed magnetic protection. This 4-pole version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS250F is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front-face device (IEC 60664-1).
