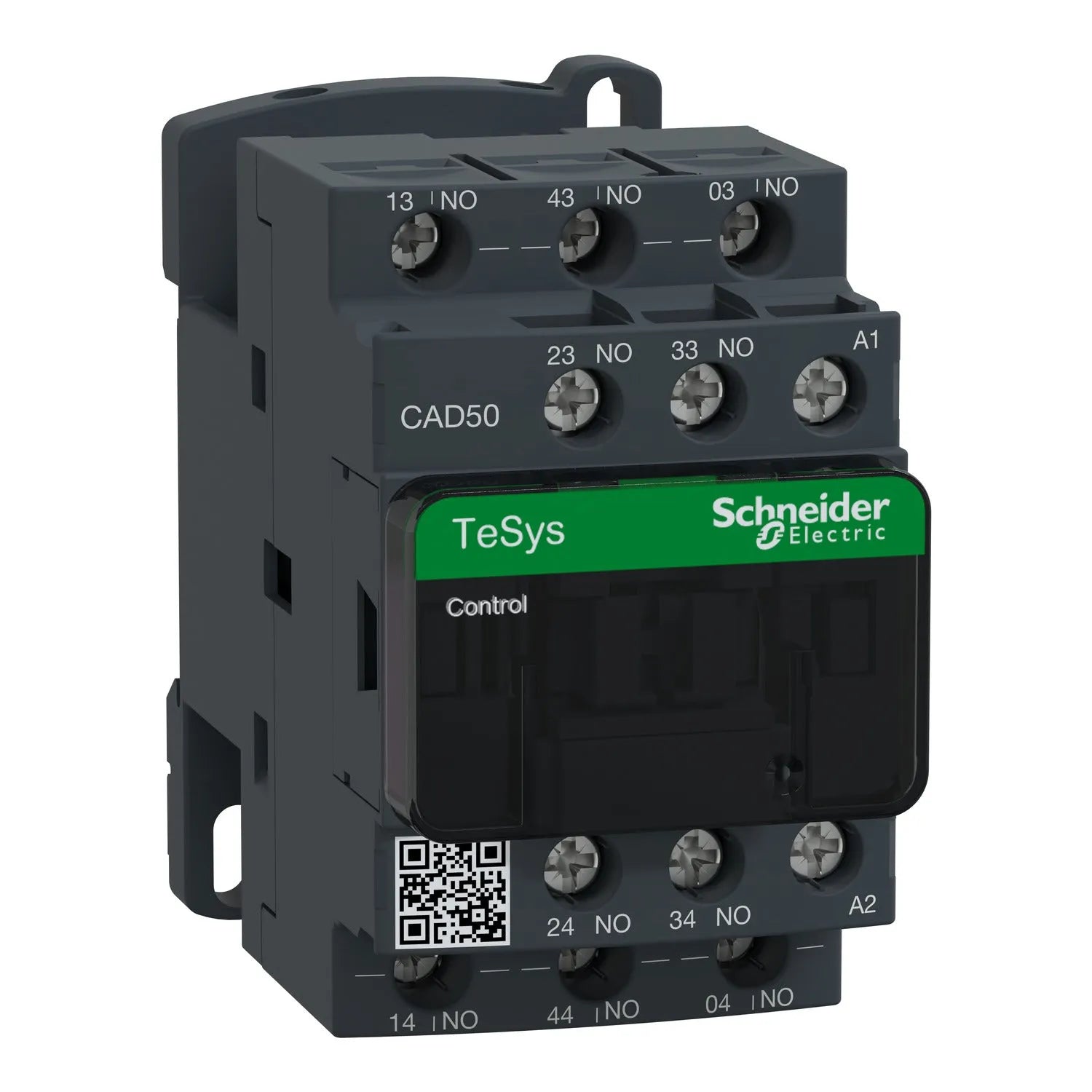

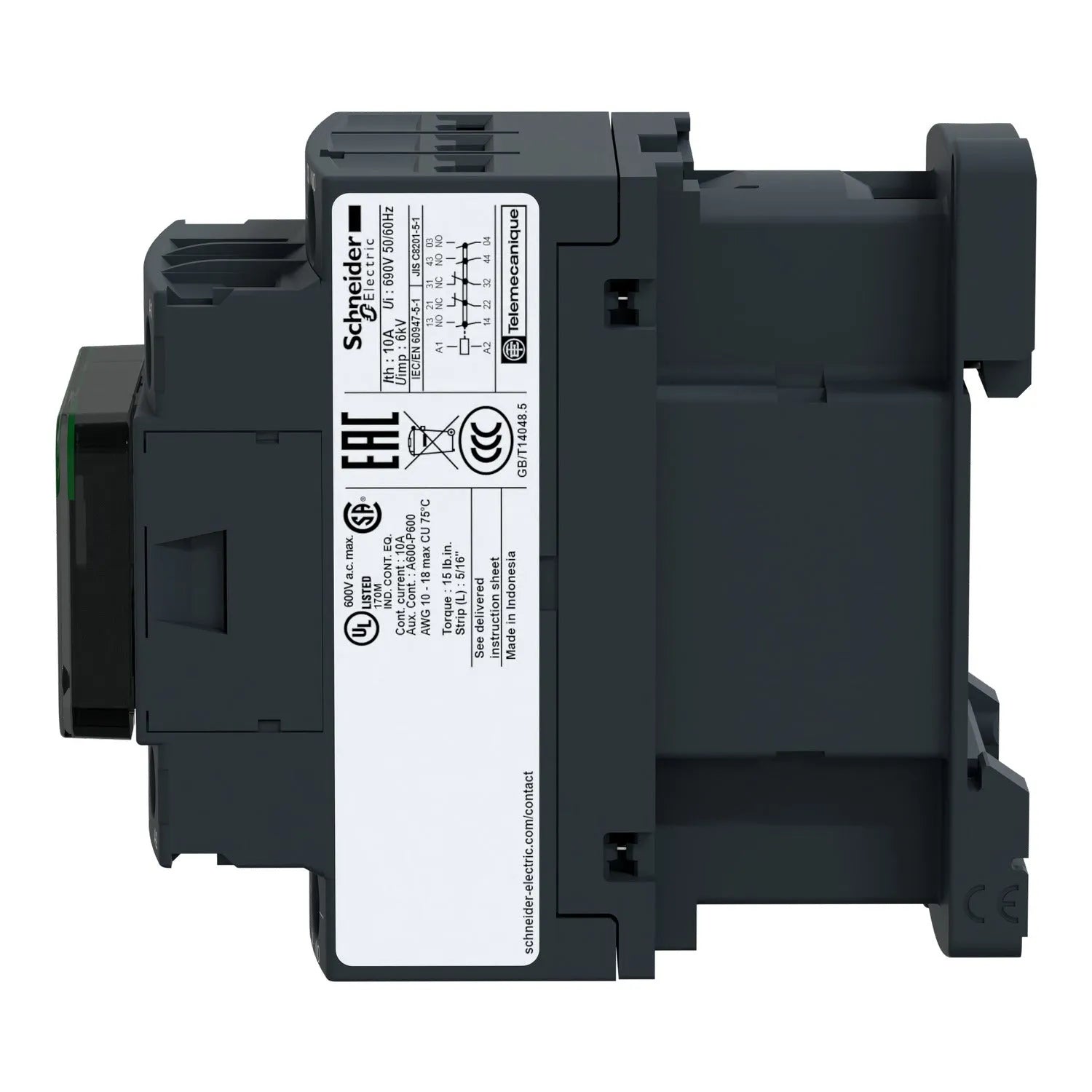

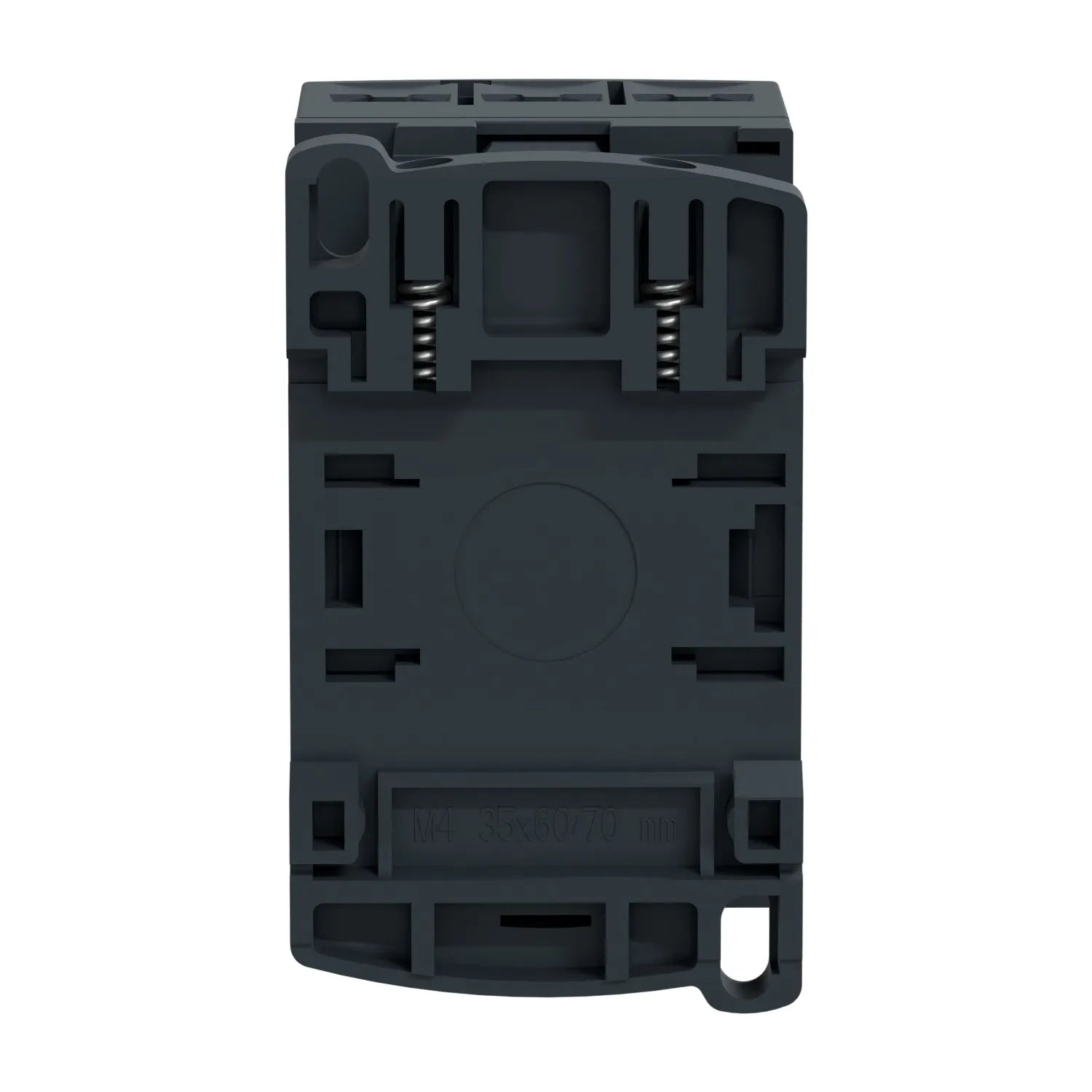

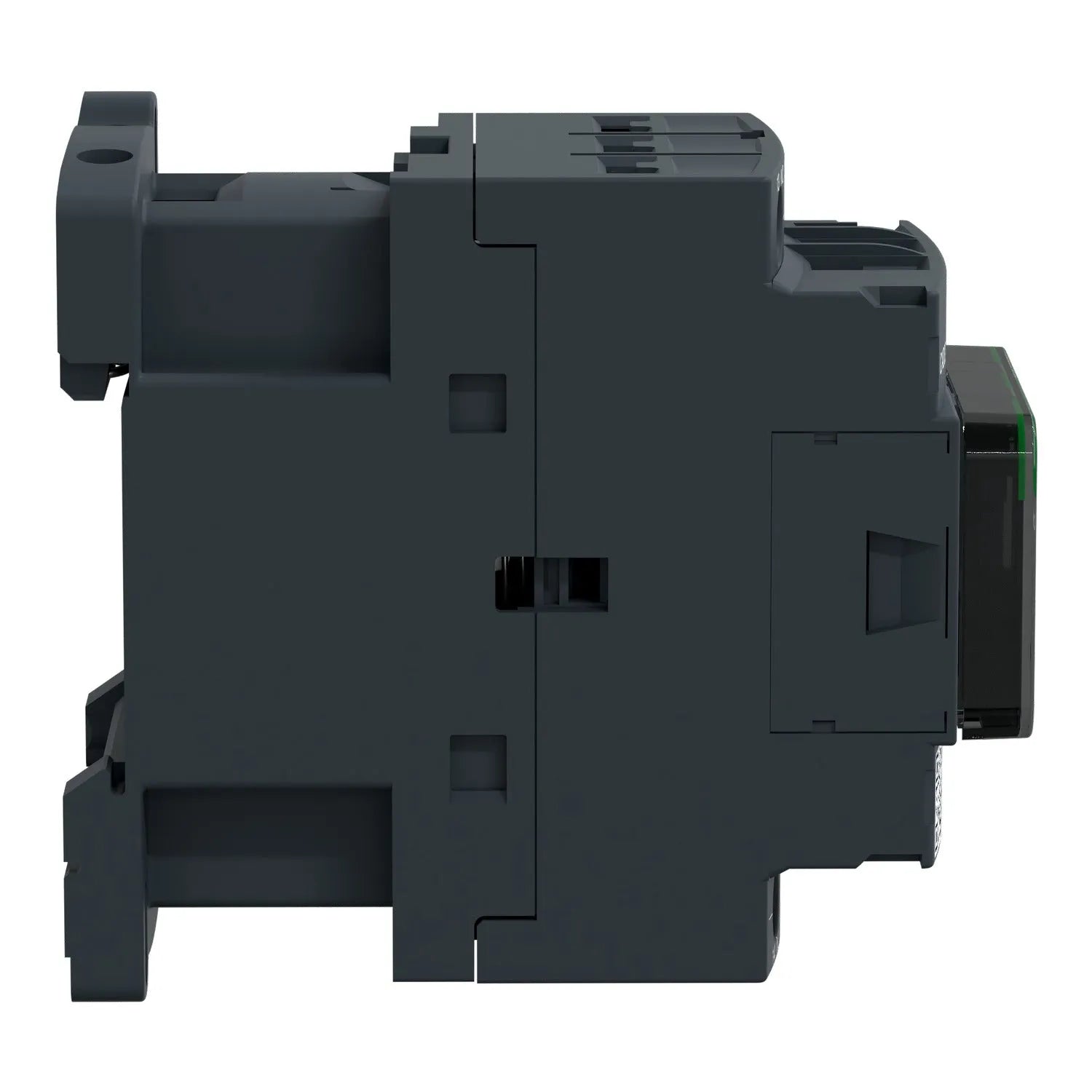

Schneider CAD – 50M7 TeSys D Contactor Price In Pakistan 5000/-
The Schneider CAD-50M7 TeSys D Contactor is a high-performance solution for industrial motor control and power switching applications. Designed for reliable operation, this contactor efficiently manages electrical loads, ensuring smooth and secure switching in automation systems. With a rated operational voltage of 690V and a 220V AC standard coil, it delivers stable and energy-efficient performance. Its compact design allows for easy panel integration, while its robust construction ensures durability in demanding environments. Built to meet international safety standards, the TeSys D Contactor is ideal for industrial, commercial, and automation applications.
Built for long-lasting performance in harsh environments.
Simple mounting and wiring for quick setup.
Meets IEC and international electrical safety standards.
Versatile Applications: Ideal for power distribution, automation, and motor control.
Product Specifications
Range
tesys
tesys deca
product name
tesys cad
product or component type
control relay
device short name
cad
contactor application
control circuit
utilisation category
ac-15
ac-14
dc-13
pole contact composition
5 no
[ue] rated operational voltage
<= 690 v ac 25...400 hz
control circuit type
ac at 50/60 hz
[uc] control circuit voltage
220 v ac 50/60 hz
[uimp] rated impulse withstand voltage
6 kv conforming to iec 60947
[ith] conventional free air thermal current
10 a (at 60 °c)
irms rated making capacity
140 a ac conforming to iec 60947-5-1
250 a dc conforming to iec 60947-5-1
[icw] rated short-time withstand current
100 a - 1 s
120 a - 500 ms
140 a - 100 ms
associated fuse rating
10 a gg conforming to iec 60947-5-1
[ui] rated insulation voltage
600 v ul certified
600 v csa certified
690 v conforming to iec 60947-5-1
mounting support
plate
rail
connections - terminals
screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
tightening torque
1.2 n.m - on screw clamp terminals - with screwdriver philips no 2
1.2 n.m - on screw clamp terminals - with screwdriver flat ø 6 mm
1.2 n.m - on screw clamp terminals - with screwdriver pozidriv no 2
control circuit voltage limits
0.3...0.6 uc (-40…70 °c)
operating time
12...22 ms coil energisation and no closing
4...12 ms coil de-energisation and no opening
mechanical durability
30 mcycles
maximum operating rate
180 cyc/mn
inrush power in va
70 va 50 hz (at 20 °c)
hold-in power consumption in va
8 va 50 hz (at 20 °c)
minimum switching voltage
17 v
minimum switching current
5 ma
non-overlap time
1.5 ms on energisation between nc and no contact
1.5 ms on de-energisation between nc and no contact
insulation resistance
> 10 mohm
mechanical robustness
shocks control relay open
height
77 mm
width
45 mm
depth
84 mm
net weight
0.58 kg
Product Details
Schneider CAD – 50M7 TeSys D Contactor Price In Pakistan 5000/-
The Schneider CAD-50M7 TeSys D Contactor is a high-performance solution for industrial motor control and power switching applications. Designed for reliable operation, this contactor efficiently manages electrical loads, ensuring smooth and secure switching in automation systems. With a rated operational voltage of 690V and a 220V AC standard coil, it delivers stable and energy-efficient performance. Its compact design allows for easy panel integration, while its robust construction ensures durability in demanding environments. Built to meet international safety standards, the TeSys D Contactor is ideal for industrial, commercial, and automation applications.
