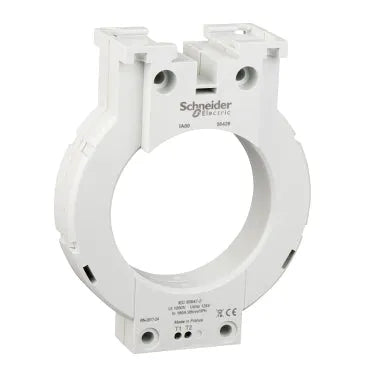

Schneider Earth Leakage Current Sensor 80 mm
  • Schneider Earth Leakage Current Sensor 80 mm
Schneider Earth Leakage Current Sensor 80 mm
Availability: In Stock

Schneider Earth Leakage Current Sensor 80 mm

Product SKU: 50439
Rs.50,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range VigiPacT
Device Short Name IA80
Product Type Earth Leakage Current Sensor
Application Equipment Monitoring and Control
Compatible with VigiPacT RH10M, RH10P, RH21M, RH21P, RH68M, RH86M, RH86P, RH99M, RH99P, RH197M, RH197P, RHU, RHUs, RMH Residual Current Protection Relays
Current Sensor Type A Type Closed Toroid
Rated Operational Current [Ie] 160A
Transformer Ratio 1/1000
Network Type AC/DC
Network Frequency 45 - 440 Hz
Short-time Withstand Current [Icw] 85 kA for 0.5s
Residual Short-Circuit Withstand Current 85 kA / 0.5s (IEC 60947-2)
Insulation Voltage [Ui] 1000V
Overvoltage Category IV
Impulse Withstand Voltage [Uimp] 12 kV
Mounting Options Fixed (Cables, Plain Backplate, Profiled Sheet Metal, Slotted Backplate)
Mounting Mode Clip-on (DIN Rail)
Calorific Value 3.19 MJ
Connections - Terminals Screw Connection (0.22 mm²)
Inner Diameter 80 mm
Maximum Cable Outer Diameter 40 mm (95 mm² max.)
Net Weight 0.42 kg
Dimensions (H x W x D) 122 mm x 150 mm x 44 mm
IP Protection Rating IP20 (Connectors), IP30
Environmental Characteristics Damp Heat Exposure, Salt Mist Resistant, Pollution Degree 3 (IEC 60664-1)
Operating Temperature -35°C to 70°C
Storage Temperature -55°C to 85°C
Standards Compliance IEC 60947-2

Key Features

Dedicated for Vigilohm Insulation Fault Locators and VigiPacT Type A residual current relays.
Supports current measurement up to 160A for reliable monitoring and protection.
Features an 80mm inner diameter with a 1/1000 transformer ratio.
Requires centered cables with a maximum cross-section of 95mm² for copper conductors.
Product Details Reviews Shipping & Returns User Manual

Schneider Earth Leakage Current Sensor 80 mm

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 160A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 80 millimeters and the weight is 0.420kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 40 millimeters. The maximum cross section per phase (R, S, T, N) is 95mm² for a copper conductor.

Schneider Earth Leakage Current Sensor 80 mm
Schneider Earth Leakage Current Sensor 80 mm
Looking to purchase Schneider Earth Leakage Current Sensor 80 mm in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
