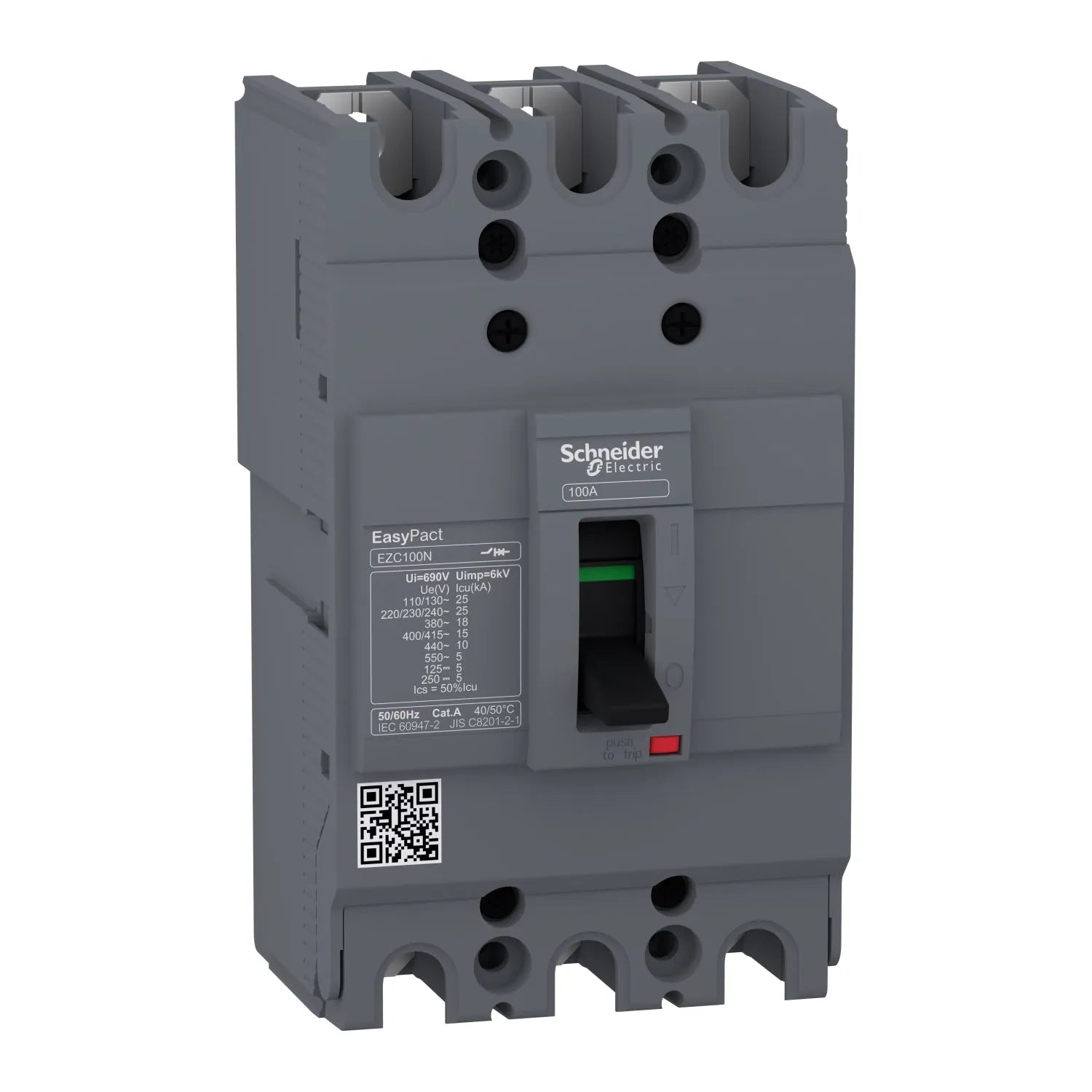

Schneider EZC100N 3 Pole Molded Case Circuit Breaker 15 kA
Availability: In Stock

Schneider EZC100N 3 Pole Molded Case Circuit Breaker 15 kA

Product SKU: EZC100N3015
Rs.20,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Range of product EasyPact
Product or component type Circuit breaker
circuit breaker name Easypact EZCIOON
Device application Distribution
Poles description 3P
Protected poles description 3t
Network type DC / AC
Network frequency 50/60 Hz
[In] rated current 15 A at 40 oc
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[UimpJ rated impulse withstand voltage 6 kV conforming to IEC 60947-2
[Uel rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2 / 250 V DC conforming to IEC 60947-2
Breaking capacity code N
Breaking capacity 15 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 15 A at 50 oc
Protection type Short-circuit
Pollution degree 3 conforming to IEC 60664-1 / 3 conforming to IEC 947-1
control type Toggle
Mounting mode Fixed
mounting support Backplate
Upside connection Front
downside connection Front
Mechanical durability 8500 cycles
standards JIS C8201-2-2 / EWIEC 60947-2 / EWIEC 60947-1 / GBIT 14048.2
IP degree of protection IP20 conforming to IEC 60529
1K degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -25...70 c
Ambient air temperature for storage -35...85 oc

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns

Schneider EZC100N 3 Pole Molded Case Circuit Breaker 15 kA



EasyPact EZC100N is a 3 poles fixed circuit breaker designed for the protection of low-voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance at a competitive price The breaking capacity (Icu) is 15kA rms at 415VAC 50/60Hz. The operational voltage is 550VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 15A, 20A, 30A, 40A, 50A, 60A, 80A, 100A. The trip unit provides fixed overload and instantaneous protection. This 3-pole version (75mm x 130mm x 60mm) comes with a variety of optional functions and accessories. Easypact EZC100N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
