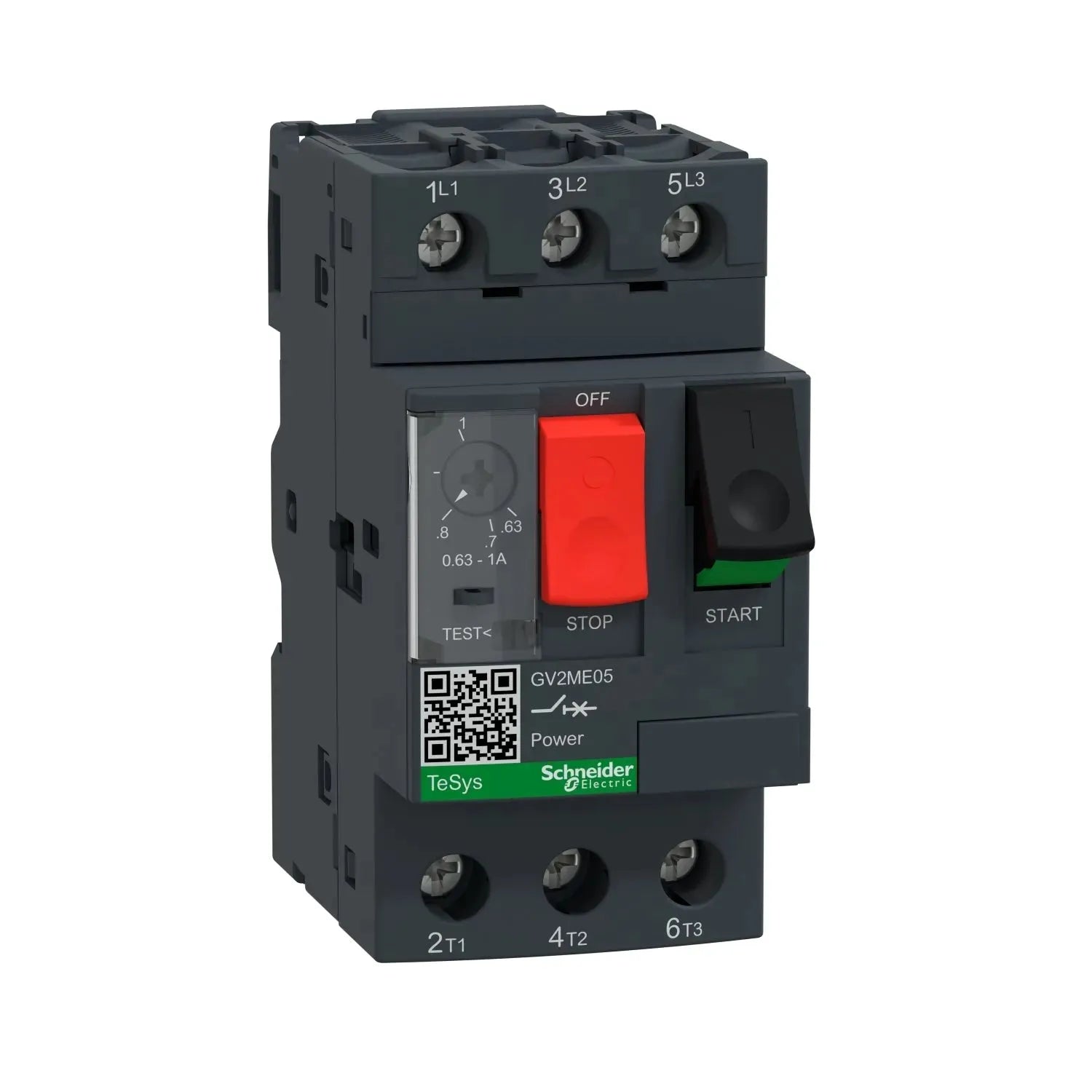

Schneider GV2ME05 3 Pole 0.63...1 A Motor Protection Circuit Breaker

Name: Schneider GV2ME05 3 Pole 0.63...1 A Motor Protection Circuit Breaker
Brand: Schneider Electric
SKU: GV2ME05
Price: 14500.0 PKR
Availability: InStock

Product SKU:GV2ME05

Be the first to review

Rs.14,500.00 PKR

Sale Sold out

people bought this recently

Product variants

About This Product

Key Features

Range: TeSys Deca
Product name: TeSys GV2 / TeSys Deca
Net weight: 0.28 kg
Device short name: GV2ME
Component type: ... Show All Key Features

Product Specifications

Range	tesys deca
product name	tesys gv2 / tesys deca
product or component type	motor circuit breaker
net weight	0.28 kg

Product Details

Schneider GV2ME05 3P MPCB Breaker price in Pakistan is Rs 14,500/-.

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

User Manual

Schneider GV2ME05 3 Pole 0.63...1 A Motor Protection Circuit Breaker.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Schneider GV2ME05 3 Pole Motor Circuit Breaker Price in Pakistan

Looking to purchase Schneider GV2ME05 3 Pole 0.63...1 A Motor Protection Circuit Breaker in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Update Qty

Related Categories

Circuit breakers Circuit protections Industrial automation & circuit protection Motor protection circuit breakers Schneider electric

Range	tesys deca
product name	tesys gv2 / tesys deca
product or component type	motor circuit breaker
net weight	0.28 kg
device short name	gv2me
device application	motor protection
trip unit technology	thermal-magnetic
poles description	3p
network type	ac
utilisation category	category a conforming to iec 60947-2
network frequency	50/60 hz conforming to iec 60947-4-1
35 mm symmetrical din rail	clipped
panel	screwed (with adaptor plate)
breaking capacity	100 ka icu at 230/240 v ac 50/60 hz conforming to iec 60947-2
control type	push-button
rated current [in]	1 a
thermal protection adjustment	0.63…1 a conforming to iec 60947-4-1
magnetic tripping current	13 a
conventional free air thermal current [ith]	1 a conforming to iec 60947-4-1
rated operational voltage [ue]	690 v ac 50/60 hz conforming to iec 60947-2
rated insulation voltage [ui]	690 v ac 50/60 hz conforming to iec 60947-2
rated impulse withstand voltage [uimp]	6 kv conforming to iec 60947-2
phase failure sensitivity	yes conforming to iec 60947-4-1
suitability for isolation	yes conforming to iec 60947-1 § 7-1-6
power dissipation per pole	2.5 w
mechanical durability	100000 cycles
electrical durability	100000 cycles for ac-3 at 415 v in / 100000 cycles for ac-3e at 415 v in
standards	en/iec 60947-2 / en/iec 60947-4-1
ik degree of protection	ik04
ip degree of protection	ip20 conforming to iec 60529
climatic withstand	conforming to iacs e10
ambient air temperature for storage	-40…80 °c
fire resistance	960 °c conforming to iec 60695-2-11
ambient air temperature for operation	-20…60 °c
operating altitude	2000m
