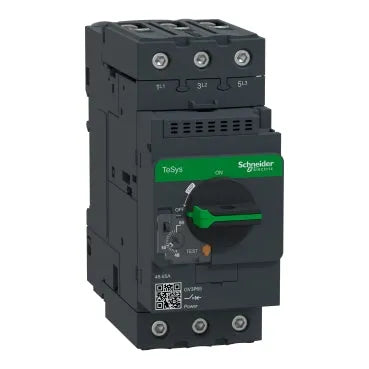

Schneider GV3P65 3 Pole 48…65A Motor Protection Circuit Breaker

Name: Schneider GV3P65 3 Pole 48…65A Motor Protection Circuit Breaker
Brand: Schneider Electric
SKU: GV3P65
Price: 45000.0 PKR
Availability: InStock

Product SKU:GV3P65

Be the first to review

Rs.45,000.00 PKR

Sale Sold out

people bought this recently

Product variants

About This Product

Key Features

Range: TeSys Deca
Product name: TeSys GV3 / TeSys Deca
Net weight: 0.96 kg
Device short name: GV3P
Component type: M... Show All Key Features

Product Specifications

Range	tesys deca
product name	tesys gv3 / tesys deca
product or component type	motor circuit breaker
net weight	0.96 kg

Product Details

Schneider GV3P65 3P MPCB Breaker price in Pakistan is Rs 45,000/-.

TeSys GV motor circuit breaker, 3 poles (3P), 65A/690V, for 3-phase motor applications 30kW@400V. It provides a thermal-magnetic protection with a thermal setting range 48-65A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

User Manual

Schneider GV3P65 3 Pole 48…65A Motor Protection Circuit Breaker.pdf

Powerhouse Benefits

Invoice Available
Secure Payments
365 Days Help Desk

Return & Warranty Policy

Upto 3 Days Returnable
Missing Product
Wrong Product
Damaged Product

Schneider GV3P65 3P Motor Circuit Breaker Price in Pakistan

Looking to purchase Schneider GV3P65 3 Pole 48…65A Motor Protection Circuit Breaker in bulk?

Purchase item in bulk quantity
Get at best price for your business

Reviews & Ratings

Update Qty

Related Categories

Circuit breakers Circuit protections Industrial automation & circuit protection Motor protection circuit breakers Schneider electric

Range	tesys deca
product name	tesys gv3 / tesys deca
product or component type	motor circuit breaker
net weight	0.96 kg
device short name	gv3p
device application	motor protection
trip unit technology	thermal-magnetic
poles description	3p
network type	ac
utilisation category	ac-3 conforming to iec 60947-4-1
network frequency	50/60 hz conforming to iec 60947-4-1
35 mm symmetrical din rail	clipped
panel	screwed (with 3 x m4 screws)
control type	rotary handle
rated current [in]	65a thermal protection adjustment
magnetic tripping current	910 a
conventional free air thermal current [ith]	65 a conforming to iec 60947-4-1
rated operational voltage [ue]	690 v ac 50/60 hz conforming to iec 60947-2
rated insulation voltage [ui]	690 v ac 50/60 hz conforming to iec 60947-2
rated impulse withstand voltage [uimp]	6 kv conforming to iec 60947-2
phase failure sensitivity	yes conforming to iec 60947-4-1
suitability for isolation	yes conforming to iec 60947-1
power dissipation per pole	8 w
mechanical durability	50000 cycles
electrical durability	50000 cycles for ac-3 at 415 v in
standards	en/iec 60947-2 / en/iec 60947-4-1 / ul 60947-4-1 / csa c22.2 no 60947-4-1
ik degree of protection	ik09 enclosure
ip degree of protection	ip20 conforming to iec 60529
climatic withstand	conforming to iacs e10
ambient air temperature for storage	-40…80 °c
fire resistance	960 °c conforming to iec 60695-2-11
ambient air temperature for operation	-20…60 °c
operating altitude	3000 m
