Range
|
acti9
|
|
model
|
iid
|
|
component type
|
residual current circuit breaker (rccb)
|
|
device short name
|
iid
|

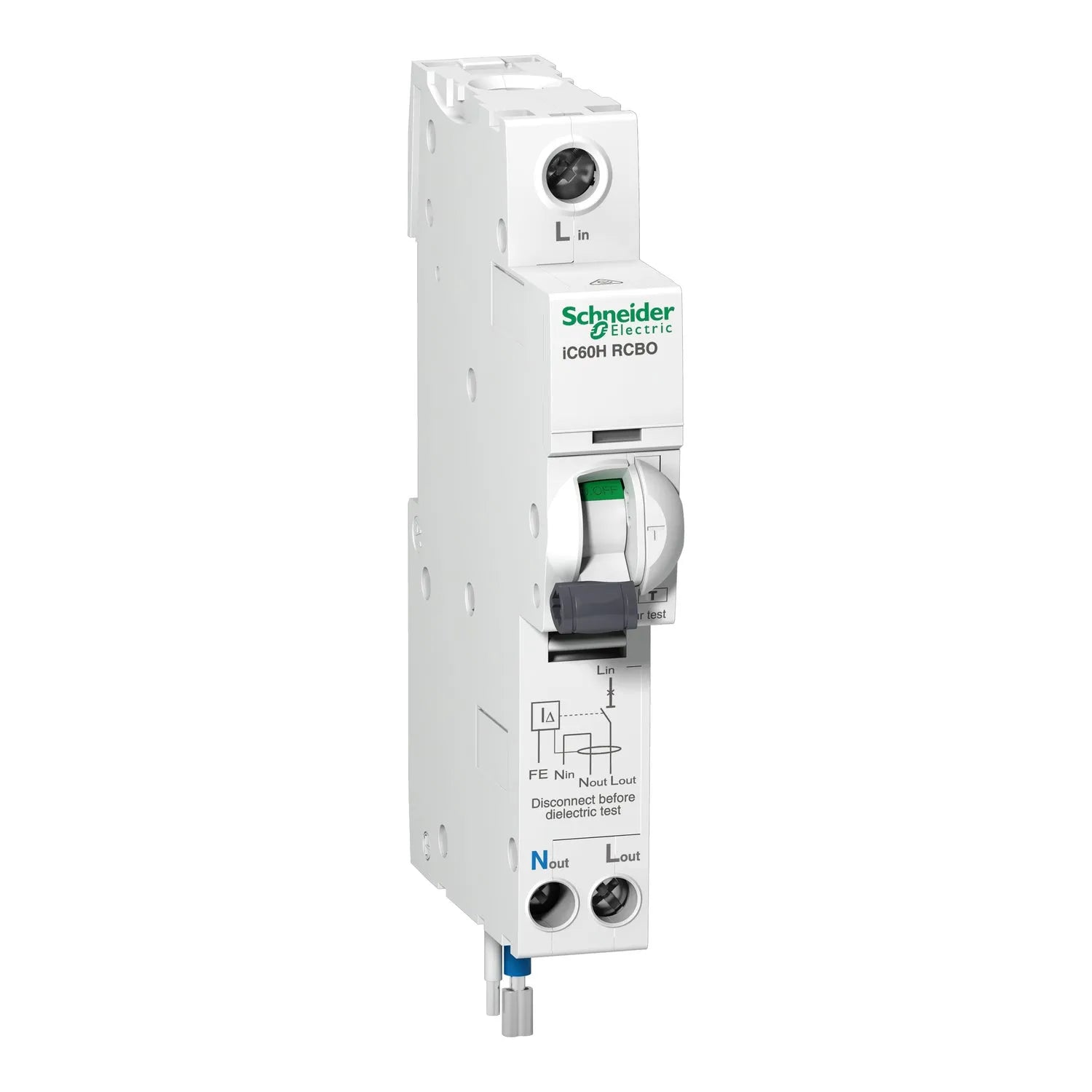

Schneider iC60H Earth Leakage Circuit Breaker price in Pakistan is Rs 12,000/-.
This iID is a modular and reliable residual current circuit breaker (RCCB). It is a 2P circuit breaker with 6A, 10A, 16A, 20A, 25A, 32A, 40A, In-rated current, a sensitivity of 30mA - 300mA with an AC type protection class. This product protects against electrical shock by direct or indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on the front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current i...
