Device application
|
distribution
|
|
product name
|
ic60
|
|
product or component type
|
miniature circuit-breaker
|
|
device short name
|
ic60n
|

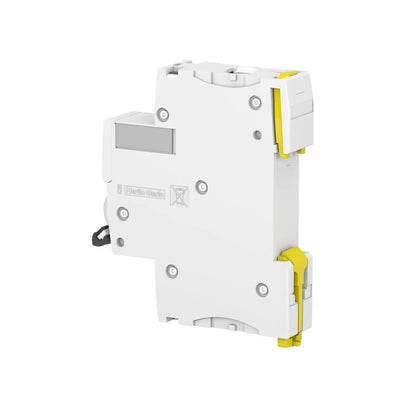

This iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 2A, 4A, 6A, 10A, 16A, 20A, 32A, 40A, 50A and 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA - 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuits against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an el...
