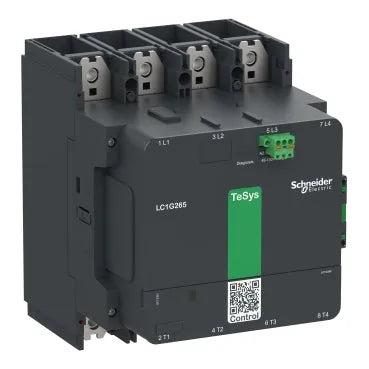

Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil
  • Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil
Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil
Availability: In Stock

Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil

Product SKU: LC1G2654KUEN
Rs.550,000

Safe Delivery

Quick & safe nation wide delivery

Easy Return

Hassle free return within 7 days

100% Original Product

Only genuine products, no compromises.

 WhatsApp Inquiry

Specifications

Series TeSys Giga
Product Type Contactor
Device Short Name LC1G
Poles 4P (4NO)
Rated Operational Voltage ≤1000V AC / ≤460V DC
Rated Current 265A (AC-3), 385A (AC-1)
Control Voltage 100-250V AC/DC
Impulse Withstand Voltage 8kV
Breaking Capacity 2380A at 440V
Short-Time Withstand Current Up to 2.2kA for 10s
Insulation Voltage 1000V
Coil Technology Built-in bidirectional peak limiting
Mechanical Durability Up to 8 million cycles
Operating Time Closing (40-70ms), Opening (15-50ms)
Mounting Plate-mounted
Certifications CB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR (DNV-GL)
Dimensions 225mm (H) × 185mm (W) × 226mm (D)
Net Weight 8.3kg

Key Features

High power motor
Higher work efficiency
Product Details Reviews Shipping & Returns User Manual

Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil


TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 385A @440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 185mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.

Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil
Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil
Looking to purchase Schneider LC1-G2654 TeSys Giga 4 pole (4NO) AC-1 440V 385A AC/DC Coil in bulk?
  • Purchase Item in Bulk Quantity
  • Get At Best Price For Your Business
No reviews yet. Be the first to review this product.

Shipping

We ship across Pakistan. Standard delivery takes 3–7 business days.

Returns

Easy 7-day return policy. Product must be unused and in original packaging.

📄
Download User Manual
Click here to download PDF
