Range
|
tesys
|
|
range of product
|
tesys giga
|
|
product or component type
|
contactor
|
|
device short name
|
lc1g
|

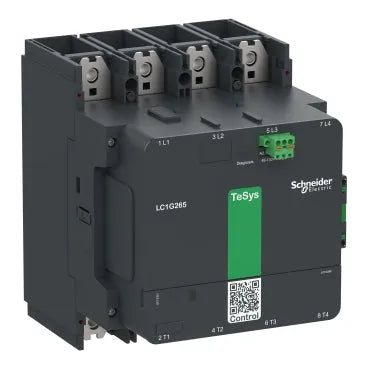

Schneider LC1–G4004 TeSys Giga, price in Pakistan is Rs 115,000/-.
TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 550A @440V. Equipped with 100-250 V AC/DC wide band low consumption electronic coil and embedded highly reliable 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 300 cycles per hour and environments up to 60°C. It’s built with high reliability delivering mechanical durability up to 8 million cycles. Contact Wear Diagnosis (CWD) is a standard function, which continuously monitors and provide feedback through healthy and alarm conditions by an LED indicator. It is possible to replace switching module (main contacts), control module enhancing contactor life with simple maintenance activities. Front accessible main power connections are with bolted connection and control connections by push-in terminals for easy and q...
