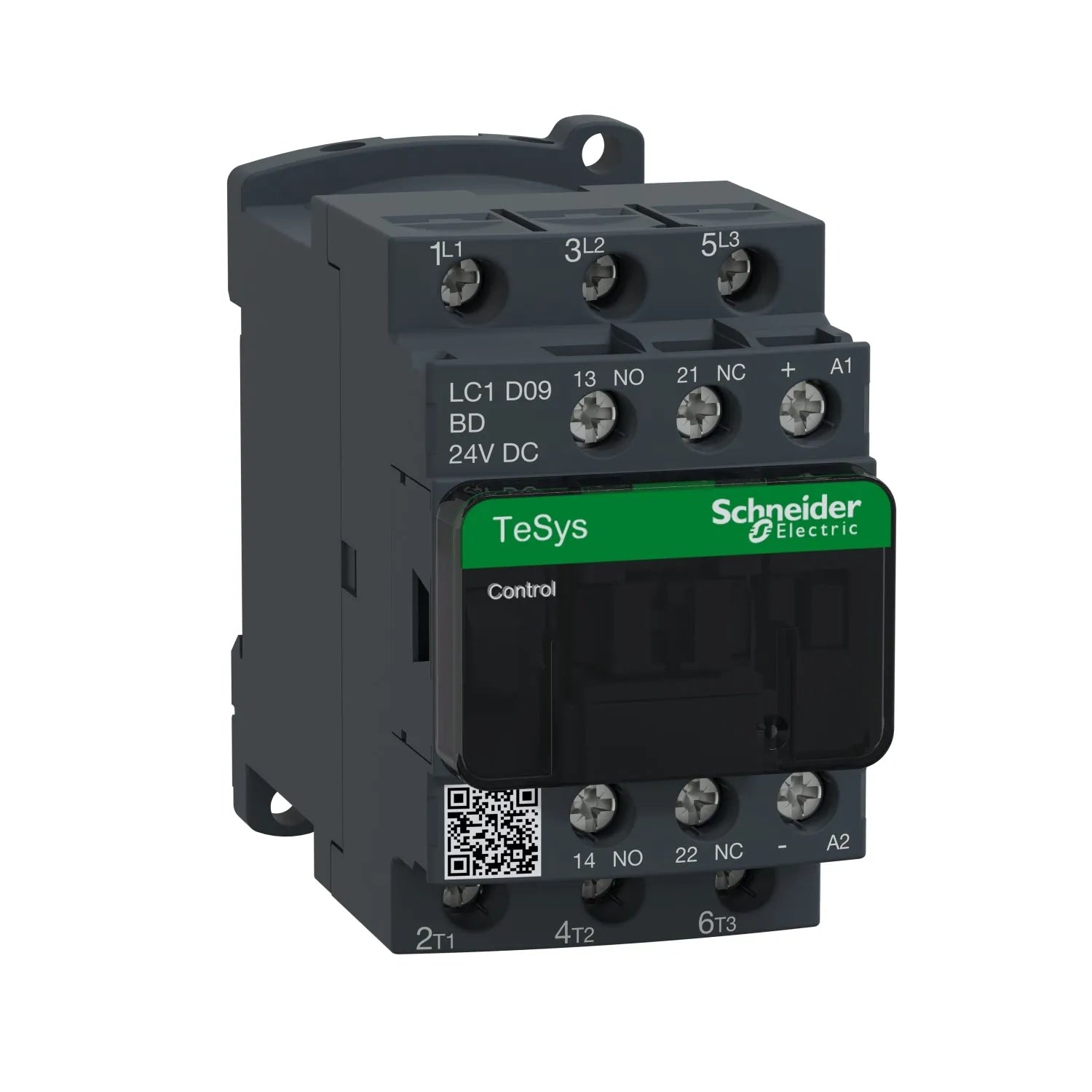

Schneider LC1D09BD 3P 9A Magnetic Contactor price in Pakistan is Rs 13,200/-.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with a transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), and connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
power circuit; <= 690 v ac 25...400 hz / power circuit; <= 300 v dc
rated operational current [ie]
9 a
control circuit voltage [uc]
24 v dc
compatibility code
lc1d
pole contact composition
3 no
contact compatibility
m4
protective cover
with
conventional free air thermal current [ith]
25 a (at 60 °c) for power circuit / 10 a (at 60 °c) for signalling circuit
rated breaking capacity
250 a at 440 v for power circuit conforming to iec 60947
average impedance
2.5 mohm - ith 25 a 50 hz for power circuit
overvoltage category
iii
pollution degree
3
mechanical durability
15 mcycles
control circuit type
dc standard
operating time
53.55...72.45 ms closing / 16...24 ms opening
maximum operating rate
3600 cyc/h 60 °c
auxiliary contact composition
1 no + 1 nc
signalling circuit frequency
25...400 hz
minimum switching voltage
17 v for signalling circuit
minimum switching current
5 ma for signalling circuit
insulation resistance
> 10 mohm for signalling circuit
mounting support
plate rail
operating altitude
0...3000 m
fire resistance
850 °c conforming to iec 60695-2-1
flame retardance
v1 conforming to ul 94
net weight
0.32 kg
Product Details
Schneider LC1D09BD 3P 9A Magnetic Contactor price in Pakistan is Rs 13,200/-.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with a transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), and connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
