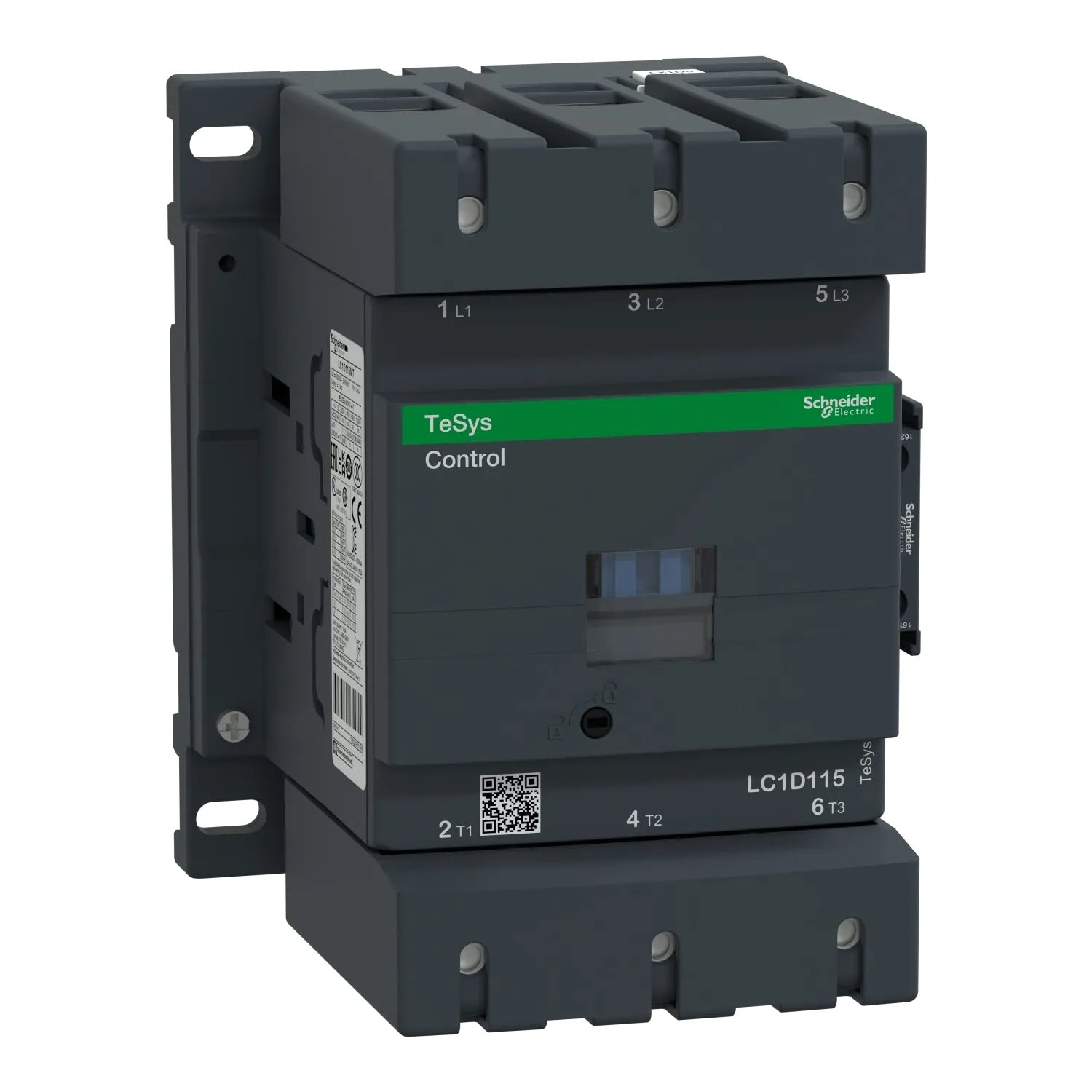

Schneider LC1D115 3P 115A Magnetic Contactor price in Pakistan is Rs 66,000/-.
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
power circuit; <= 1000 v ac 25...400 hz / power circuit; <= 300 v dc
rated operational current [ie]
200 a
control circuit voltage [uc]
220 v ac 50/60 hz
net weight
2.5 kg
compatibility code
lc1d
pole contact composition
3 no
contact compatibility
m13
protective cover
with
conventional free air thermal current [ith]
200 a (at 60 °c) for power circuit
rated breaking capacity
1100 a at 440 v for power circuit conforming to iec 60947
average impedance
0.6 mohm - ith 200 a 50 hz for power circuit
overvoltage category
iii
pollution degree
3
mechanical durability
8 mcycles
control circuit type
ac at 50/60 hz standard
heat dissipation
3…8 w at 50/60 hz
operating time
6...20 ms opening / 20...50 ms closing
auxiliary contact composition
1 no + 1 nc
signalling circuit frequency
25...400 hz
minimum switching voltage
17 v for signalling circuit
minimum switching current
5 ma for signalling circuit
insulation resistance
> 10 mohm for signalling circuit
mounting support
plate rail
operating altitude
0...3000 m
fire resistance
850 °c conforming to iec 60695-2-1
flame retardance
v1 conforming to ul 94
Product Details
Schneider LC1D115 3P 115A Magnetic Contactor price in Pakistan is Rs 66,000/-.
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 115A/1000V AC-3 (55kW@400V). It provides a 220V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror certified), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 2400 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
